General Diagnostics: Inspection

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

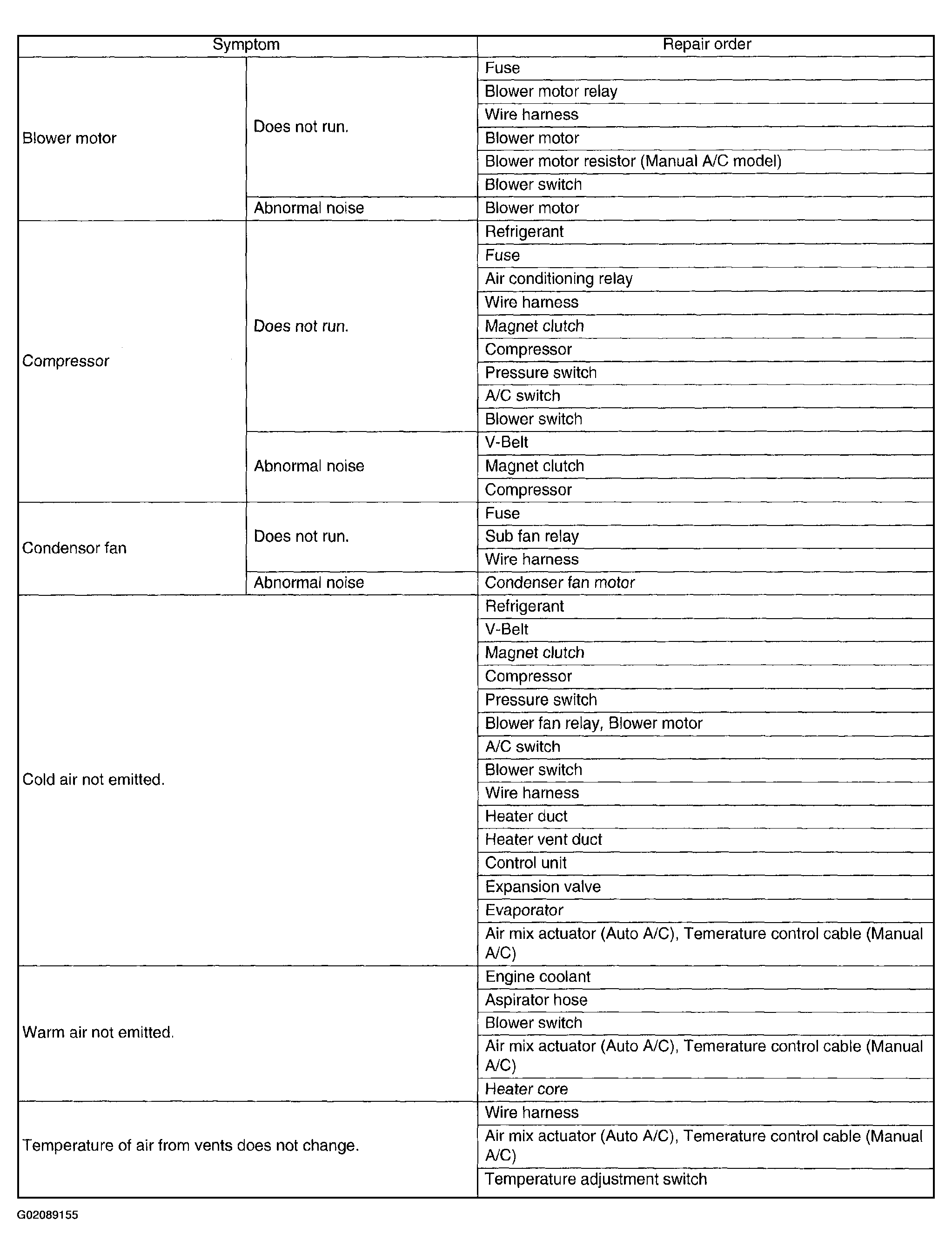

Fig 1: General Diagnostics Inspection Chart (1 Of 2)
G02089155Courtesy of SUBARU OF AMERICA, INC.

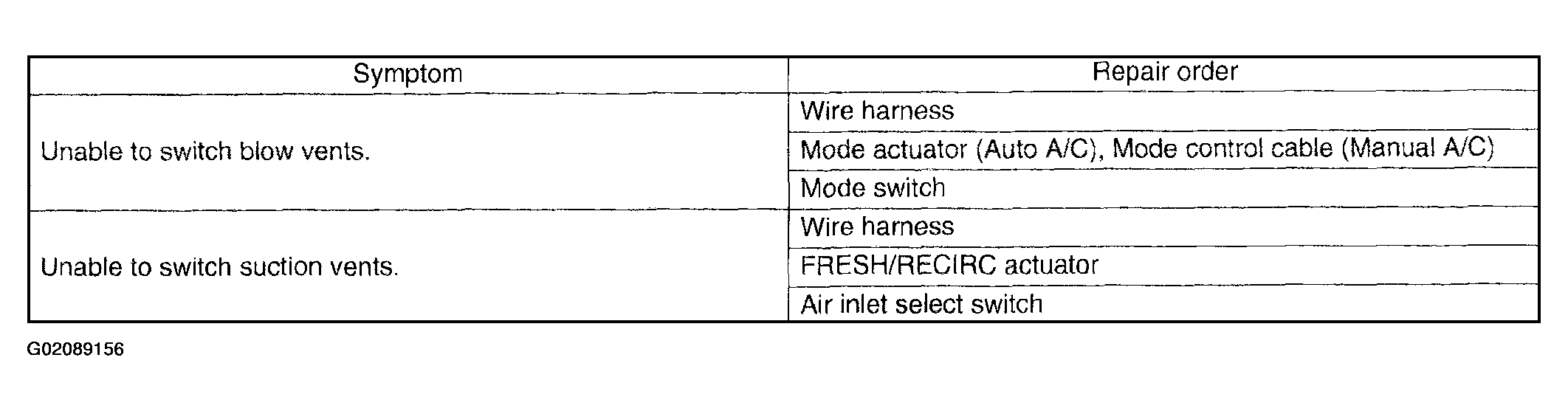

Fig 2: General Diagnostics Inspection Chart (2 Of 2)
G02089156Courtesy of SUBARU OF AMERICA, INC.
