WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
AUTO A/C MODEL

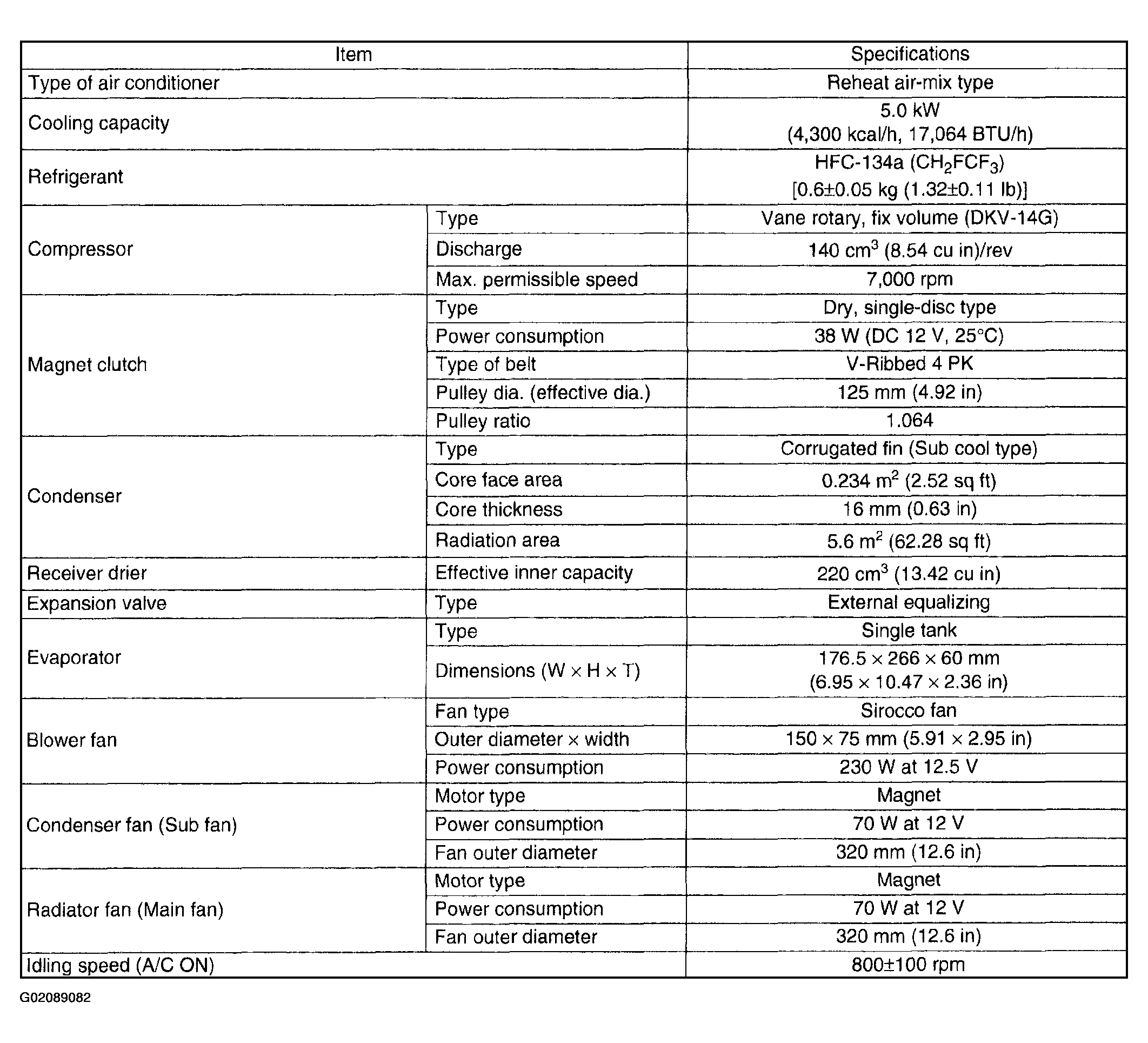

Fig 1: A/C System Specifications Chart (Auto A/C Model - 1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

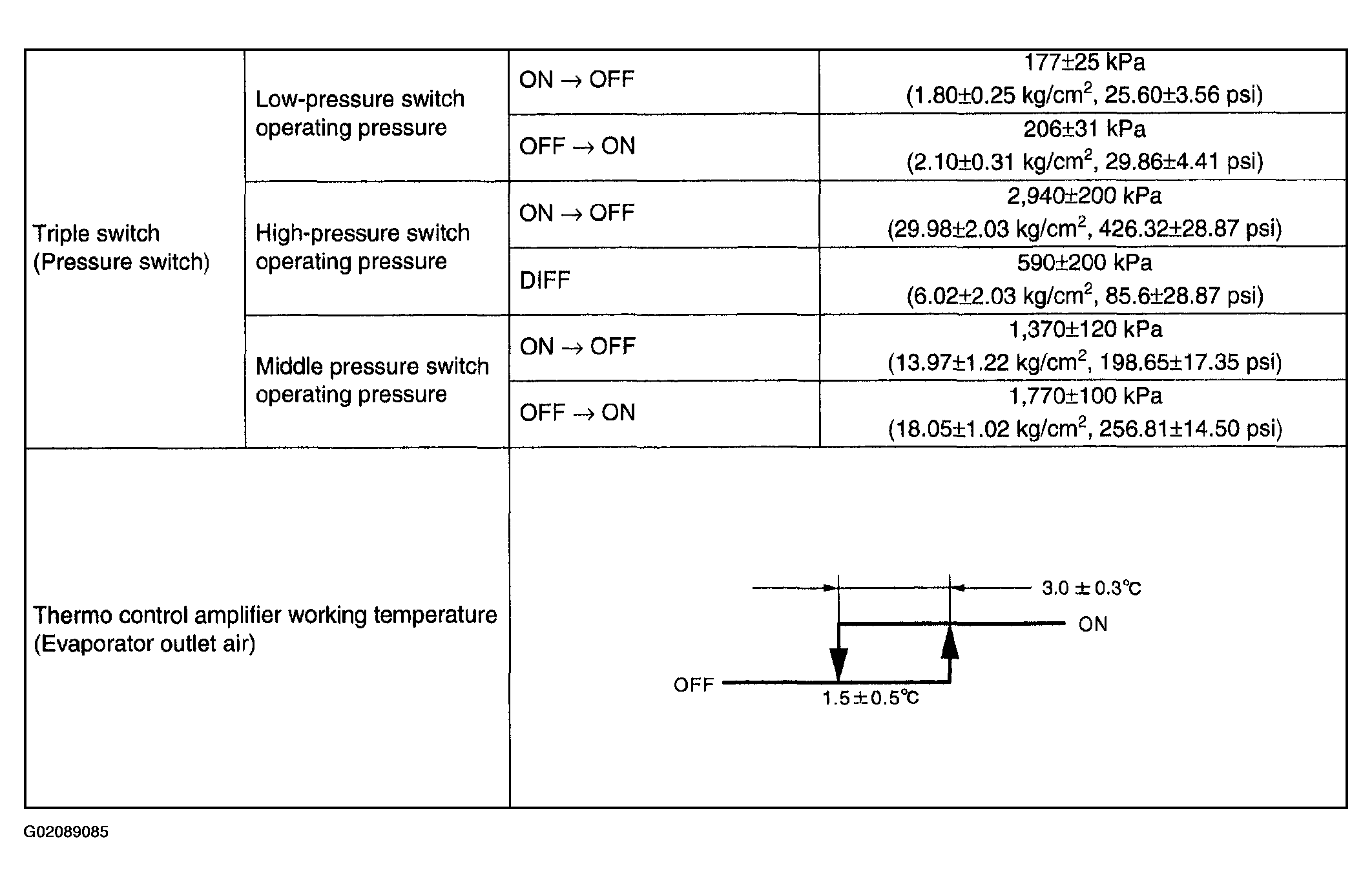

Fig 2: A/C System Specifications Chart (Auto A/C Model - 2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
MANUAL A/C MODEL

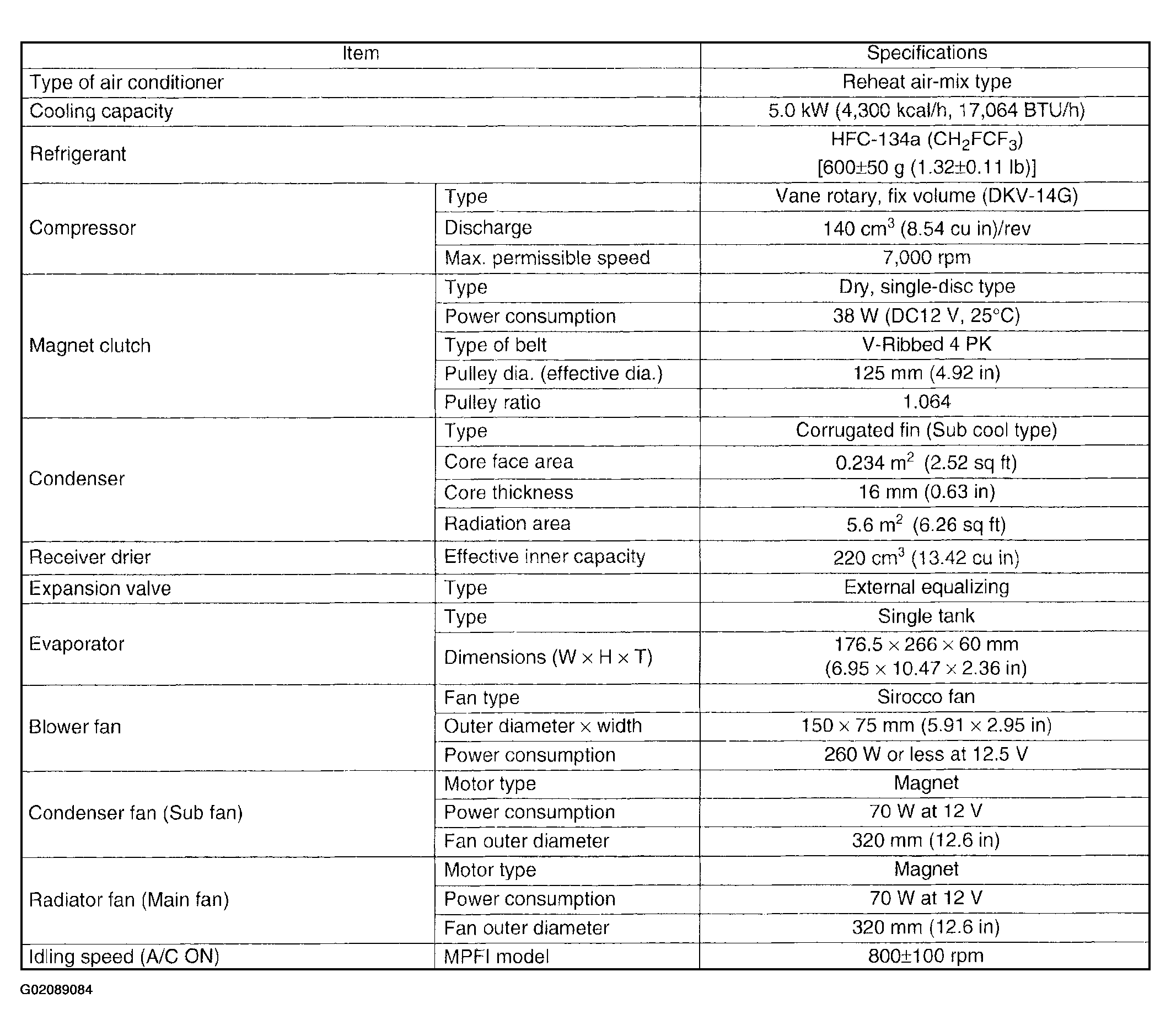

Fig 3: A/C System Specifications Chart (Manual A/C Model - 1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

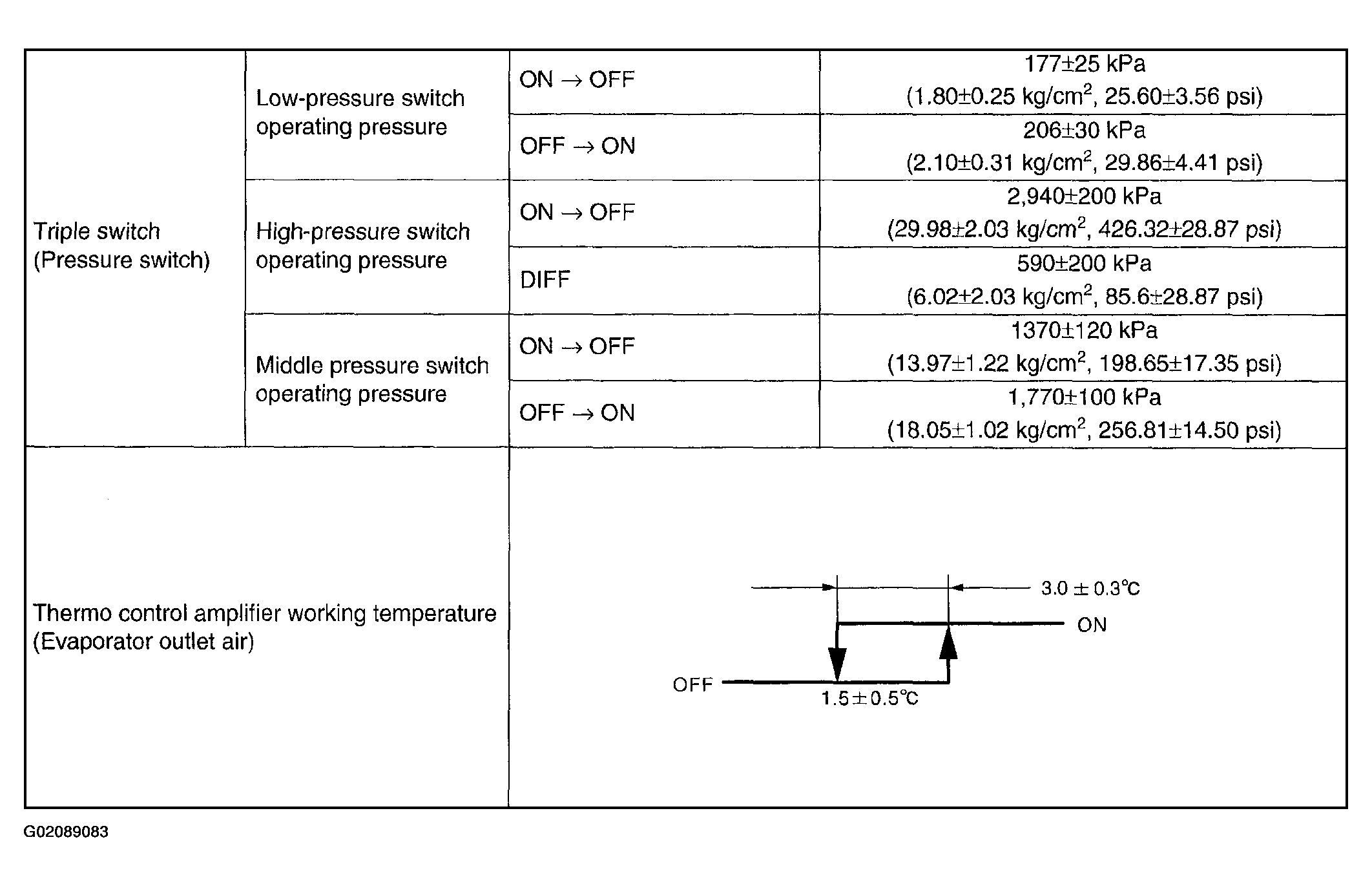

Fig 4: A/C System Specifications Chart (Manual A/C Model - 2 Of 2)
