Heater Cooling Unit

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

AUTO A/C MODEL

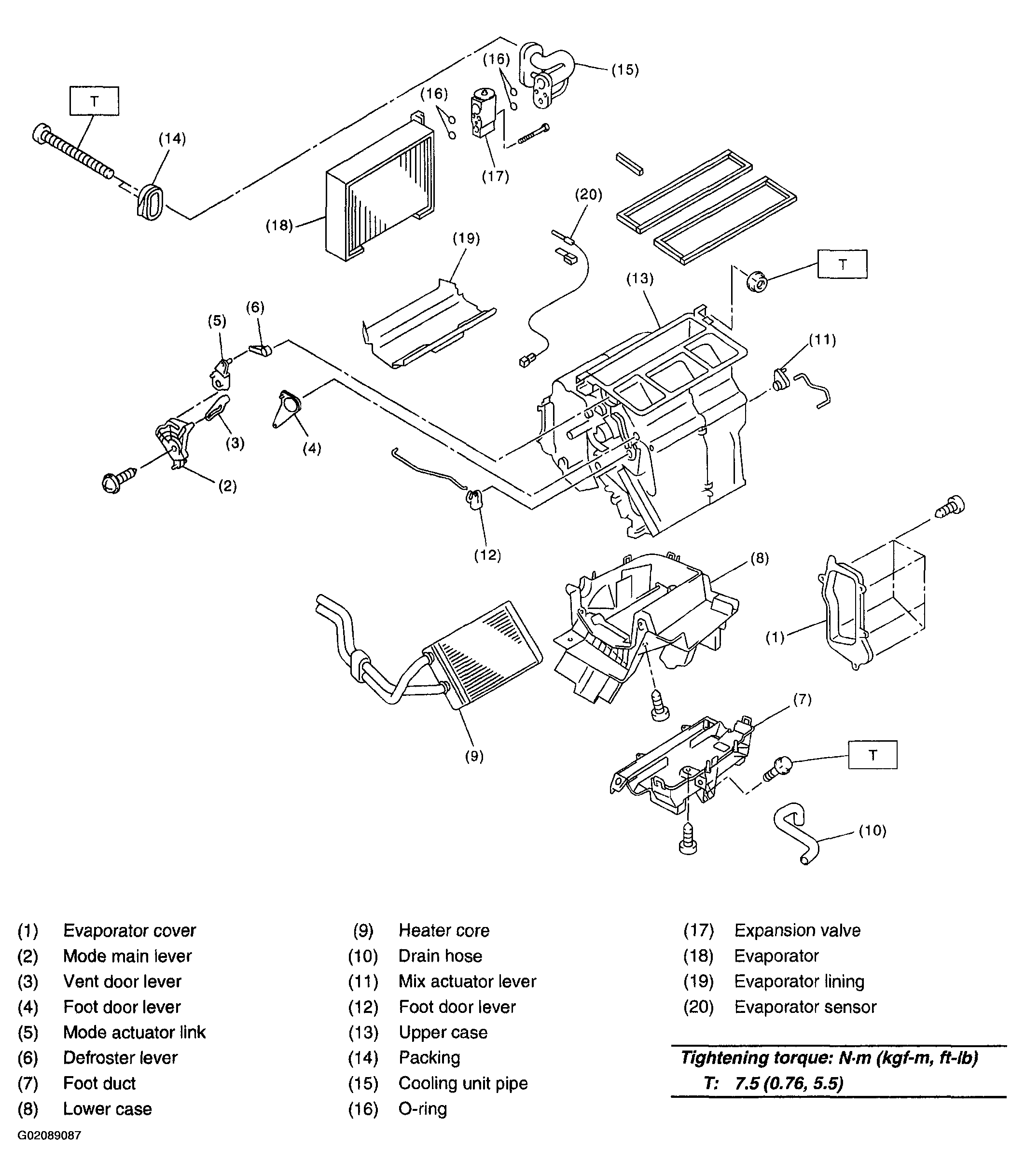

Fig 1: Identifying Heater Cooling Unit Components (Auto A/C Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)
1. T: 7.5 (0.76, 5.5)
MANUAL A/C MODEL

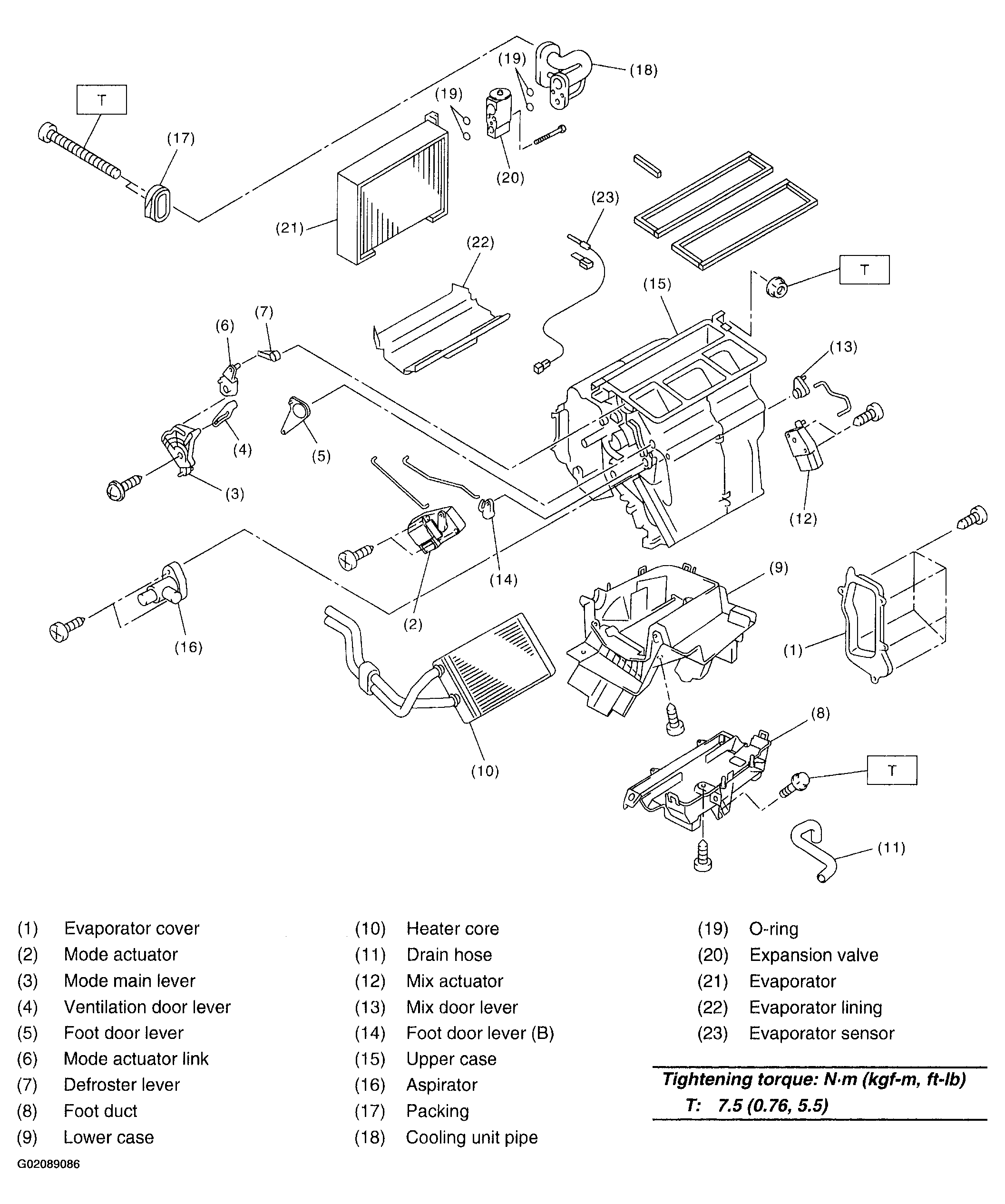

Fig 2: Identifying Heater Cooling Unit Components (Manual A/C Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf.m, ft-lb)
1. T: 7.5 (0.76, 5.5)
