Air Conditioning Unit

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

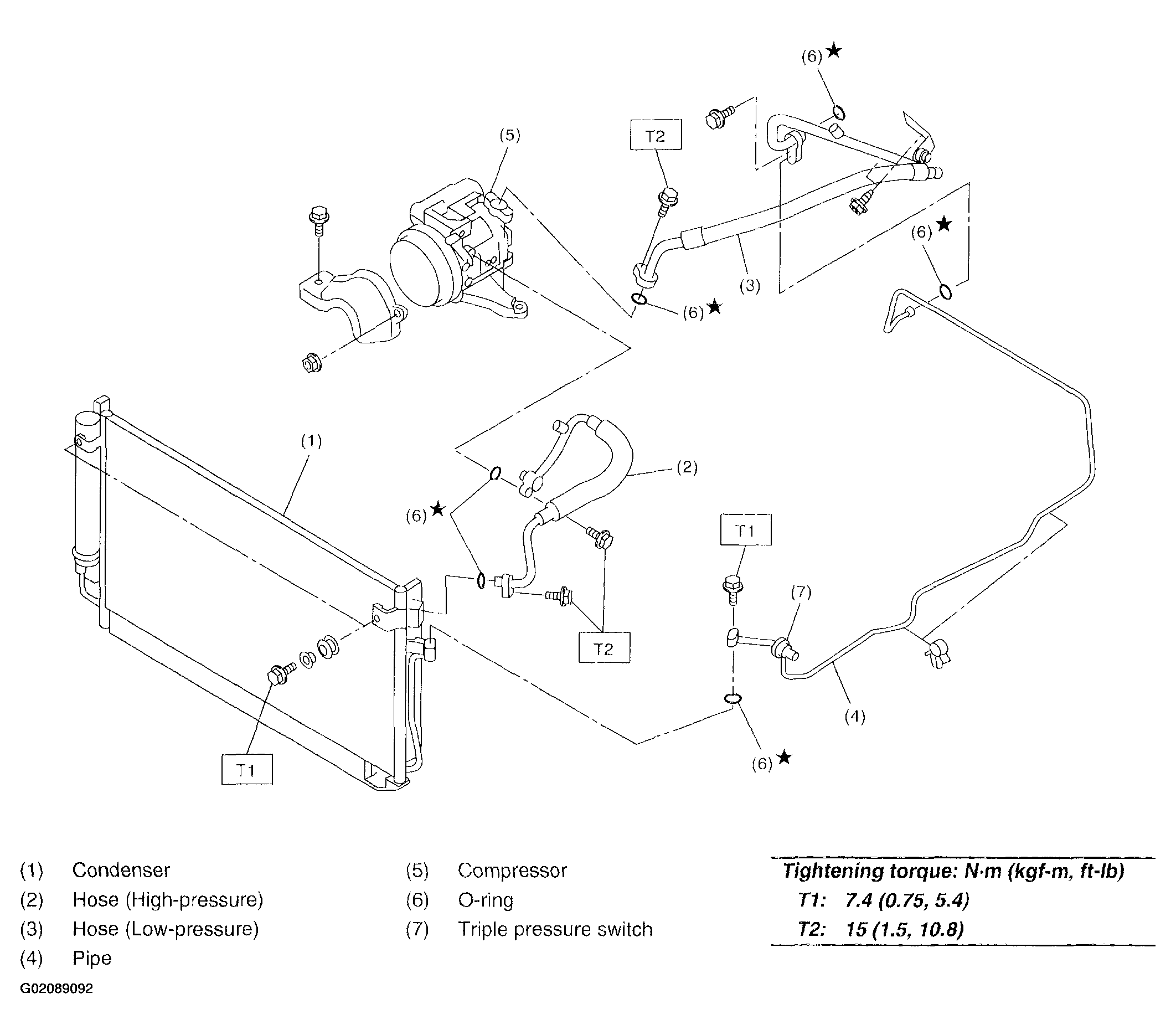

Fig 1: Identifying Air Conditioning Unit Components
G02089092Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

  1. T1:  7.4 (0.75, 5.4)
  2. T2:  15 (1.5, 10.8)
