Magnetic Clutch Operation
WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

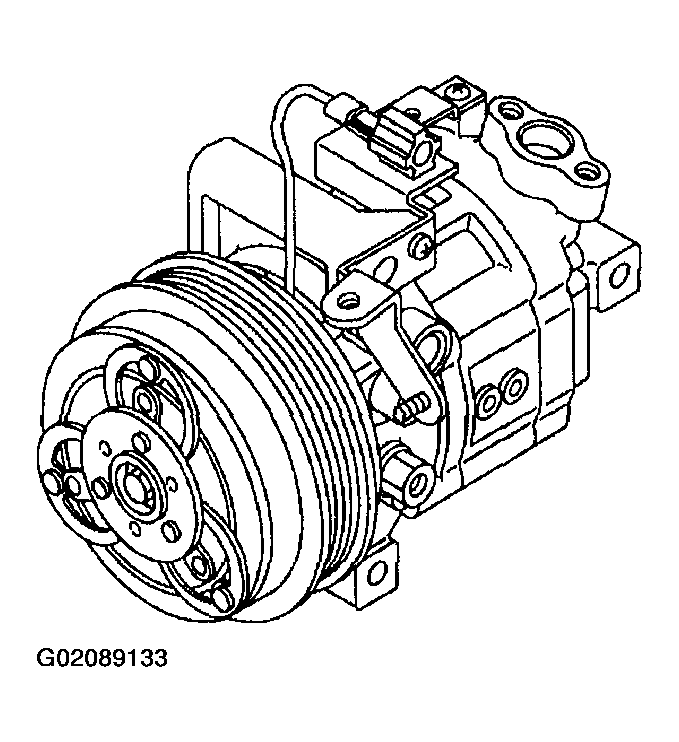

- Disconnect the compressor connector.
- Connect the battery positive (+) terminal to the No. 3 terminal of the compressor connector.
Courtesy of SUBARU OF AMERICA, INC.
- Make sure the magnet clutch engages. If NG, replace the compressor.
