Blower Resistor (Manual A/C Model): Removal

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Remove the glove box. Refer to REMOVAL , Glove Box.
Disconnect the blower resistor connector.
Loosen the two screws to remove blower resistor.

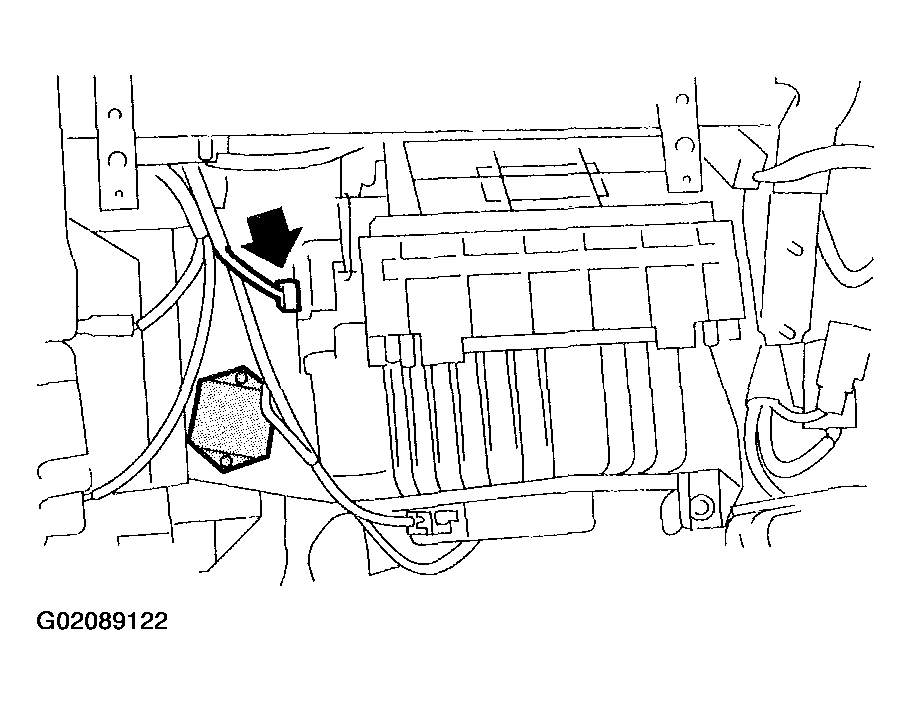

Fig 1: Removing Blower Resistor (Manual A/C Model)
Courtesy of SUBARU OF AMERICA, INC.
