Blower Resistor (Manual A/C Model): Inspection

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

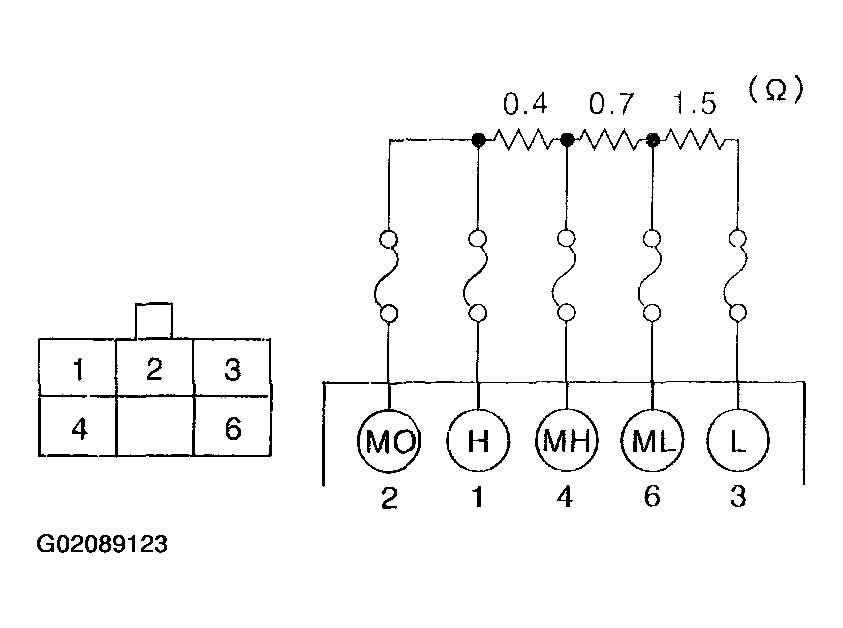

Fig 1: Measuring Blower Resistor Resistance

Courtesy of SUBARU OF AMERICA, INC.

Measure the blower resistor resistance.

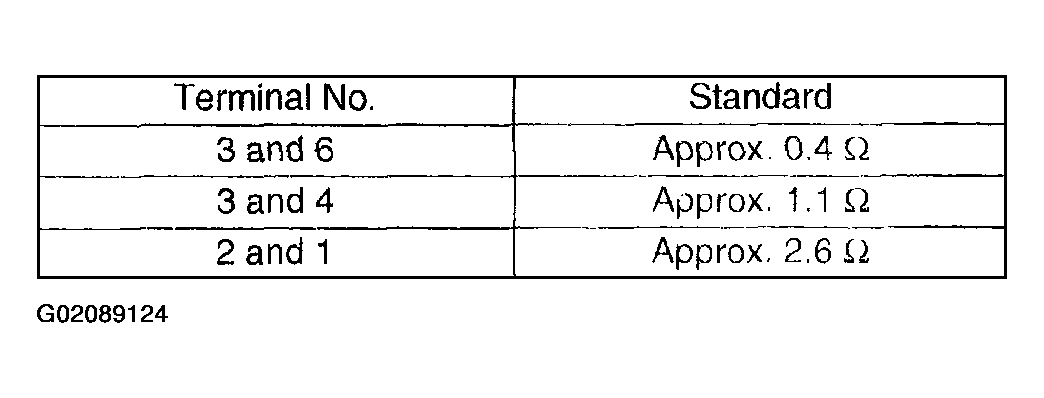

Fig 2: Blower Resistor Resistance Chart

Courtesy of SUBARU OF AMERICA, INC.

If NG, replace the blower resistor.
