Tilt Steering Column: Installation

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the grommet to toe board.

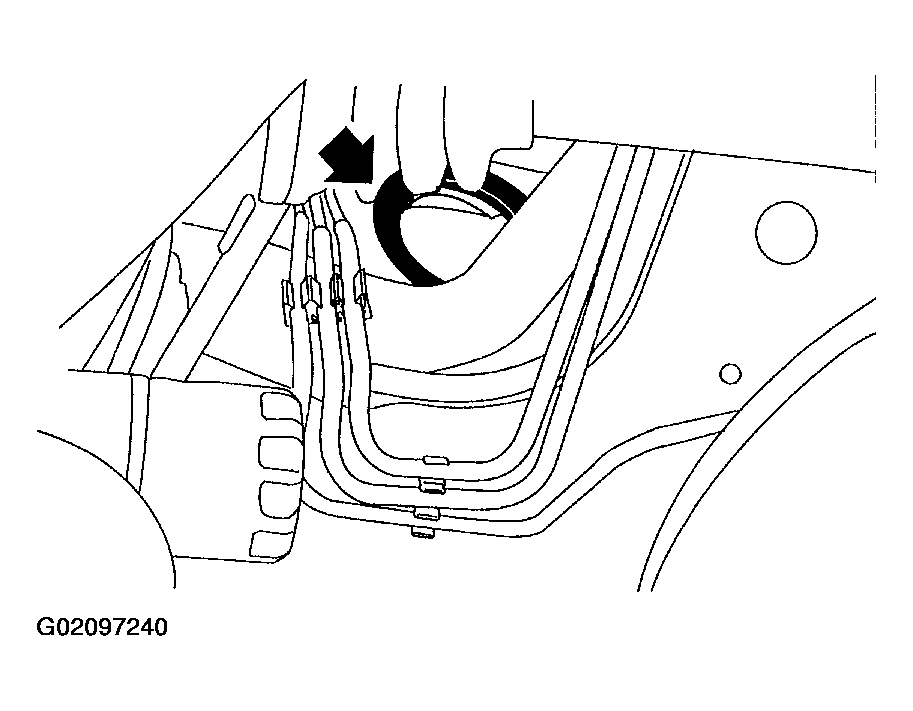

    Fig 1: Setting Grommet To Toe Board
    G02097240Courtesy of SUBARU OF AMERICA, INC.
  2. Insert the end of steering shaft into toe board grommet.
  3. Tighten the steering shaft mounting bolts under instrument panel.
    1. Tightening torque:  25 N.m (2.5 kgf-m, 18.1 ft-lb)
  4. Connect all connectors under instrument panel.
  5. Connect the airbag system connector at harness spool.
    NOTE: Make sure to apply double lock.
  6. Install the lower column cover with tilt lever held in the lowered position.
  7. Install the universal joint. Refer to INSTALLATION  , Universal Joint.
  8. Align center of roll connector. Refer to AIR BAG RESTRAINT SYSTEMS .
  9. Install the steering wheel. Refer to INSTALLATION  , Steering Wheel.
    CAUTION: Insert the roll connector guide pin into guide hole on lower end of surface of steering wheel to prevent damage.
  10. Install the airbag module to steering wheel.
    WARNING: Always refer to AIR BAG RESTRAINT SYSTEMS before performing the service operation. .
