Valve Rocker Assembly: Installation

  1. Installation of valve rocker assembly
    1. Temporarily tighten bolts (a) through (d) equally as shown in figure.
      CAUTION: Do not allow valve rocker assembly to gouge knock pins.
    2. Tighten bolts (e) through (h) to specified torque.
    3. Tighten bolts (a) through (d) to specified torque.

    Tightening torque:  25 N.m (2.5 kgf-m, 18.1 ft-lb)

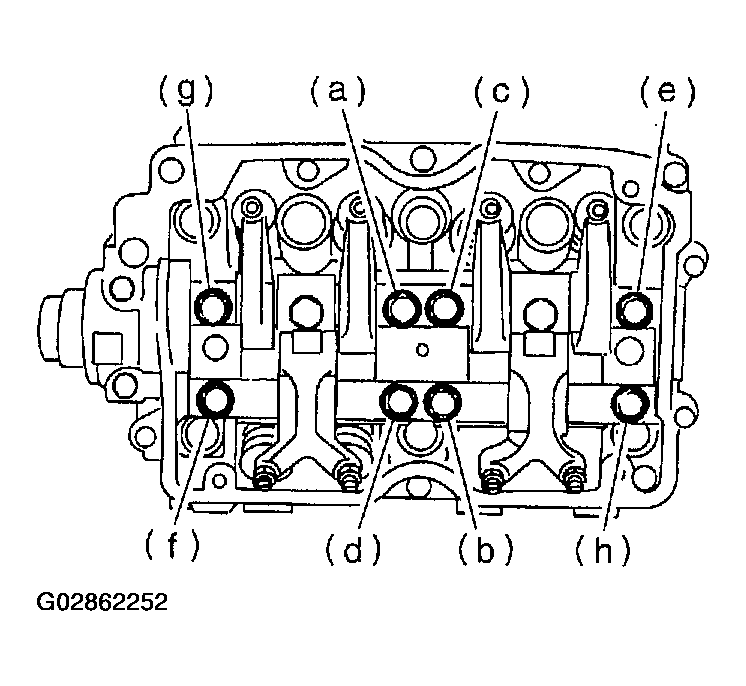

    Fig 1: Tightening Bolts In Sequence
    G02862252Courtesy of SUBARU OF AMERICA, INC.
  2. Adjust the valve clearances. Refer to ADJUSTMENT under VALVE CLEARANCE .
  3. Install rocker cover and connect PCV hose.
  4. Install camshaft sprocket. Refer to INSTALLATION under CAMSHAFT SPROCKET .
  5. Install timing belt assembly. Refer to INSTALLATION under TIMING BELT ASSEMBLY .
  6. Install belt cover. Refer to INSTALLATION under BELT COVER .
  7. Install crankshaft pulley. Refer to INSTALLATION under CRANKSHAFT PULLEY .
  8. Install V-belt. Refer to INSTALLATION under V-BELT .
