Engine Assembly: Removal

Set the vehicle on lift arms.
Open front hood fully and support with stay.
Release fuel pressure. Refer to RELEASING OF FUEL PRESSURE .
Remove filler cap.
Disconnect battery ground cable.

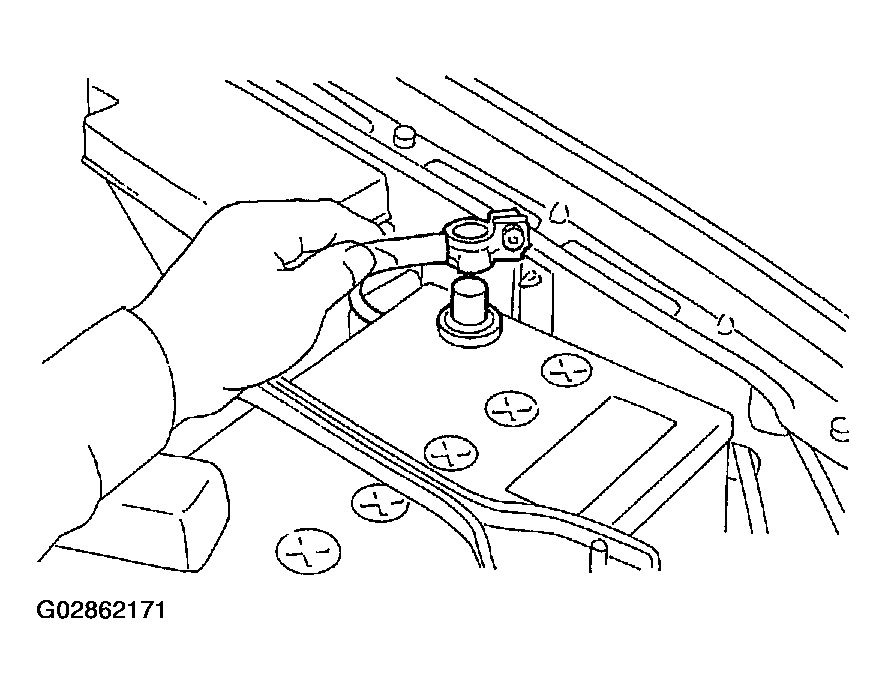

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove air intake duct and air cleaner case. Refer to REMOVAL under AIR INTAKE DUCT and REMOVAL under AIR CLEANER CASE .
Remove under cover.
Remove radiator from vehicle. Refer to REMOVAL under RADIATOR .
Remove ATF cooler pipe from cylinder head. Refer to REMOVAL under ATF COOLER PIPE AND HOSE .
Collect refrigerant, and remove pressure hoses.
1. Place and connect the attachment hose to the refrigerant recycle system.
2. Collect refrigerant from A/C system.
3. Disconnect A/C pressure hoses from A/C compressor.

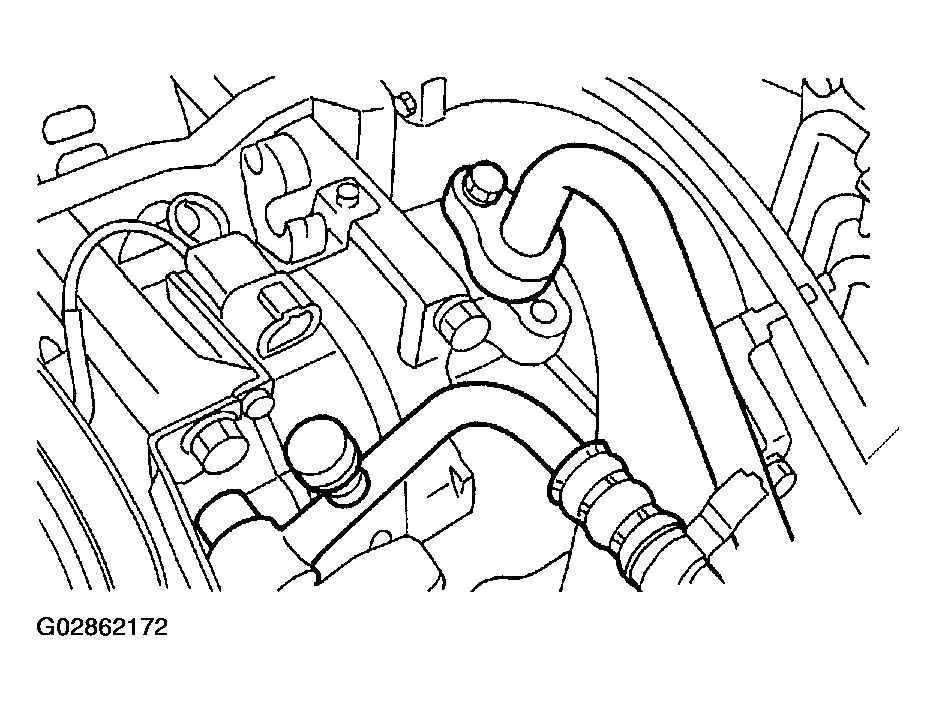

Fig 2: Disconnecting A/C Pressure Hoses
Courtesy of SUBARU OF AMERICA, INC.
Remove air cleaner case stay.
- MT model

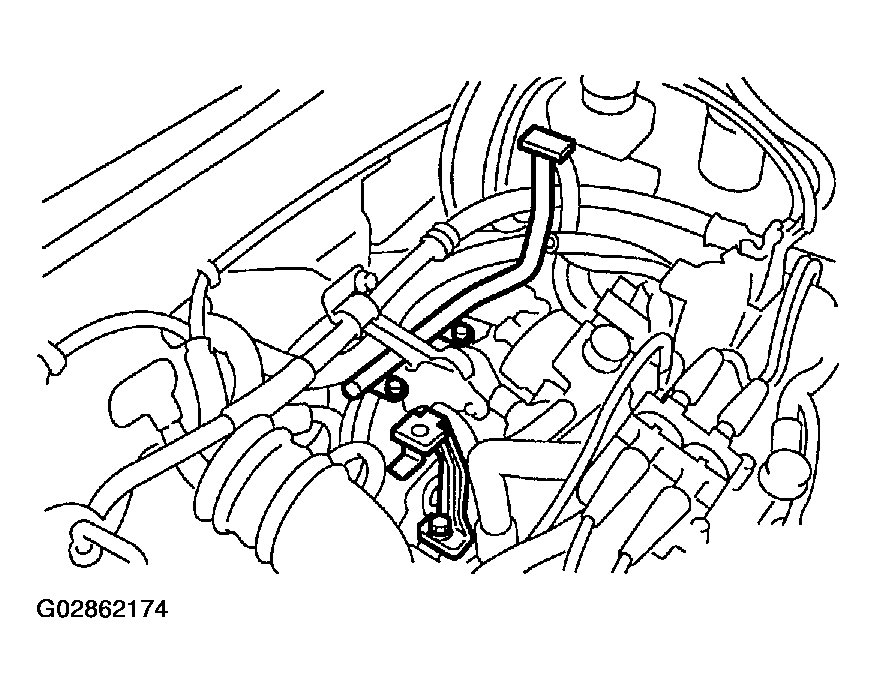

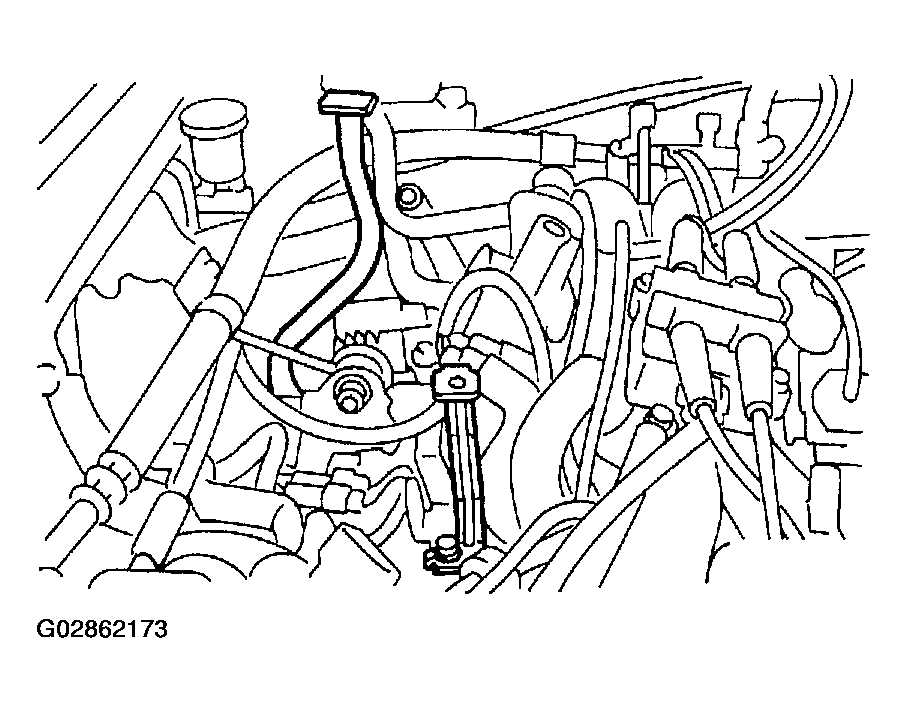

  Fig 3: Removing Air Cleaner Case Stay (MT Model)
  Courtesy of SUBARU OF AMERICA, INC.
- AT model

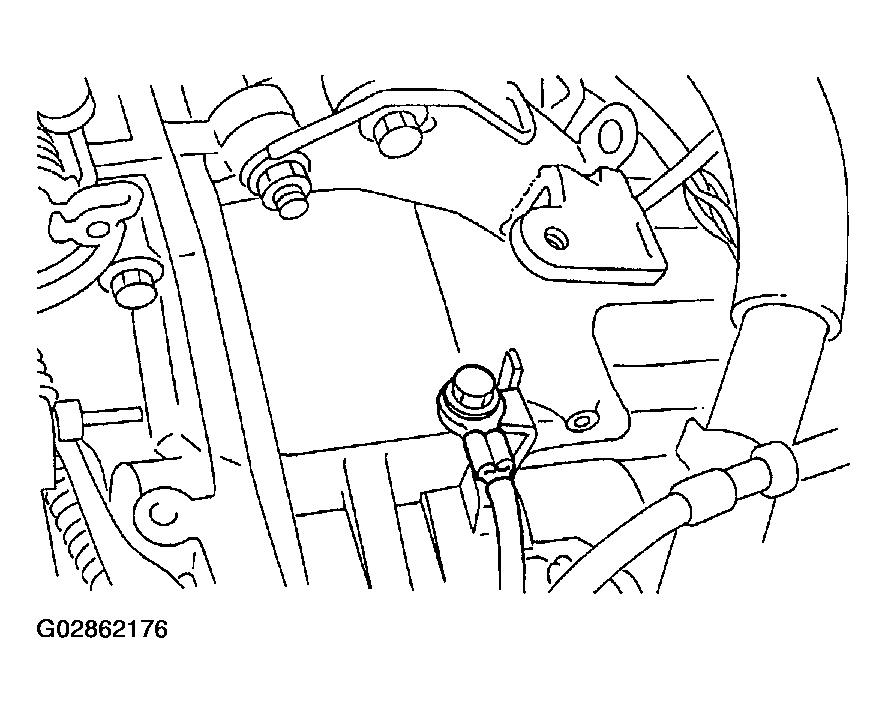

Fig 4: Removing Air Cleaner Case Stay (AT Model)
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the following connectors and cables.
1. Front oxygen (A/F) sensor connector

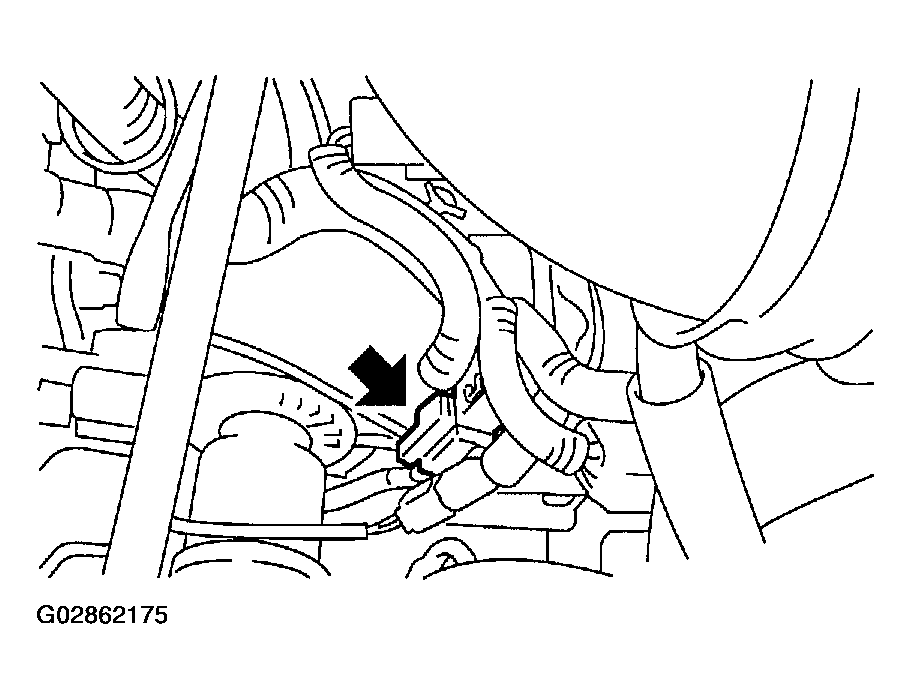

  Fig 5: Disconnecting Front Oxygen (A/F) Sensor Connector
  Courtesy of SUBARU OF AMERICA, INC.
2. Engine ground cable

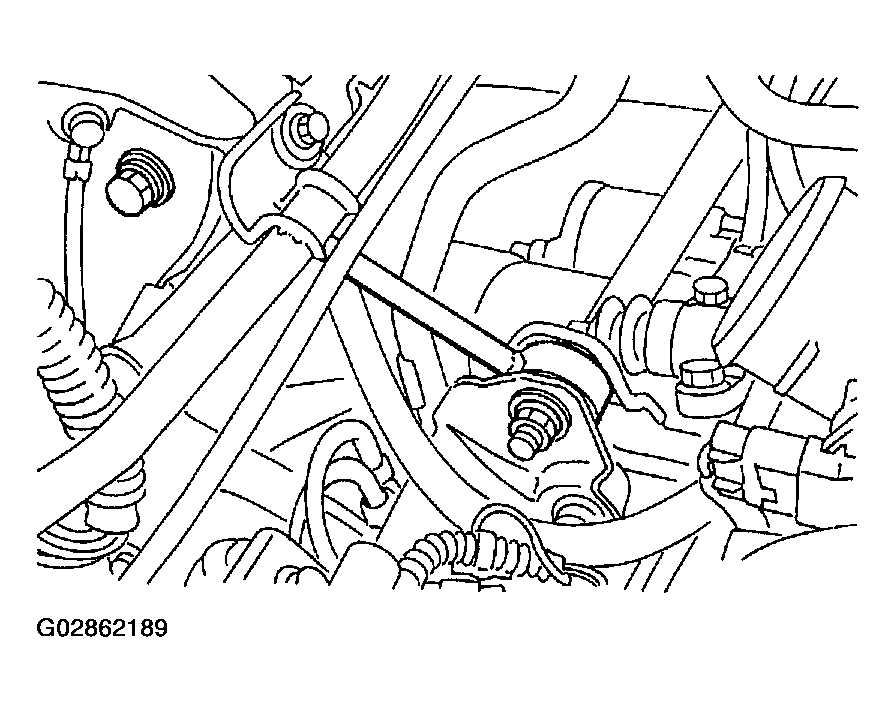

  Fig 6: Disconnecting Engine Ground Cable
  Courtesy of SUBARU OF AMERICA, INC.
3. Engine harness connectors

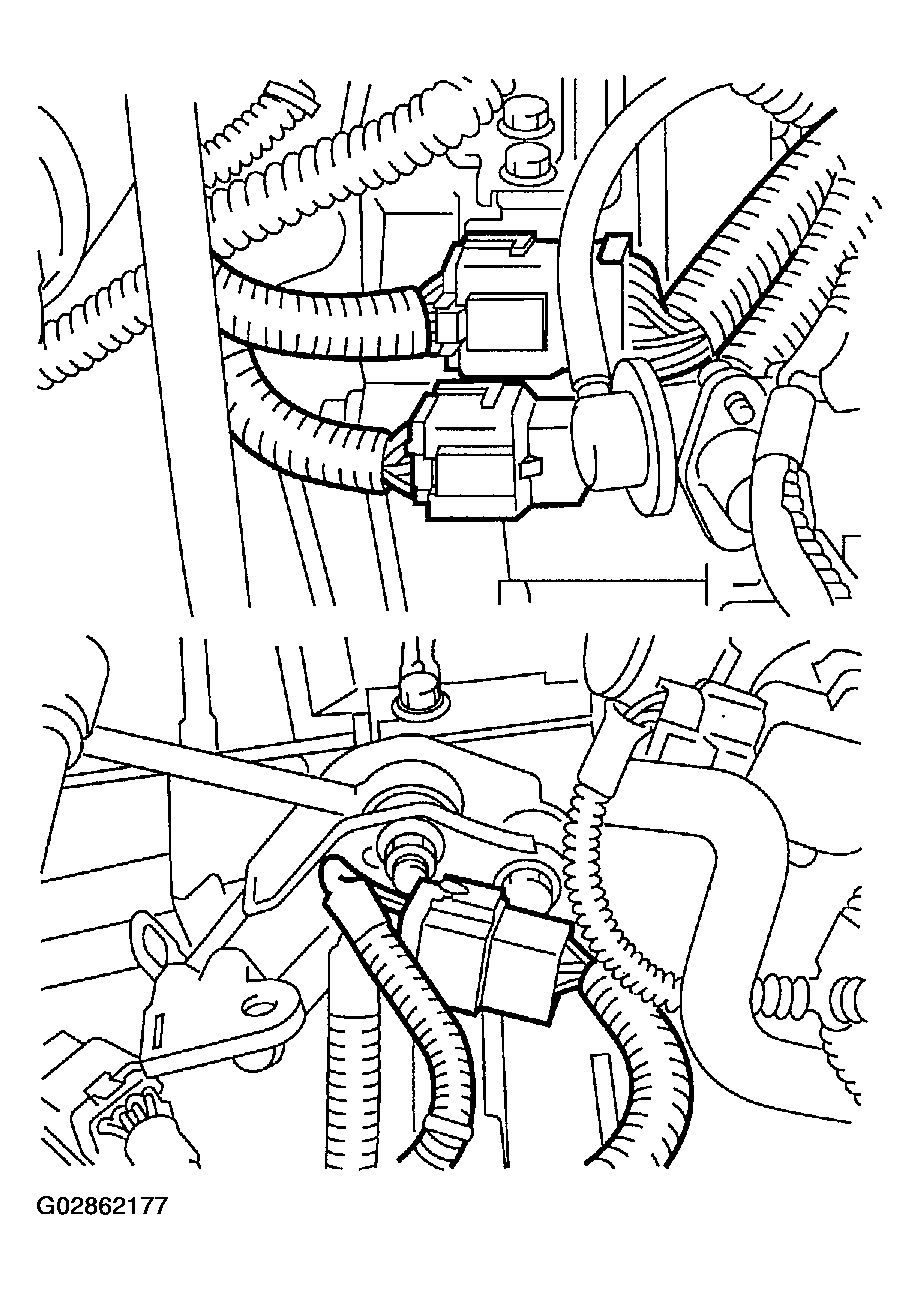

  Fig 7: Disconnecting Engine Harness Connectors
  Courtesy of SUBARU OF AMERICA, INC.
4. Generator connector, terminal and A/C compressor connector

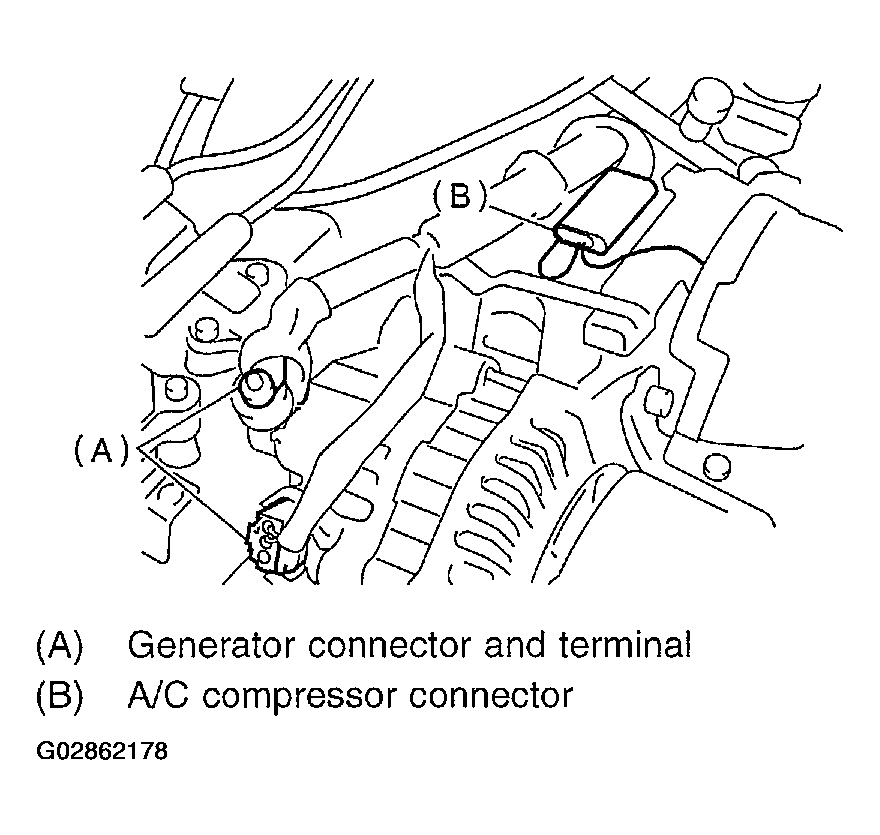

  Fig 8: Disconnecting Generator Connector
  Courtesy of SUBARU OF AMERICA, INC.
  1. Generator connector and terminal
  2. A/C compressor connector
5. Accelerator cable and cruise control cable

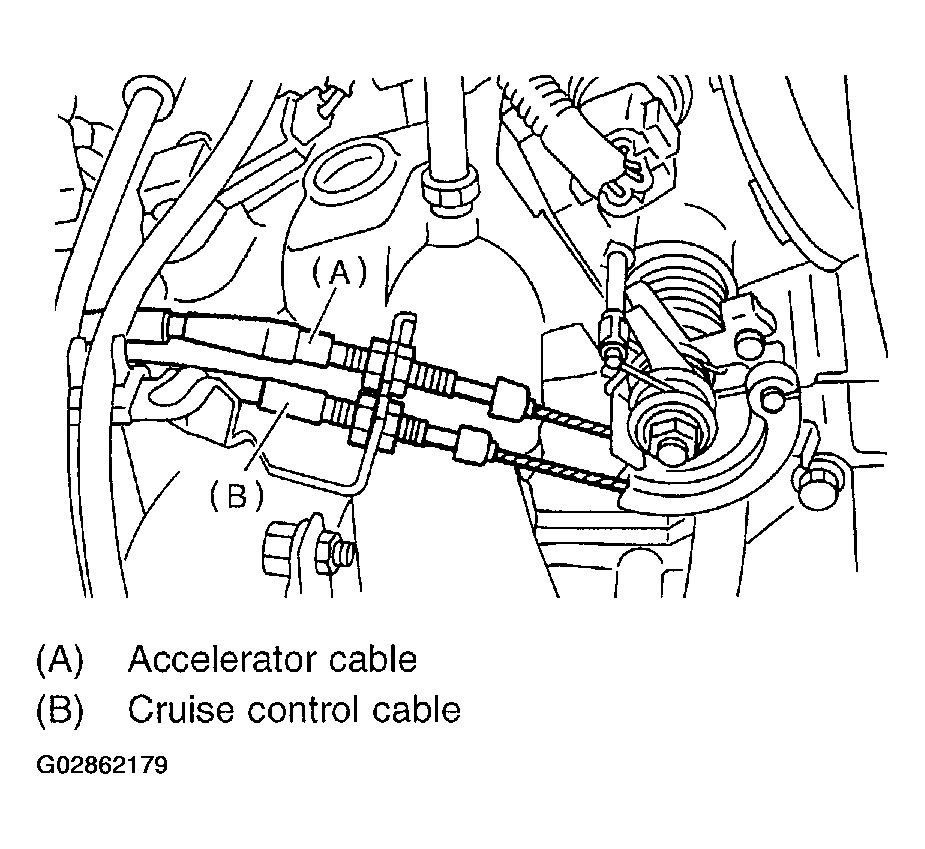

  Fig 9: Disconnecting Accelerator Cable And Cruise Control Cable
  Courtesy of SUBARU OF AMERICA, INC.
  1. Accelerator cable
  2. Cruise control cable
6. Pressure switch

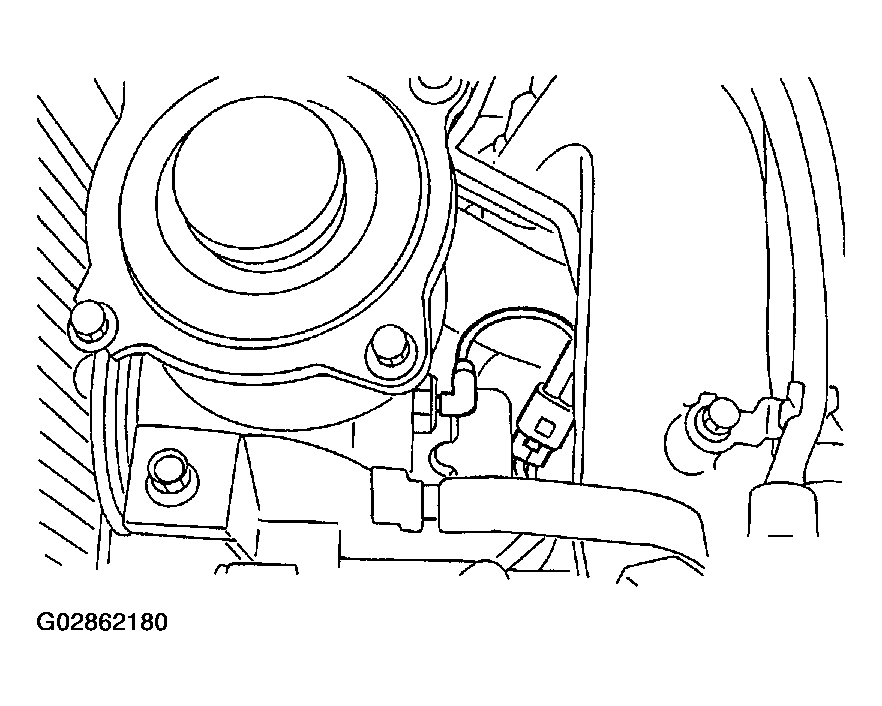

Fig 10: Disconnecting Pressure Switch
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the following hoses.
1. Brake booster vacuum hose

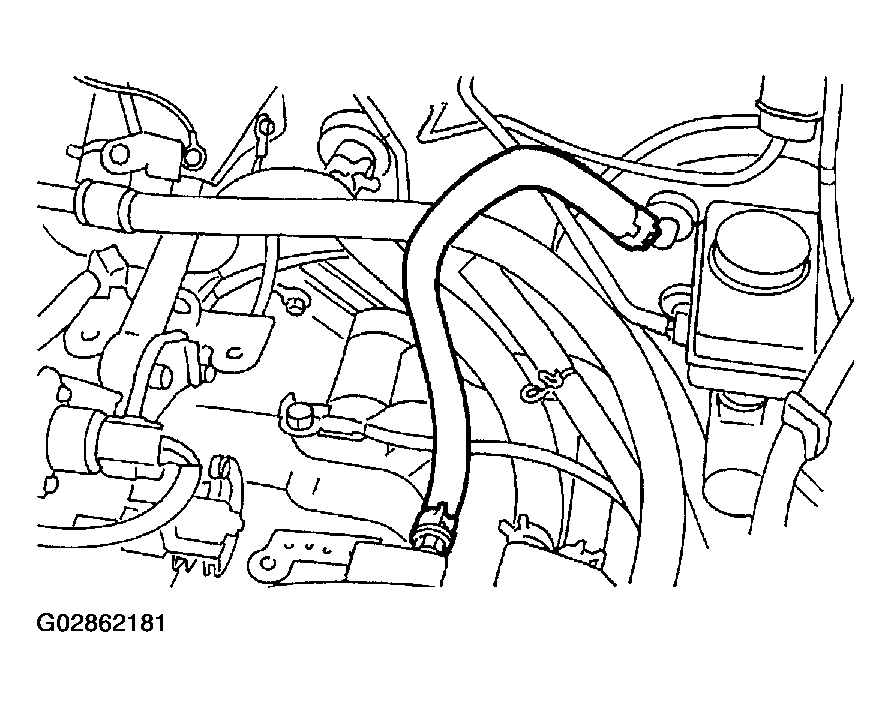

  Fig 11: Disconnecting Brake Booster Vacuum Hose
  Courtesy of SUBARU OF AMERICA, INC.
2. Heater inlet outlet hose

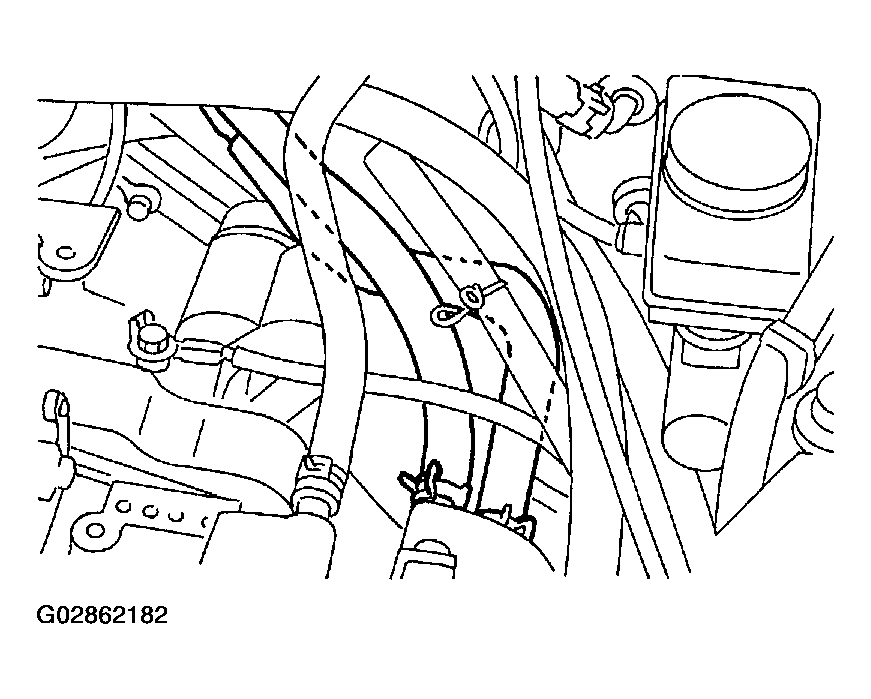

Fig 12: Disconnecting Heater Inlet Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove power steering pump from bracket.
1. Remove resonator chamber.
2. Loosen lock bolt and slider bolt, and remove front side V-belt. Refer to REMOVAL under FRONT SIDE V-BELT under V-BELT .
3. Remove pipe with bracket from intake manifold.

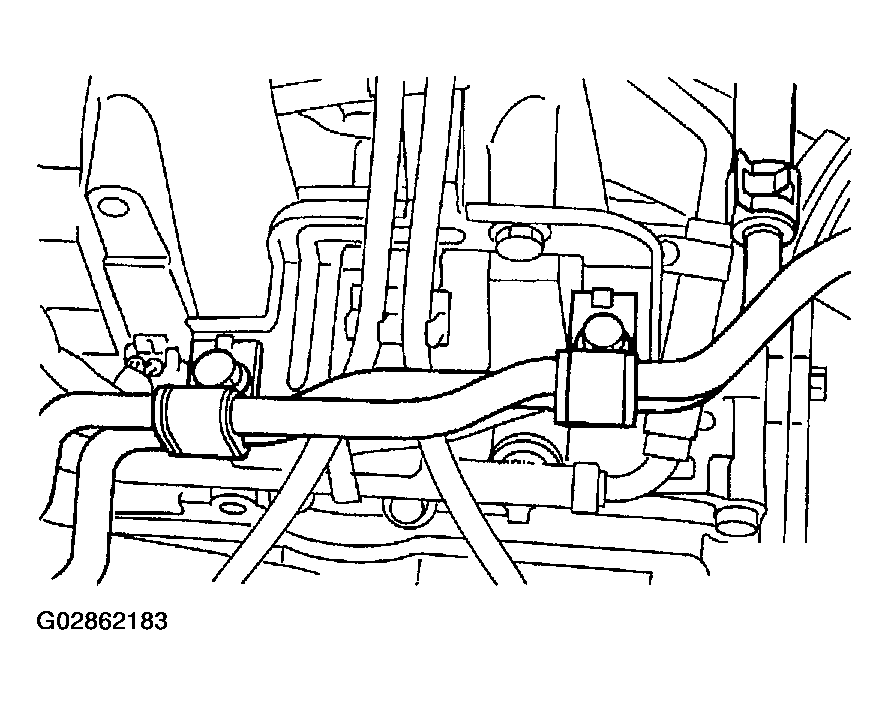

  Fig 13: Removing Pipe With Bracket
  Courtesy of SUBARU OF AMERICA, INC.
4. Remove bolts which install power steering pump from bracket.

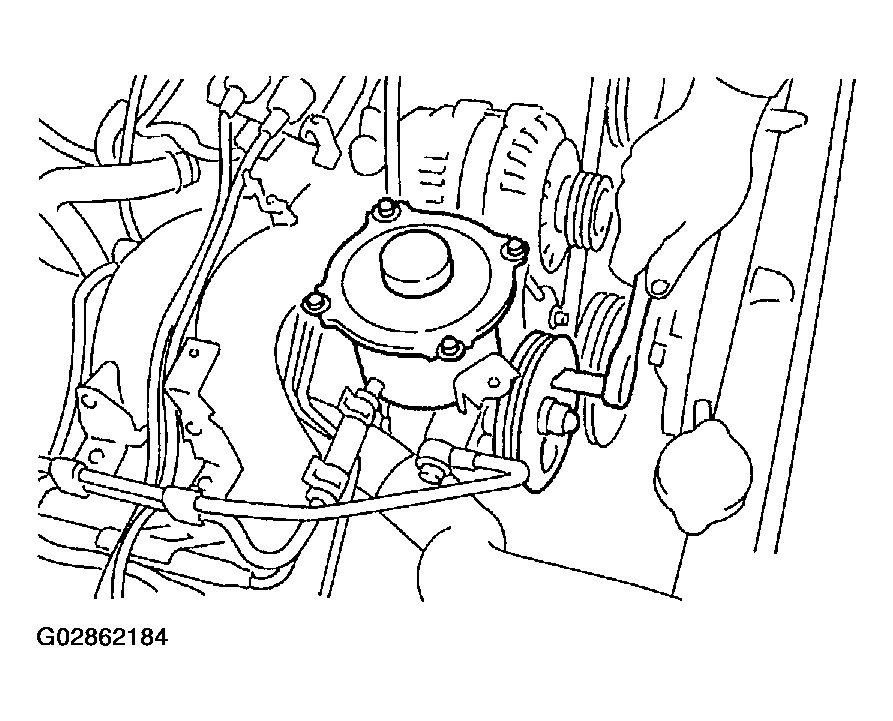

  Fig 14: Removing Power Steering Pump Bolts
  Courtesy of SUBARU OF AMERICA, INC.
5. Remove bolt which installs power steering pump bracket on cylinder head.
6. Place power steering pump on the right side wheel apron.

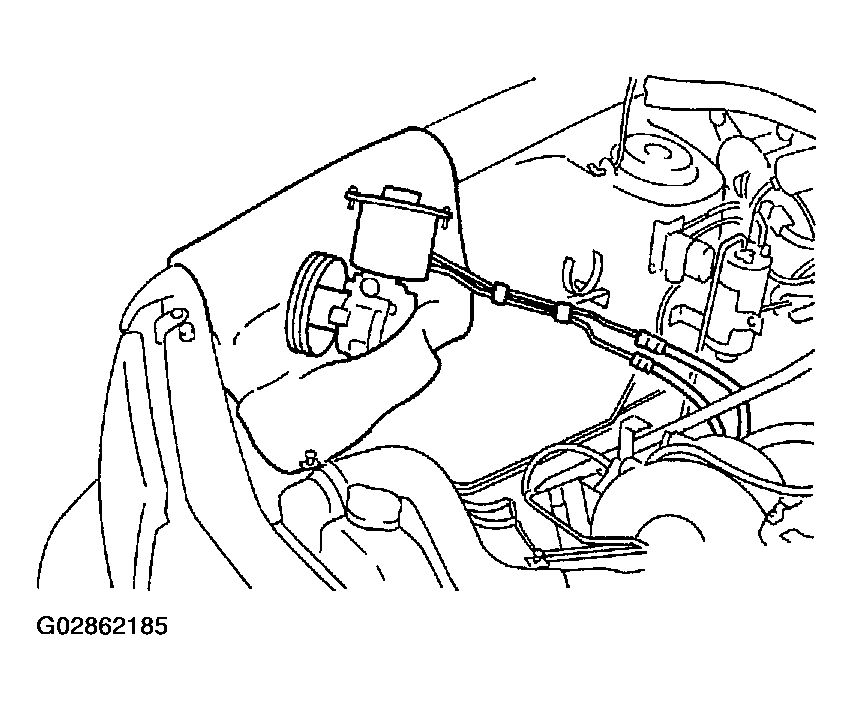

Fig 15: Placing Power Steering Pump On The Right Side Wheel Apron
Courtesy of SUBARU OF AMERICA, INC.
Remove front and center exhaust pipe. Refer to REMOVAL under FRONT EXHAUST PIPE .

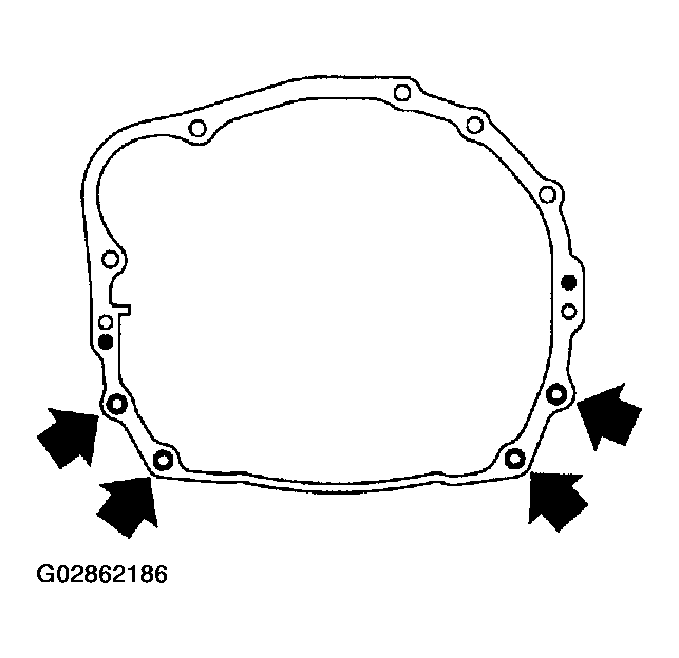

Remove nuts which hold lower side of transmission to engine.

Fig 16: Removing Nuts Which Hold Lower Side Of Transmission To Engine
Courtesy of SUBARU OF AMERICA, INC.
Remove nuts which install front cushion rubber onto front crossmember.

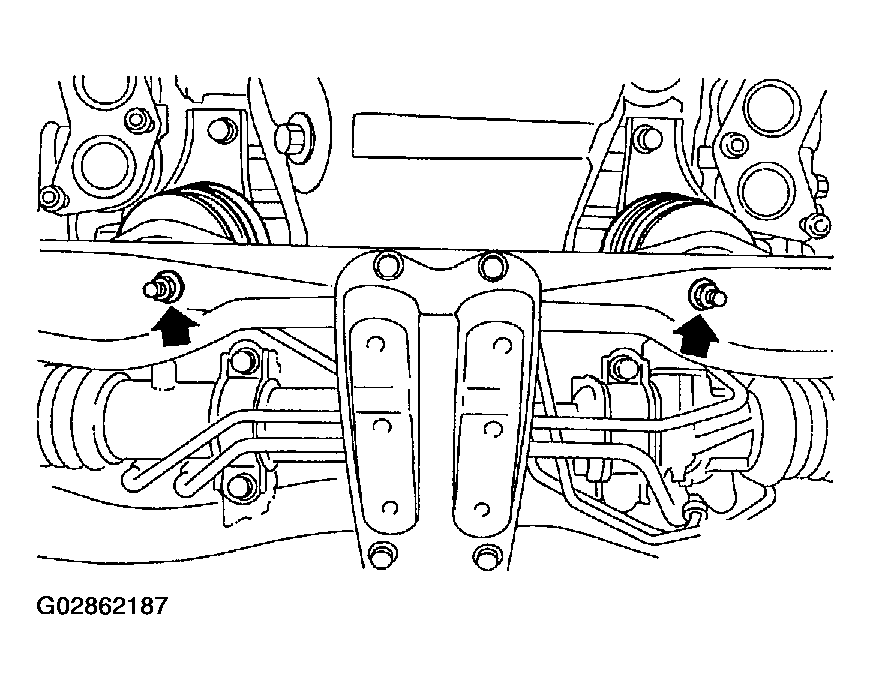

Fig 17: Removing Nuts Which Install Front Cushion Rubber Onto Front Crossmember
Courtesy of SUBARU OF AMERICA, INC.
Separate torque converter clutch from drive plate. (AT model)
1. Lower the vehicle.
2. Remove service hole plug.
3. Remove bolts which hold torque converter clutch to drive plate.
4. Remove other bolts while rotating the engine using ST.
ST 499977100: CRANK PULLEY WRENCH

Fig 18: Removing Torque Converter Clutch-To-Drive Plate Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove pitching stopper.

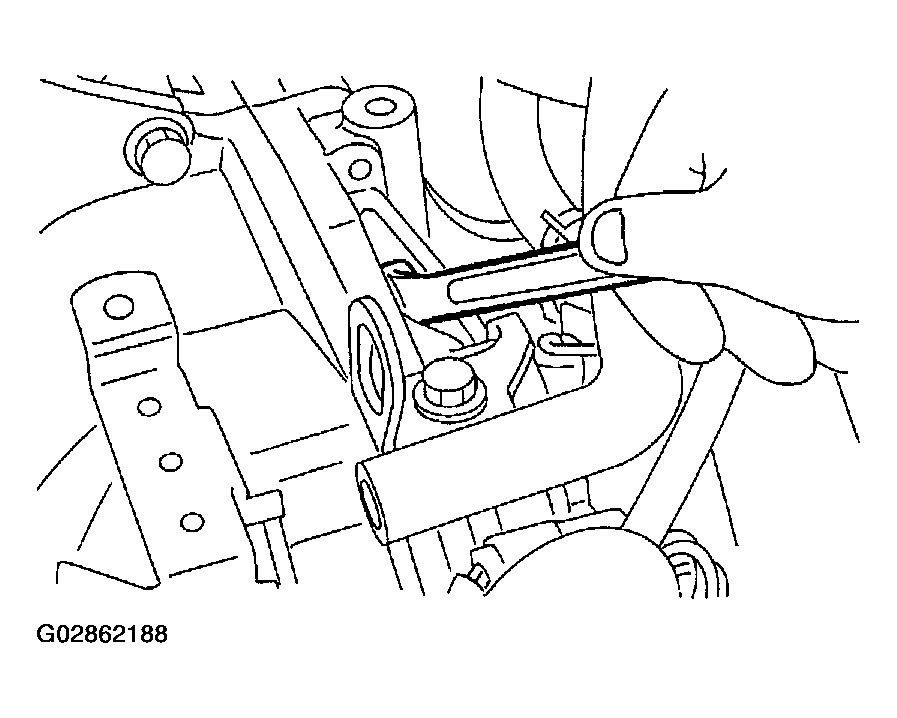

Fig 19: Removing Pitching Stopper
Courtesy of SUBARU OF AMERICA, INC.

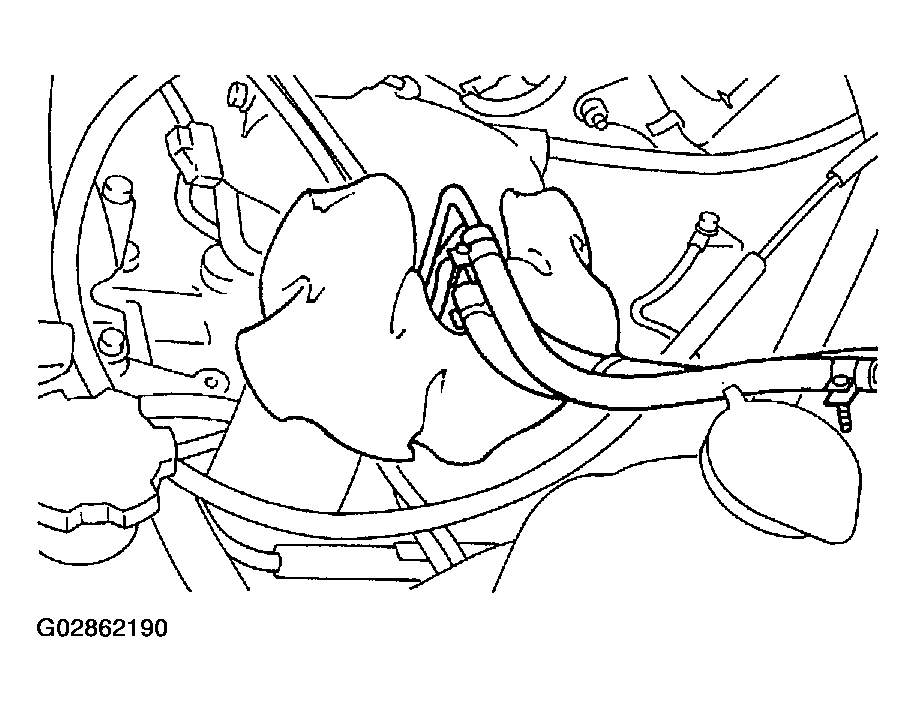

Disconnect fuel delivery hose, return hose and evaporation hose.
CAUTION:
- Disconnect hose with its end wrapped with cloth to prevent fuel from splashing.
- Catch fuel from hose into container.
Fig 20: Disconnecting Fuel Delivery Hose, Return Hose And Evaporation Hose
Courtesy of SUBARU OF AMERICA, INC.
Support engine with a lifting device and wire ropes.

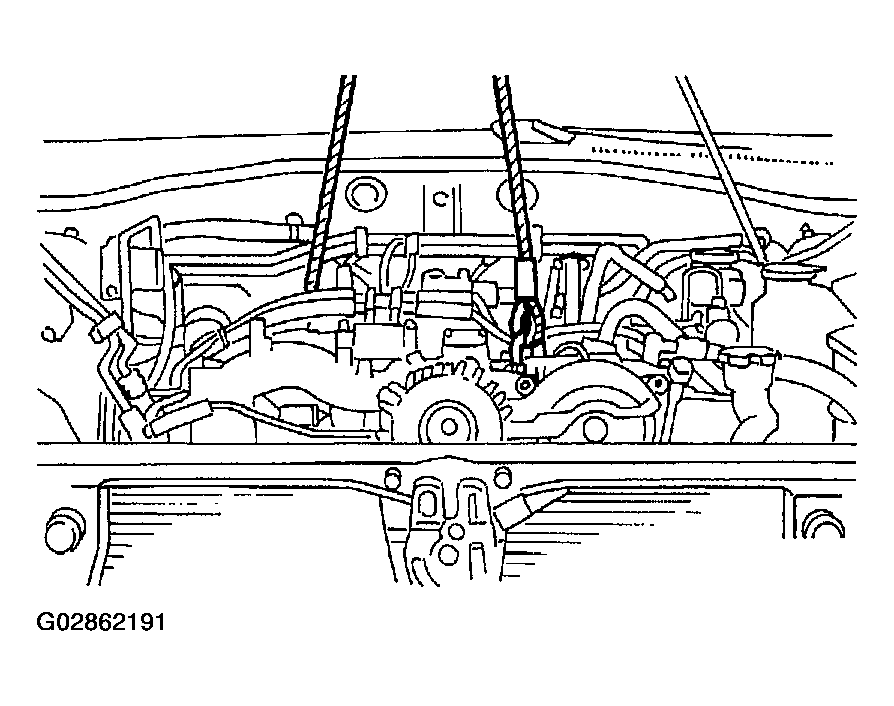

Fig 21: Supporting Engine With Lifting Device And Wire Ropes
Courtesy of SUBARU OF AMERICA, INC.
Support transmission with a garage jack.
CAUTION: Before moving engine away from transmission, check to be sure no work has been overlooked. Doing this is very important in order to facilitate re-installation and because transmission lowers under its own weight.

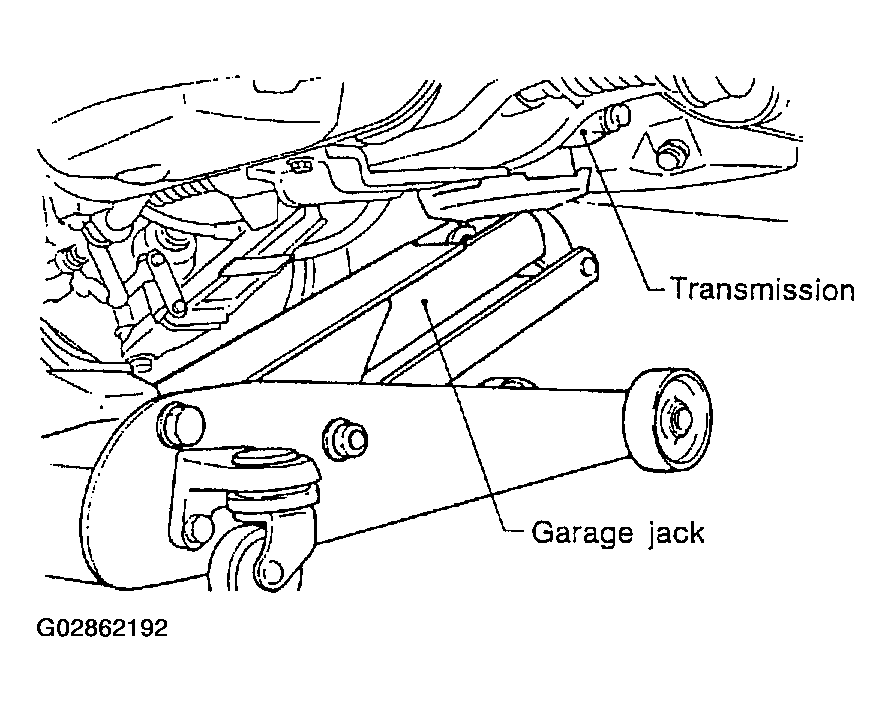

Fig 22: Supporting Transmission With Garage Jack
Courtesy of SUBARU OF AMERICA, INC.
Separation of engine and transmission.
1. Remove starter. Refer to REMOVAL under STARTER .
2. Remove bolts which hold upper side of transmission to engine.

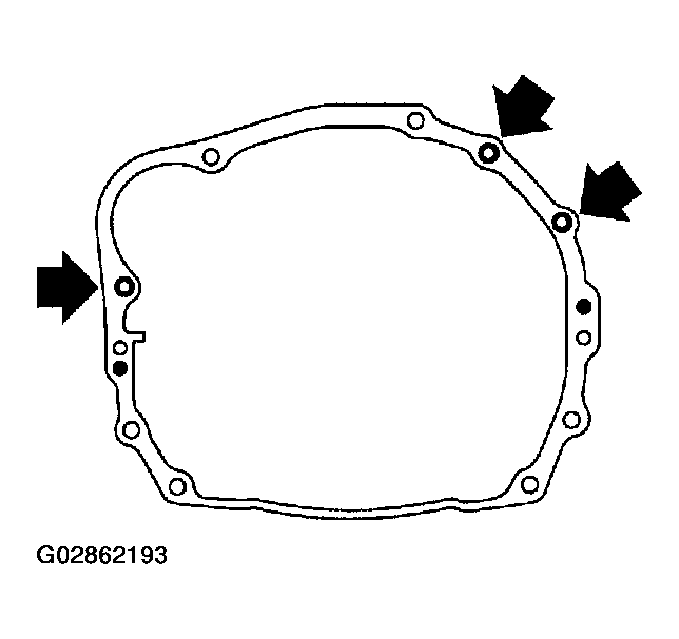

Fig 23: Removing Bolts Which Hold Upper Side Of Transmission To Engine
Courtesy of SUBARU OF AMERICA, INC.
Install ST to torque converter clutch case. (AT model)
ST 498277200: STOPPER SET

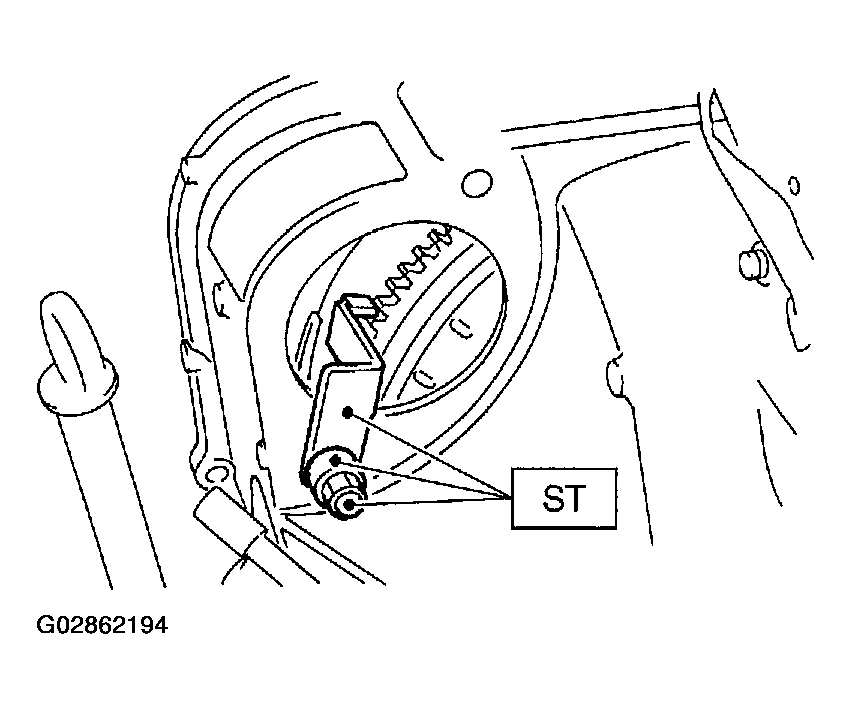

Fig 24: Installing ST To Torque Converter Clutch Case
Courtesy of SUBARU OF AMERICA, INC.
Remove engine from vehicle.
1. Slightly raise engine.
2. Raise transmission with garage jack.
3. Move engine horizontally until main shaft is withdrawn from clutch cover.
4. Slowly move engine away from engine compartment.
CAUTION: Be careful not to damage adjacent parts or body panels with crank pulley, oil level gauge, etc.

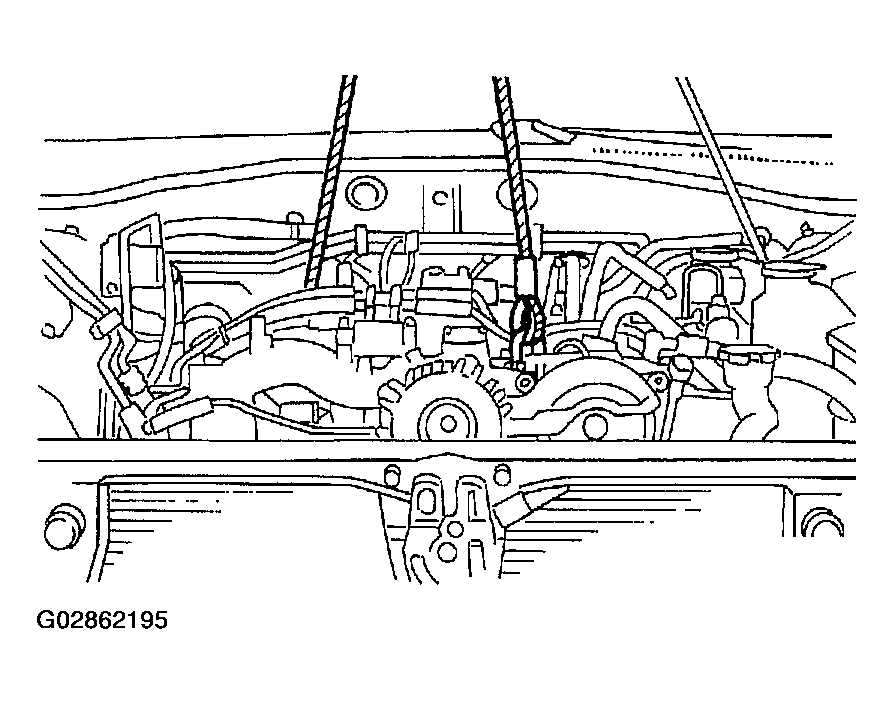

Fig 25: Removing Engine From Engine Compartment
Courtesy of SUBARU OF AMERICA, INC.
Remove front cushion rubbers.
