Valve Spring

  1. Check valve springs for damage, free length, and tension. Replace valve spring if it is not to the specifications presented below.
  2. To measure the squareness of the valve spring, stand the spring on a surface plate and measure its deflection at the top using a try square.

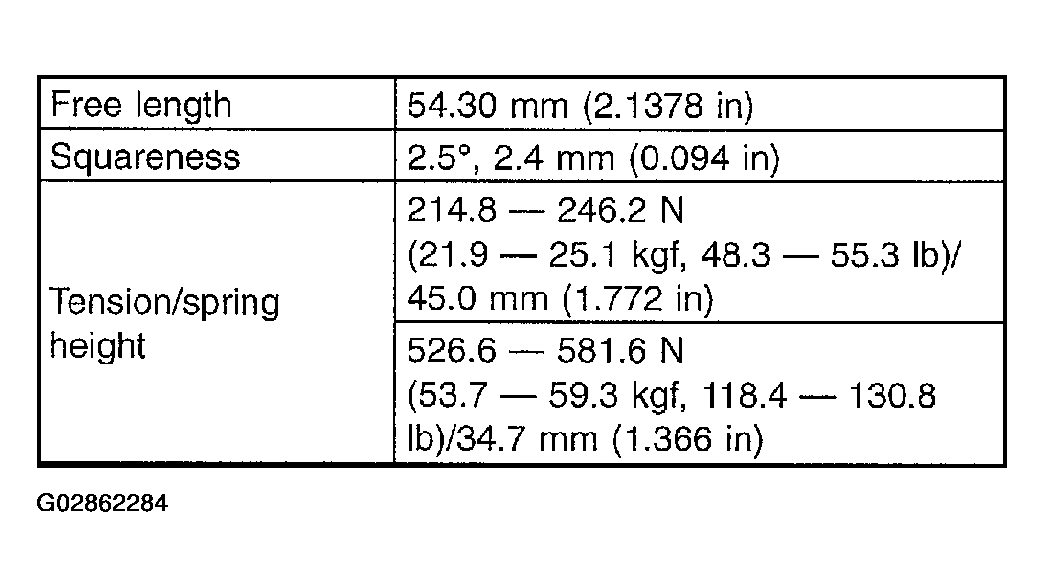

    Fig 1: Valve Spring Specifications Chart
    G02862284Courtesy of SUBARU OF AMERICA, INC.

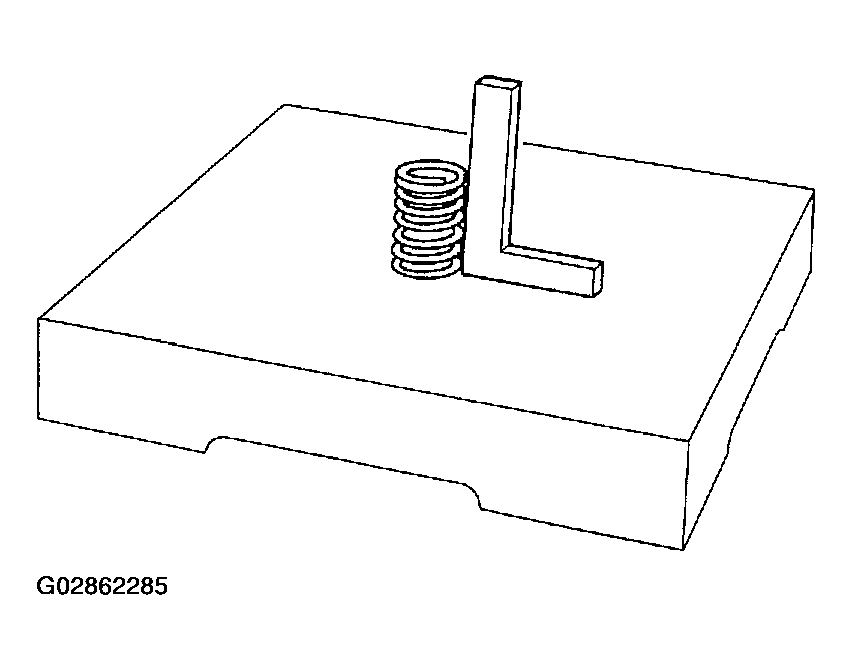

    Fig 2: Checking Squareness Of Valve Spring
    G02862285Courtesy of SUBARU OF AMERICA, INC.
