Cylinder Head Assembly: Assembly

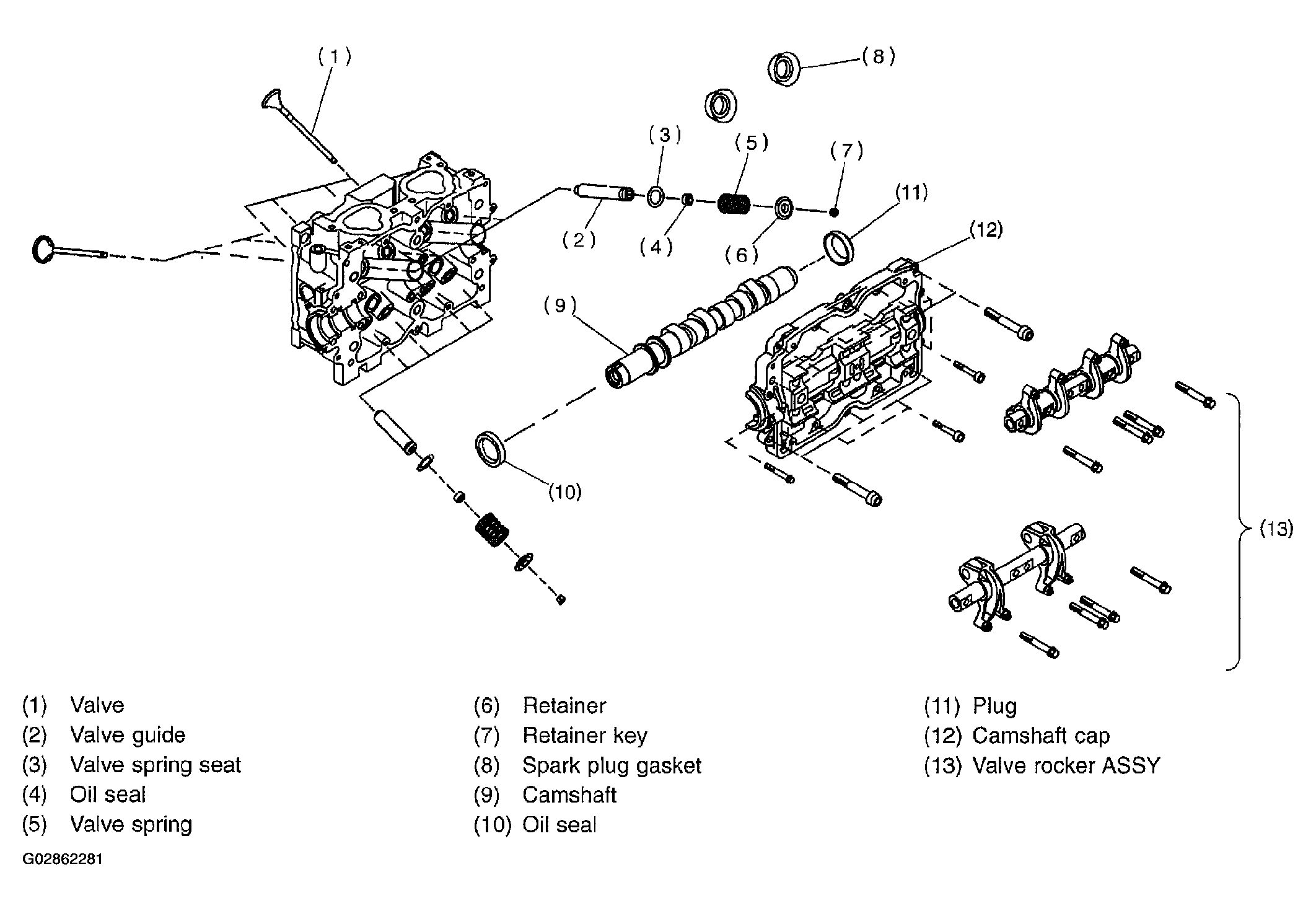

Fig 1: Exploded View Of Cylinder Head Assembly
G02862281Courtesy of SUBARU OF AMERICA, INC.
  1. Installation of valve spring and valve
    1. Place cylinder head on ST.

      ST 498267800:  CYLINDER HEAD TABLE

    2. Coat stem of each valve with engine oil and insert valve into valve guide.
      CAUTION: When inserting valve into valve guide, use special care not to damage the oil seal lip.
    3. Install valve spring and retainer.
      CAUTION: Be sure to install the valve springs with their close-coiled end facing the seat on the cylinder head.
    4. Set ST on valve spring.

      ST 499718000:  VALVE SPRING REMOVER

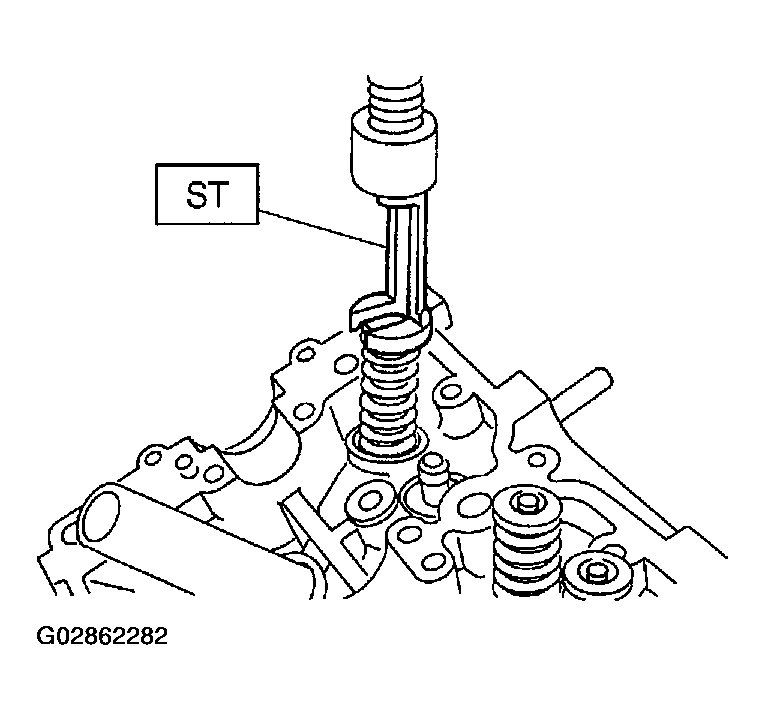

      Fig 2: Installing Valve Spring And Retainer
      G02862282Courtesy of SUBARU OF AMERICA, INC.
    5. Compress valve spring and fit valve spring retainer key.

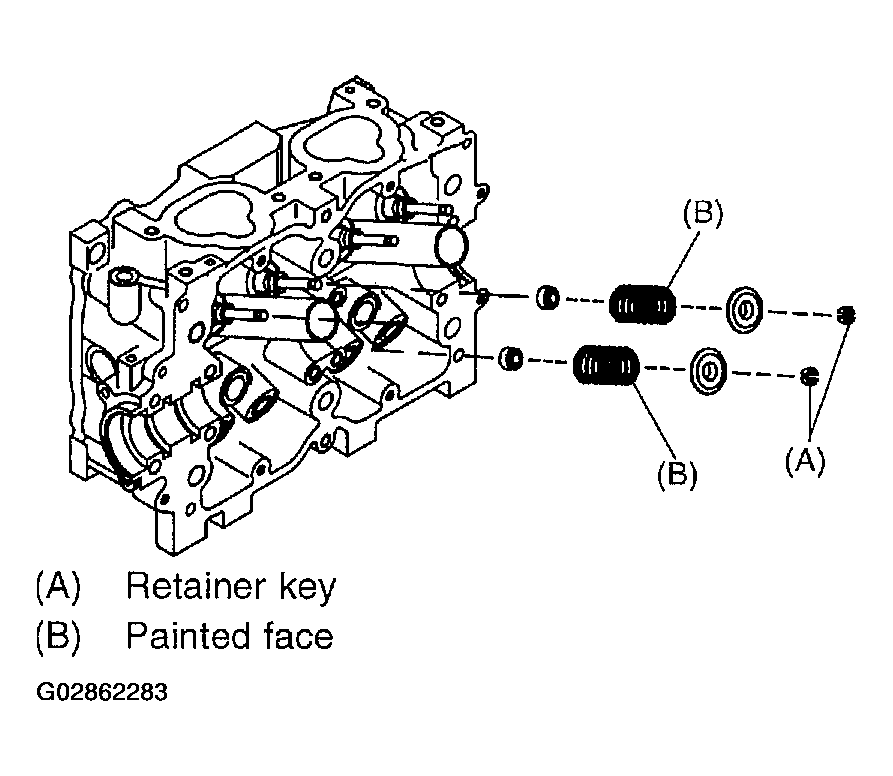

      Fig 3: Fitting Valve Spring Retainer Key
      G02862283Courtesy of SUBARU OF AMERICA, INC.
    6. After installing, tap valve spring retainers lightly with wooden hammer for better seating.
