Oil Pump: Removal

Disconnect battery ground cable.

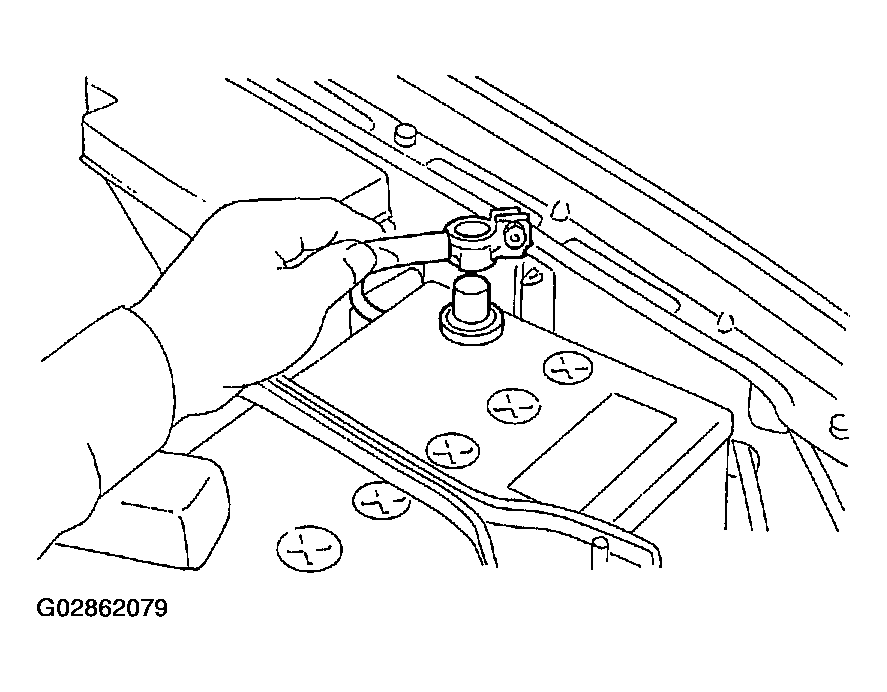

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove under cover.
Remove bolts which install water pipe of oil cooler to oil pump. (AT model)

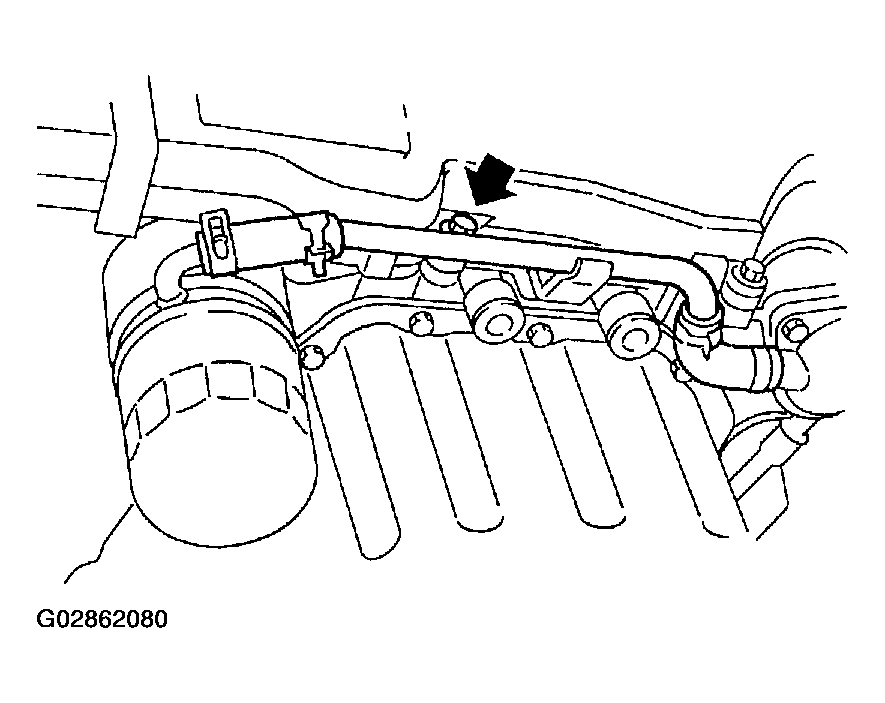

Fig 2: Removing Bolts Which Install Water Pipe Of Oil Cooler To Oil Pump
Courtesy of SUBARU OF AMERICA, INC.
Remove water pipe and hoses between oil cooler and water pump. (AT model)

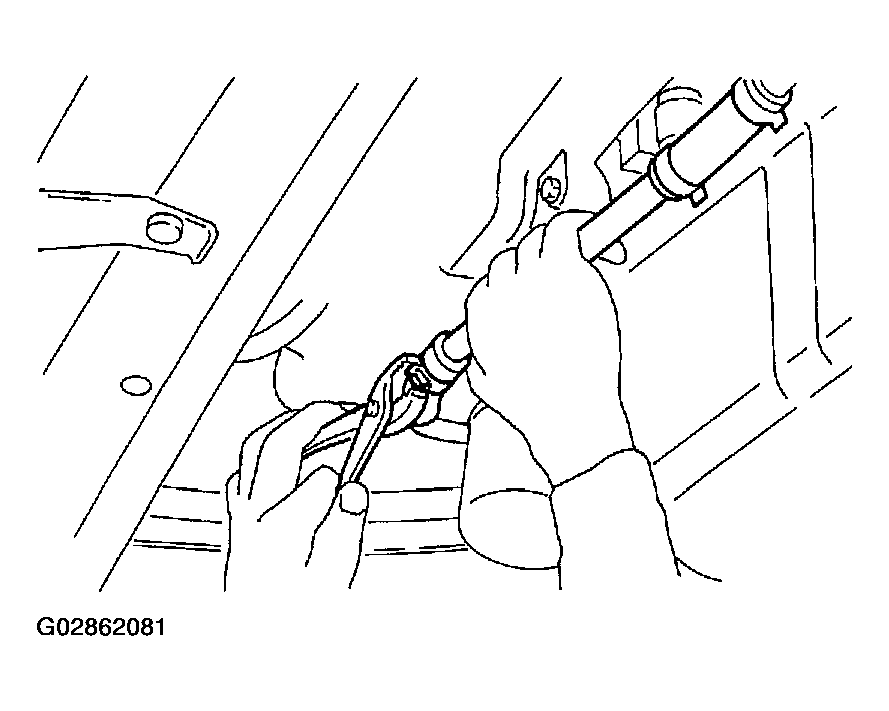

Fig 3: Removing Water Pipe And Hoses Between Oil Cooler And Water Pump
Courtesy of SUBARU OF AMERICA, INC.
Remove radiator. Refer to RADIATOR .
Remove crankshaft position sensor.

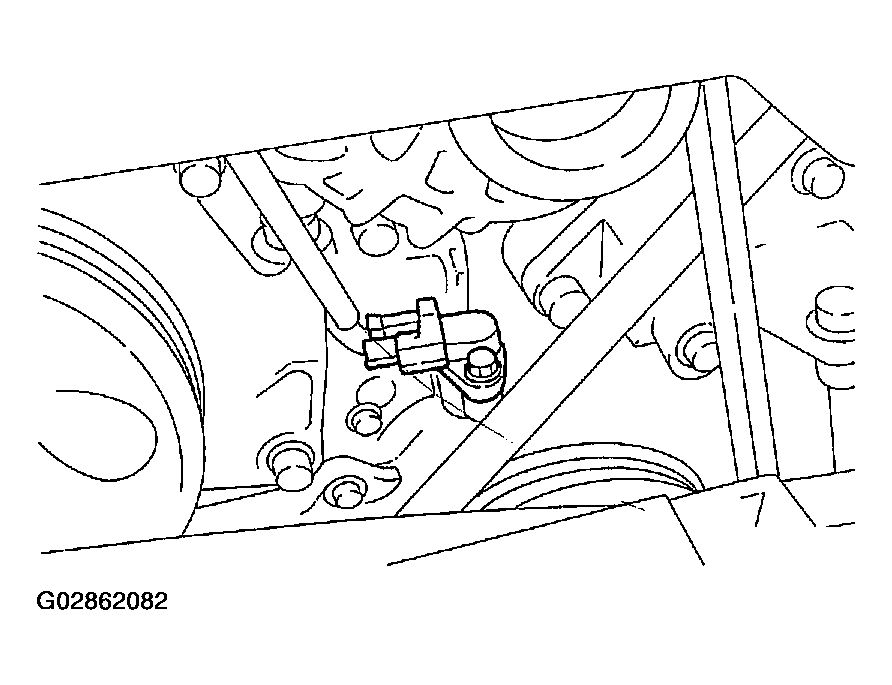

Fig 4: Removing Crankshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove V-belts. Refer to V-BELT .
Remove rear side V-belt tensioner.

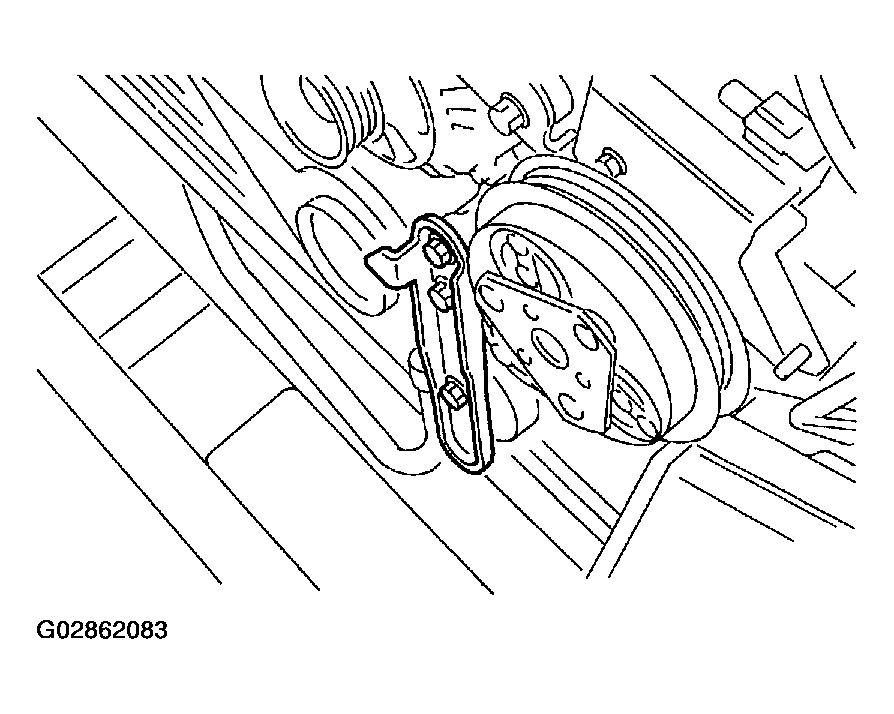

Fig 5: Removing Rear Side V-Belt Tensioner
Courtesy of SUBARU OF AMERICA, INC.
Remove crankshaft pulley by using ST.
ST 499977300: CRANKSHAFT PULLEY WRENCH

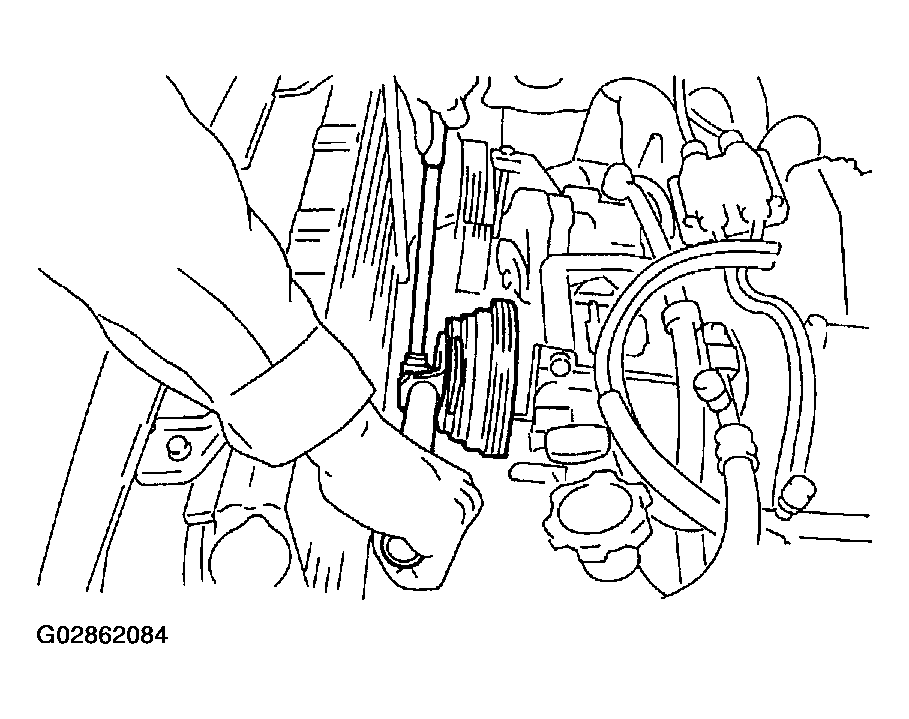

Fig 6: Removing Crankshaft Pulley
Courtesy of SUBARU OF AMERICA, INC.
Remove water pump. Refer to WATER PUMP .
Remove crankshaft sprocket.

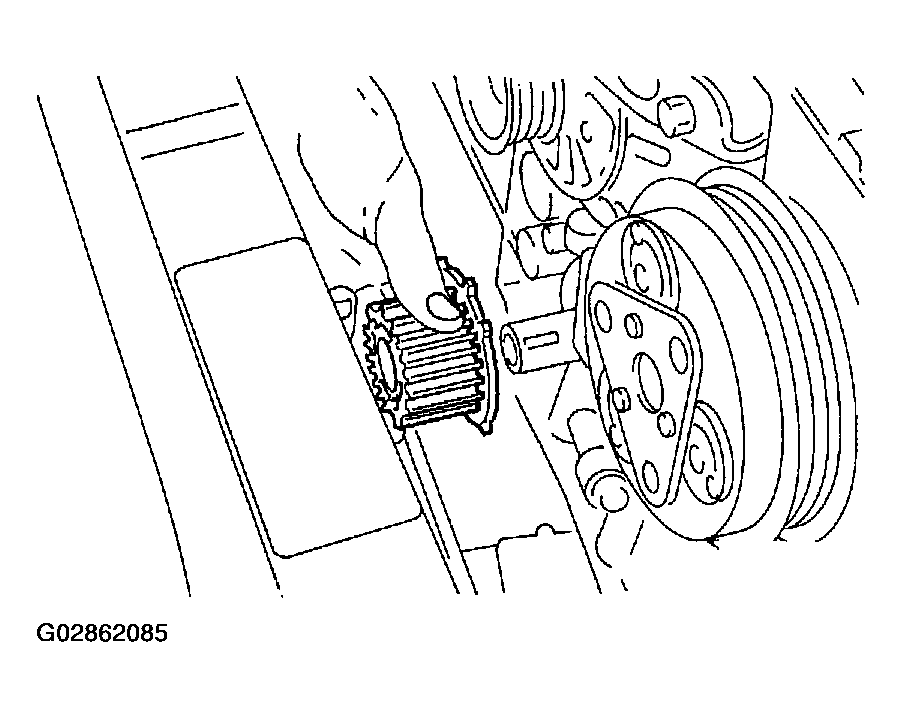

Fig 7: Removing Crankshaft Sprocket
Courtesy of SUBARU OF AMERICA, INC.
Remove bolts which install oil pump onto cylinder block.

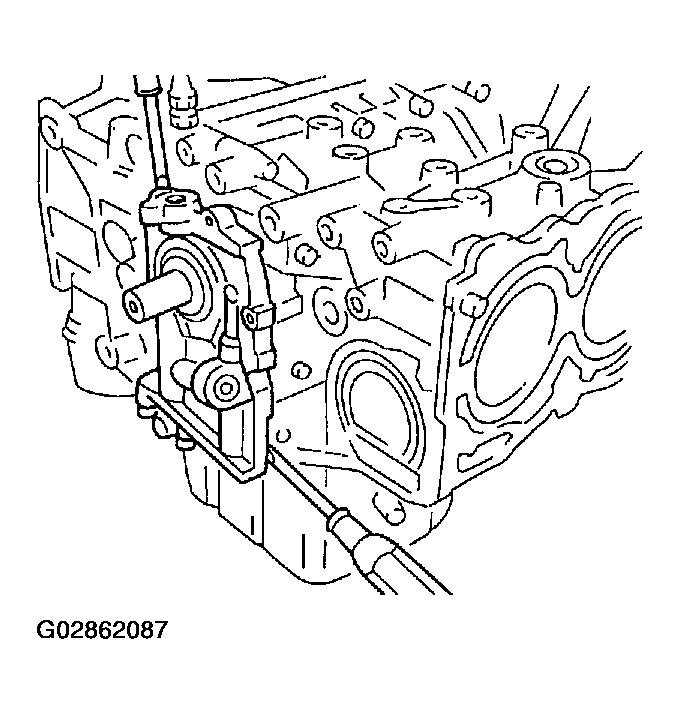

Fig 8: Removing Bolts Which Install Oil Pump Onto Cylinder Block
Courtesy of SUBARU OF AMERICA, INC.
Remove oil pump by using flat bladed screwdriver.
CAUTION: Be careful not to scratch mating surfaces of cylinder block and oil pump.

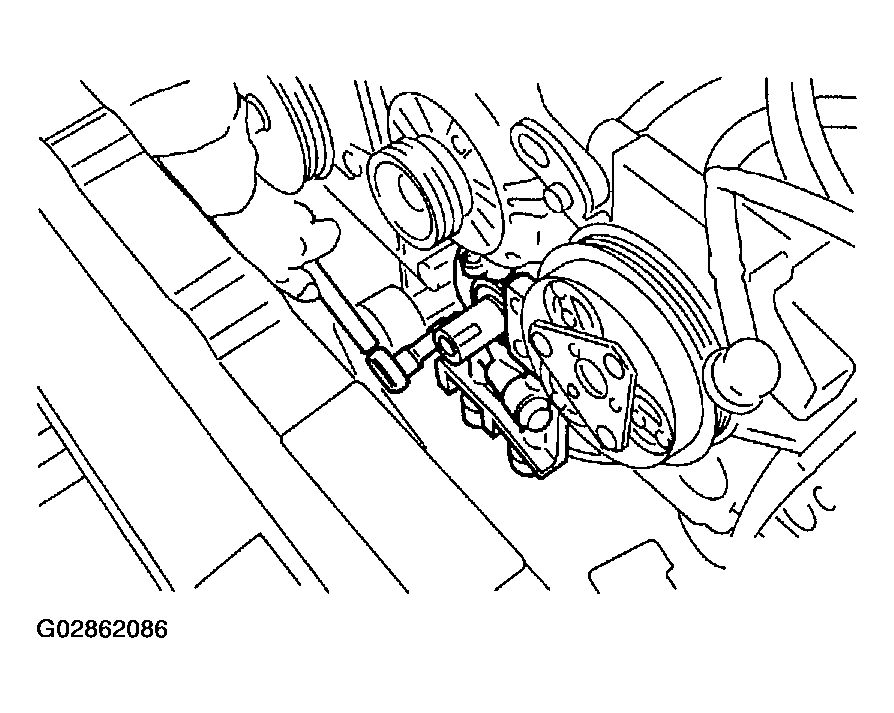

Fig 9: Removing Oil Pump
