Oil Pump: DIASSEMBLY

  1. Install front oil seal by using ST.

    ST 499587100:  OIL SEAL INSTALLER

    NOTE: Use a new oil seal.
    Fig 1: Installing Front Oil Seal
    G02862092Courtesy of SUBARU OF AMERICA, INC.
  2. Apply a coat of engine oil to inner and outer rotors.
  3. Install inner and outer rotors in their original positions.
  4. Install oil relief valve and relief valve spring.
  5. Install oil pump cover.

    Tightening torque:

    1. T1:  5 N.m (0.5 kgf-m, 3.6 ft-lb)
    2. T2:  44 N.m (4.5 kgf-m, 33 ft-lb)

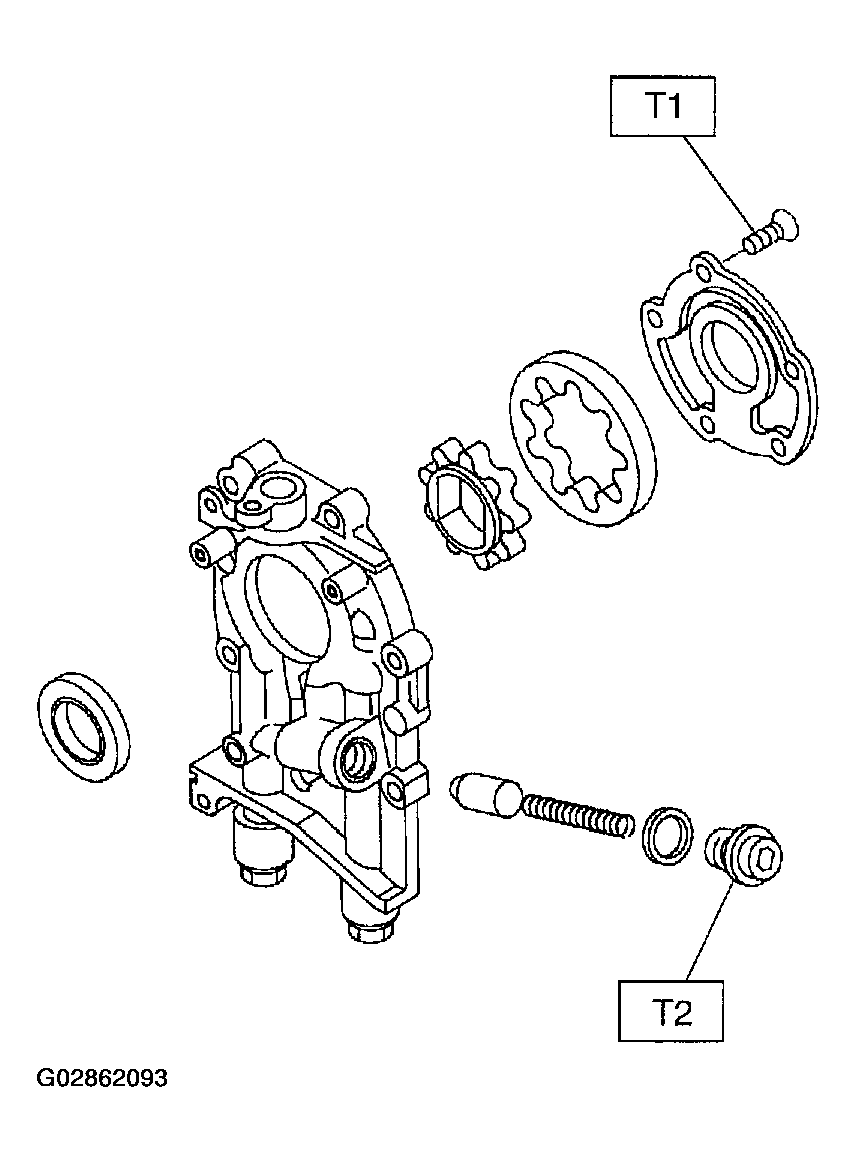

Fig 2: Installing Oil Pump Cover
G02862093Courtesy of SUBARU OF AMERICA, INC.
