Oil Pressure Switch: Removal

  1. Remove generator from bracket. GENERATOR .
  2. Disconnect terminal from oil pressure switch.

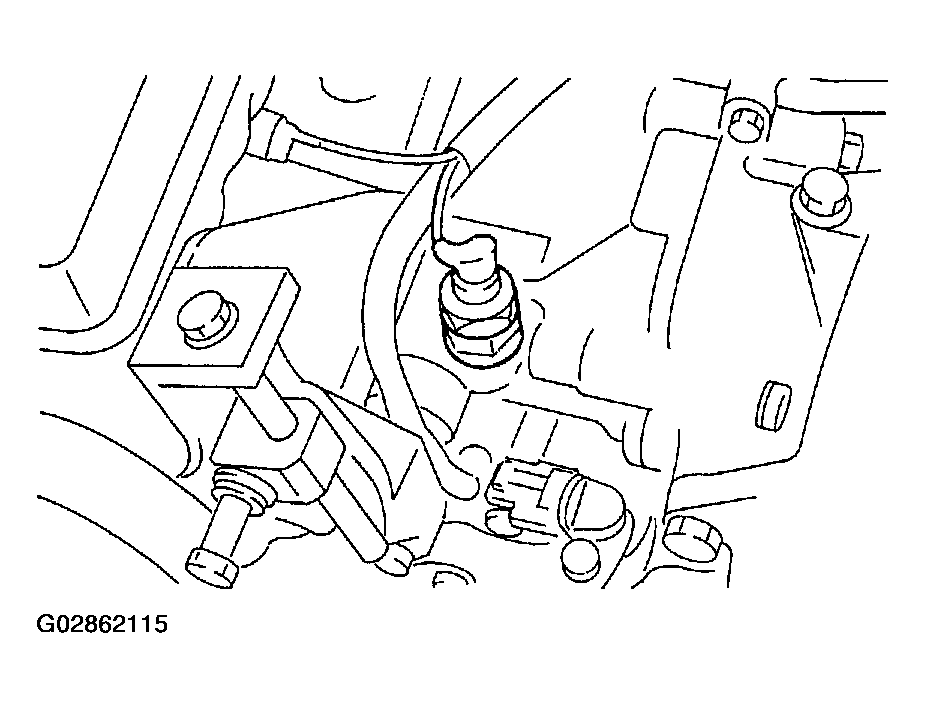

    Fig 1: Disconnecting Terminal From Oil Pressure Switch
    G02862115Courtesy of SUBARU OF AMERICA, INC.
  3. Remove oil pressure switch.

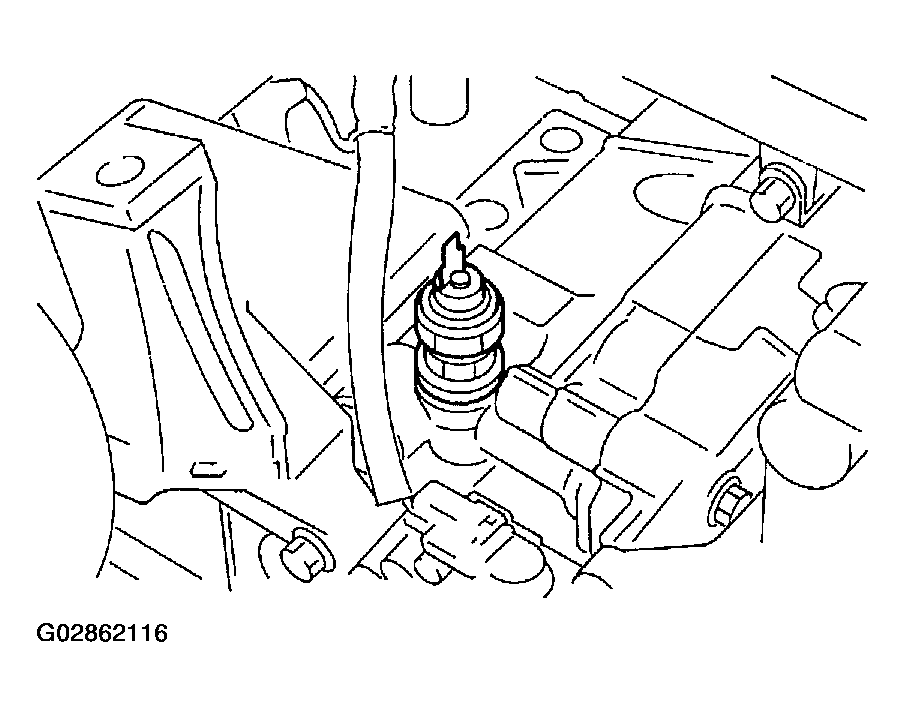

Fig 2: Removing Oil Pressure Switch
G02862116Courtesy of SUBARU OF AMERICA, INC.
