Oil Pressure Switch: Installation

Apply fluid packing to oil pressure switch threads.
Fluid packing; THREE BOND 1215 or equivalent

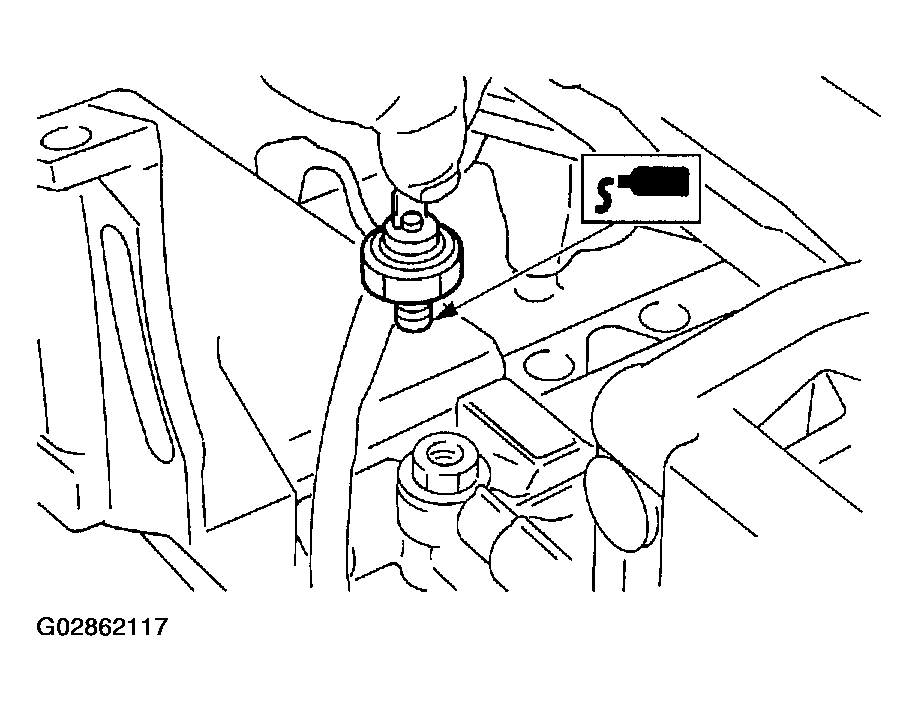

Fig 1: Applying Fluid Packing To Oil Pressure Switch Threads
Courtesy of SUBARU OF AMERICA, INC.
Install oil pressure switch onto engine block.
Tightening torque: 25 N.m (2.5 kgf-m, 18.1 ft-lb)

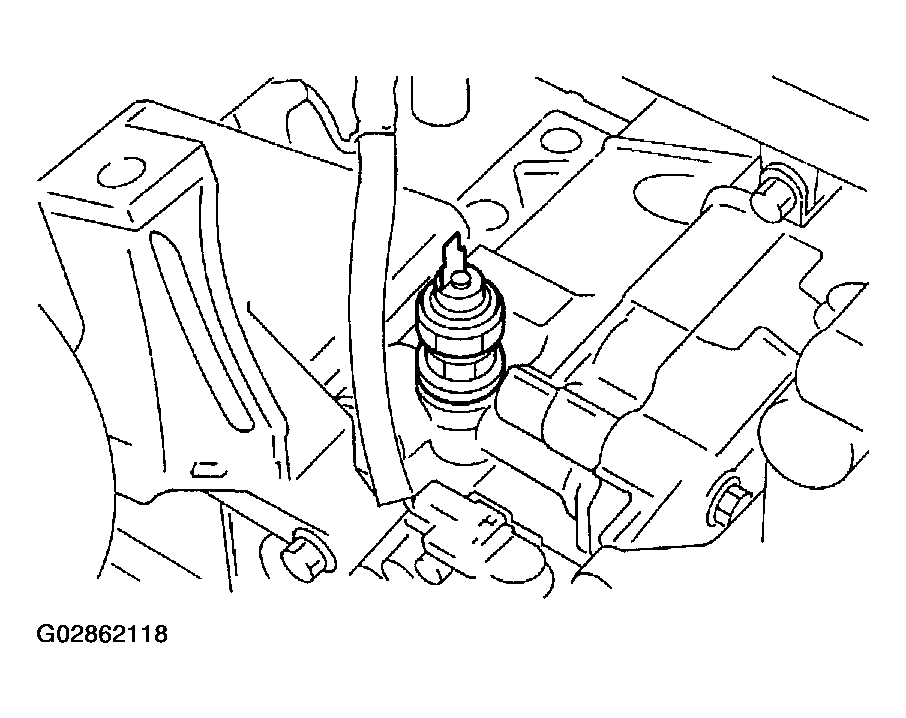

Fig 2: Installing Oil Pressure Switch
Courtesy of SUBARU OF AMERICA, INC.
Connect terminal of oil pressure switch.

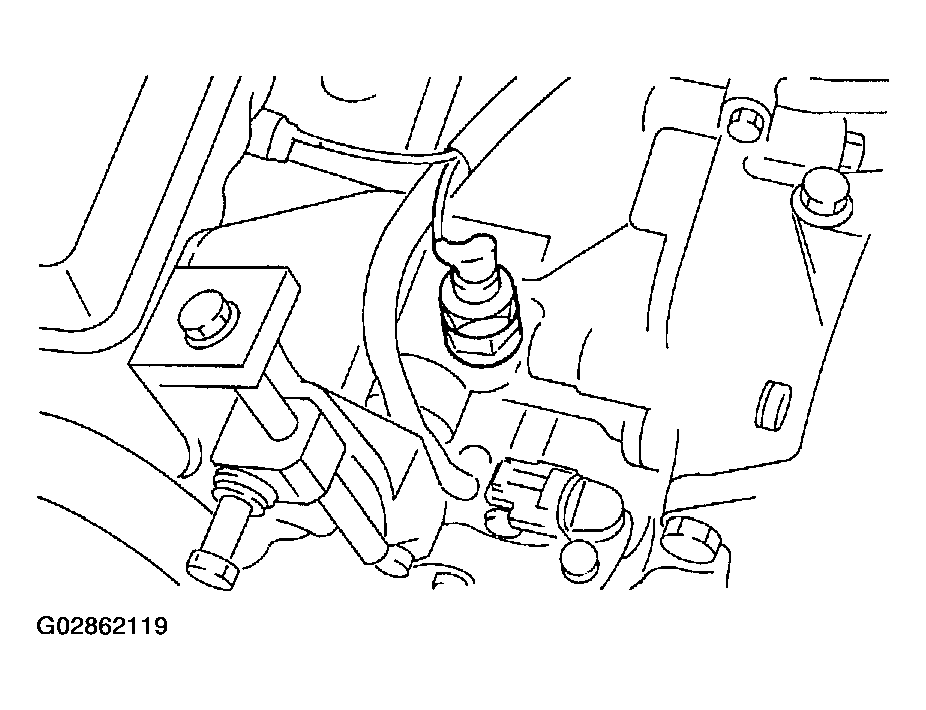

Fig 3: Connecting Terminal Of Oil Pressure Switch
Courtesy of SUBARU OF AMERICA, INC.
Install generator on bracket. Refer to GENERATOR .
