Engine Oil Cooler: Removal

  1. Lift-up the vehicle.
  2. Remove under cover.
  3. Drain engine oil. Set container under the vehicle, and remove drain plug from oil pan.

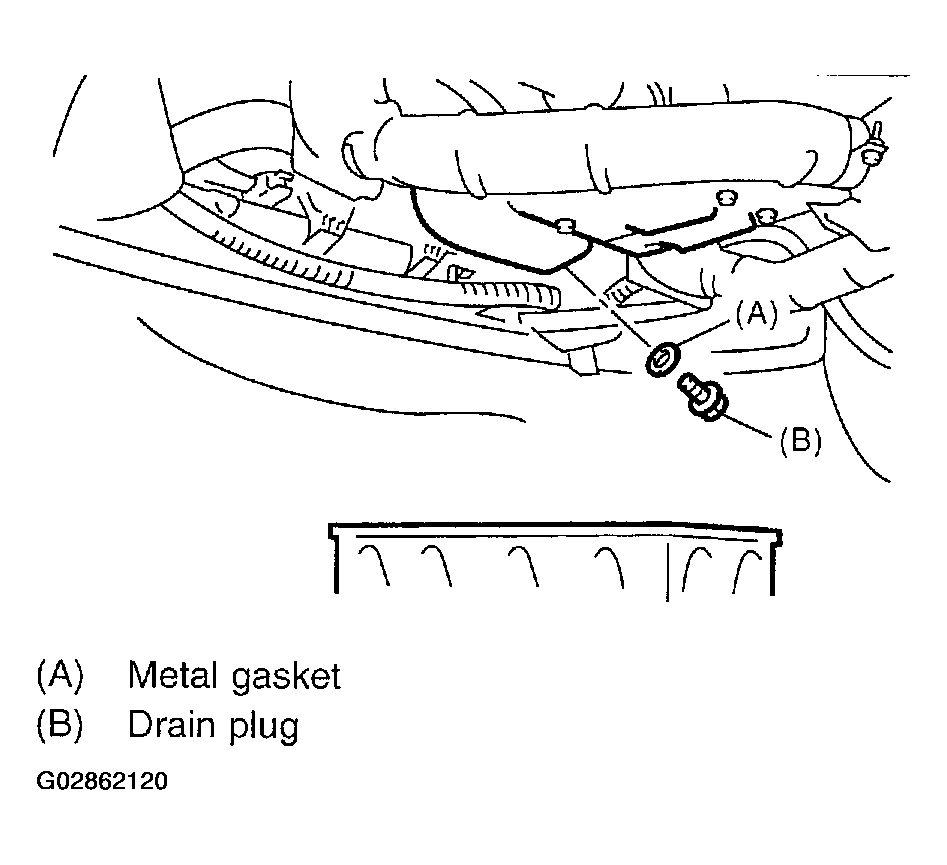

    Fig 1: Removing Drain Plug From Oil Pan
    G02862120Courtesy of SUBARU OF AMERICA, INC.
  4. Drain coolant.
  5. Remove water by-pass pipe between oil cooler and water pump.

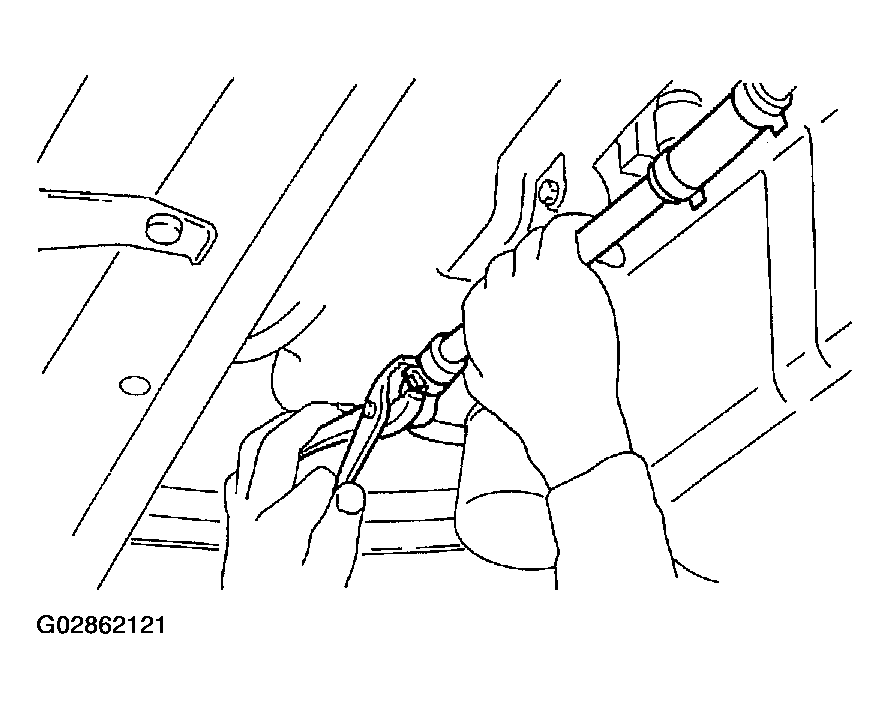

    Fig 2: Removing Water By-Pass Pipe
    G02862121Courtesy of SUBARU OF AMERICA, INC.
  6. Remove engine oil filter. Engine Oil Filter .
  7. Remove connector and remove oil cooler.

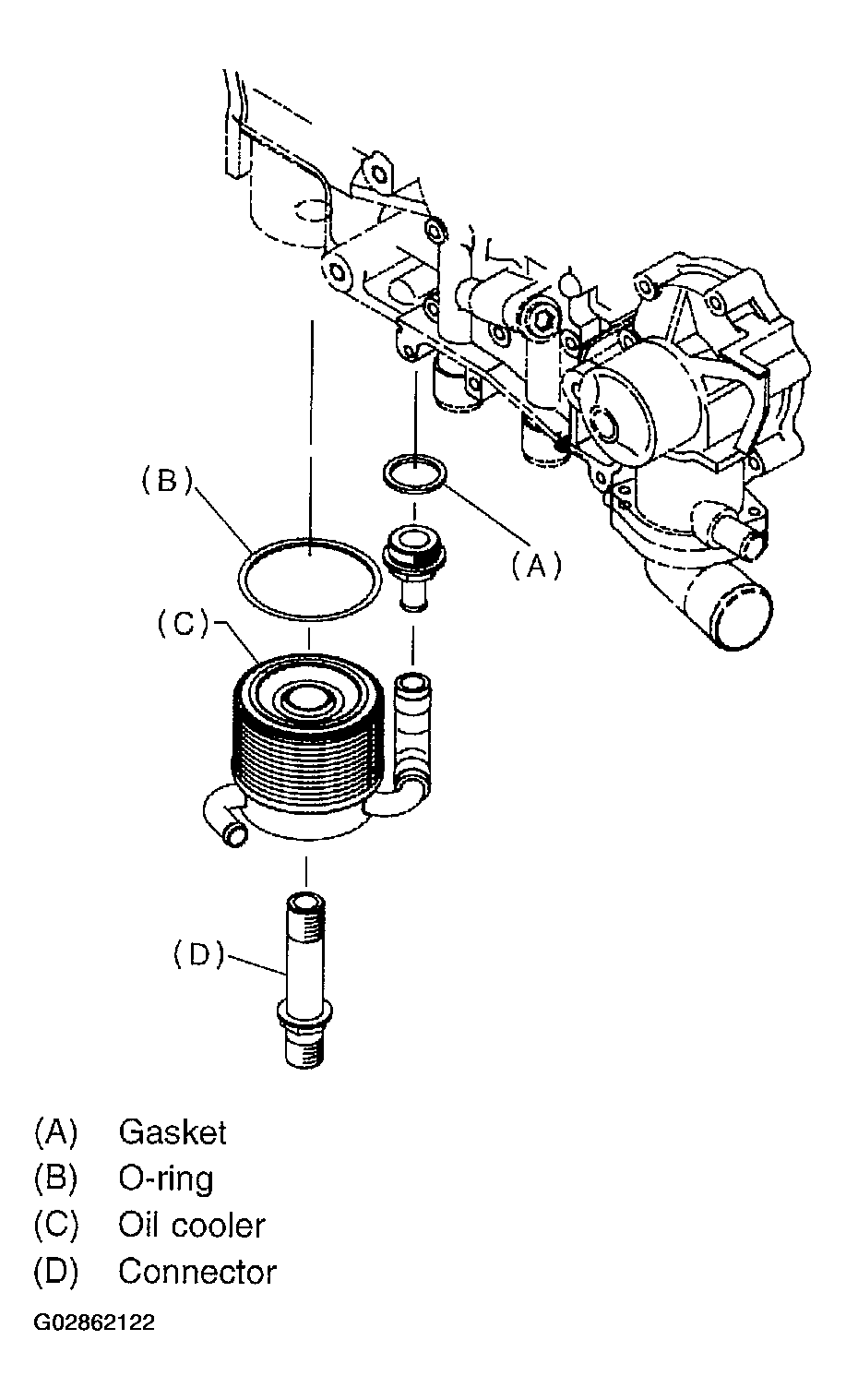

Fig 3: Removing Connector And Oil Cooler
G02862122Courtesy of SUBARU OF AMERICA, INC.
