Engine Lubrication System Trouble in General: Inspection

Before performing diagnostics, make sure that the engine oil level is correct and no oil leakage exists.

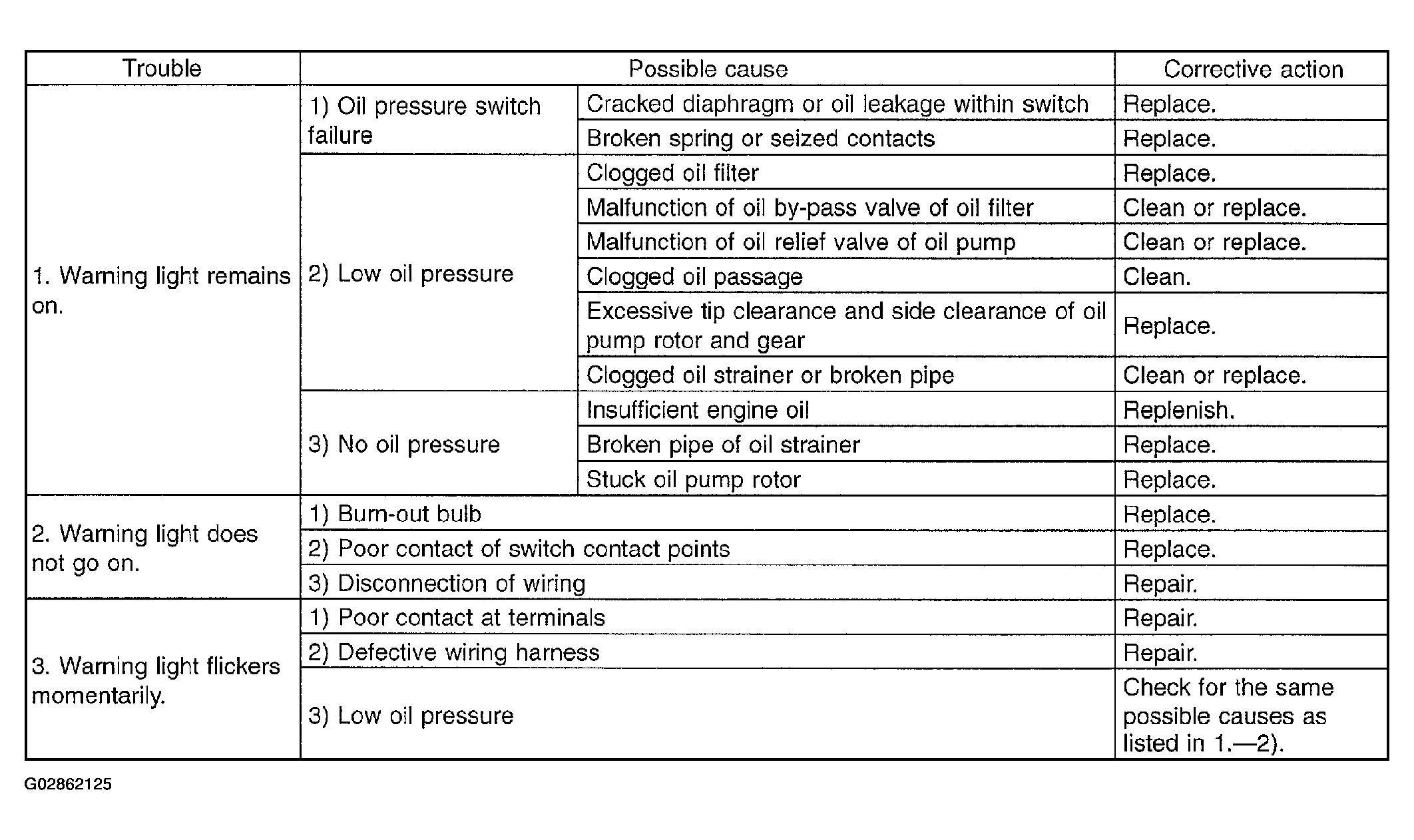

Fig 1: Engine Lubrication System Trouble Symptoms Diagnostic Chart

Courtesy of SUBARU OF AMERICA, INC.
