Rear Exhaust Pipe: Installation

NOTE: Replace gaskets with new ones.

Install rear exhaust pipe bracket to rubber cushion.
NOTE: To facilitate removal, apply a coat of SUBARU CRC to mating area of rubber cushion in advance.

SUBARU CRC: Part No. 004301003

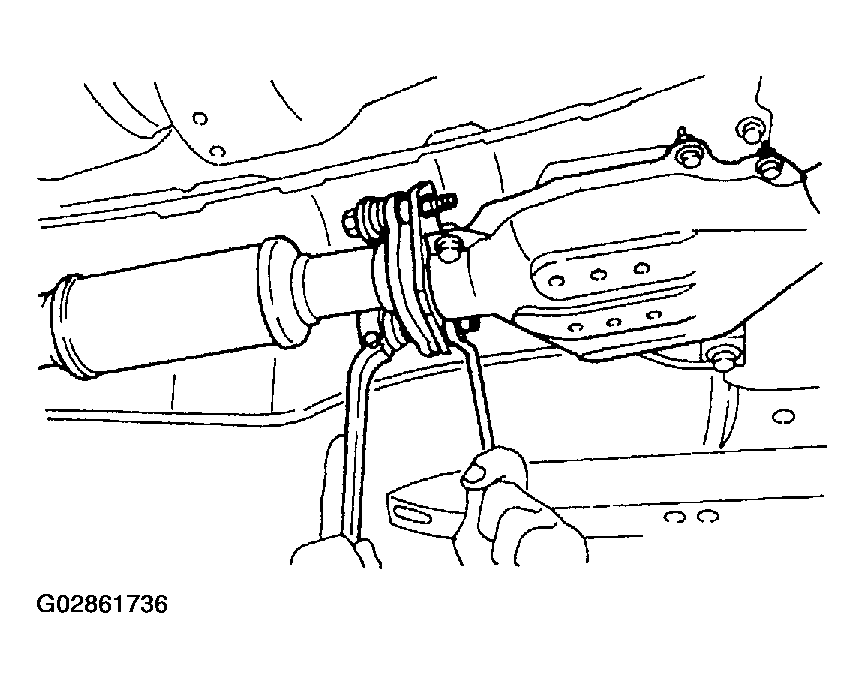

Fig 1: Installing Rear Exhaust Pipe Bracket To Rubber Cushion
Courtesy of SUBARU OF AMERICA, INC.
Install rear exhaust pipe to muffler.
Tightening torque: 48 N.m (4.9 kgf-m, 35.4 ft-lb)

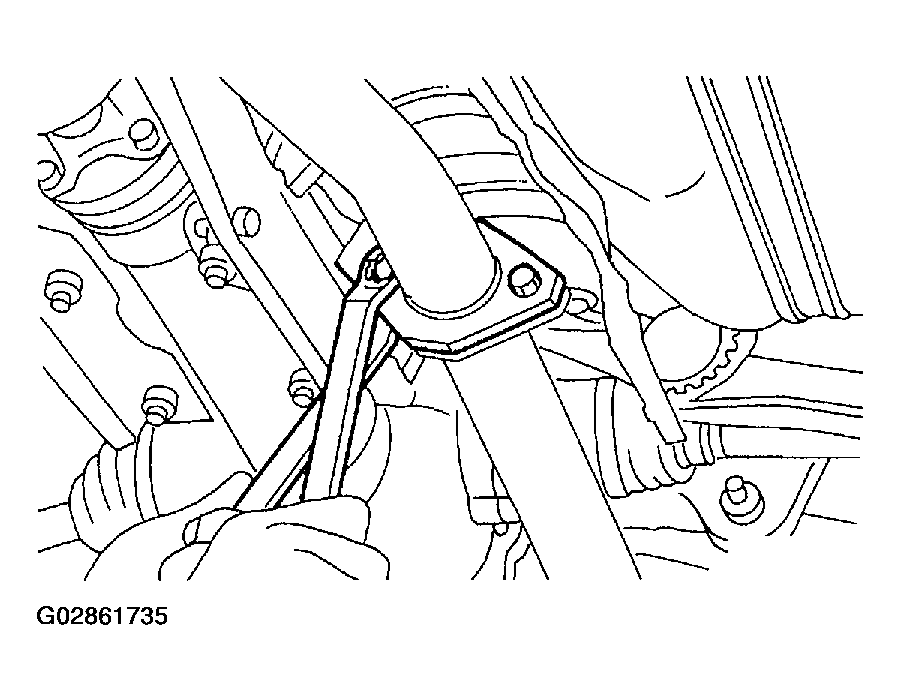

Fig 2: Installing Rear Exhaust Pipe To Muffler
Courtesy of SUBARU OF AMERICA, INC.
Install rear exhaust pipe to center exhaust pipe.
Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

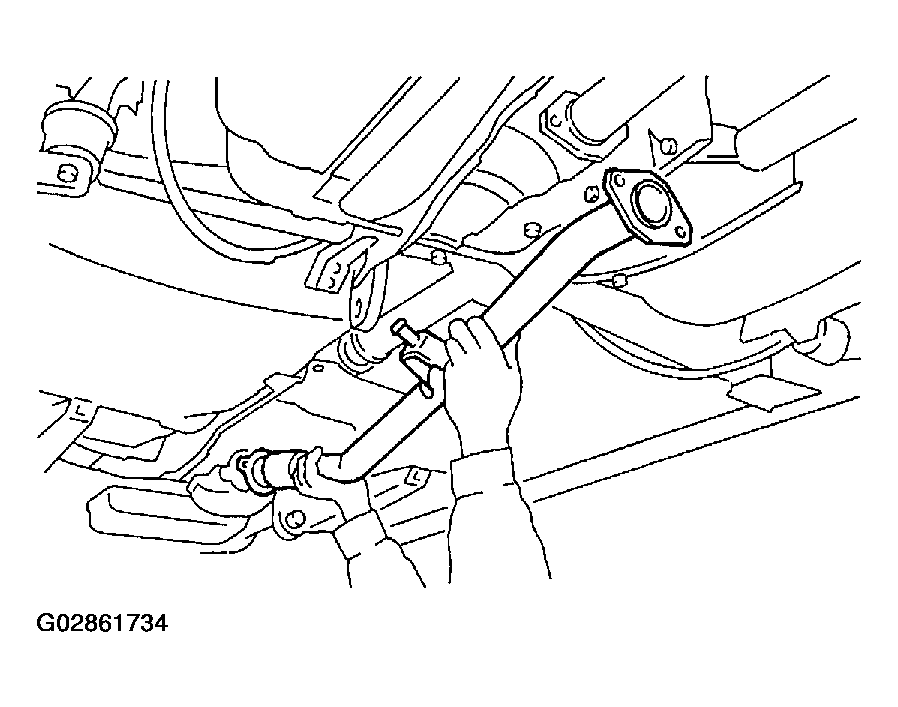

Fig 3: Installing Rear Exhaust Pipe To Center Exhaust Pipe
Courtesy of SUBARU OF AMERICA, INC.
