Water Pump: Removal

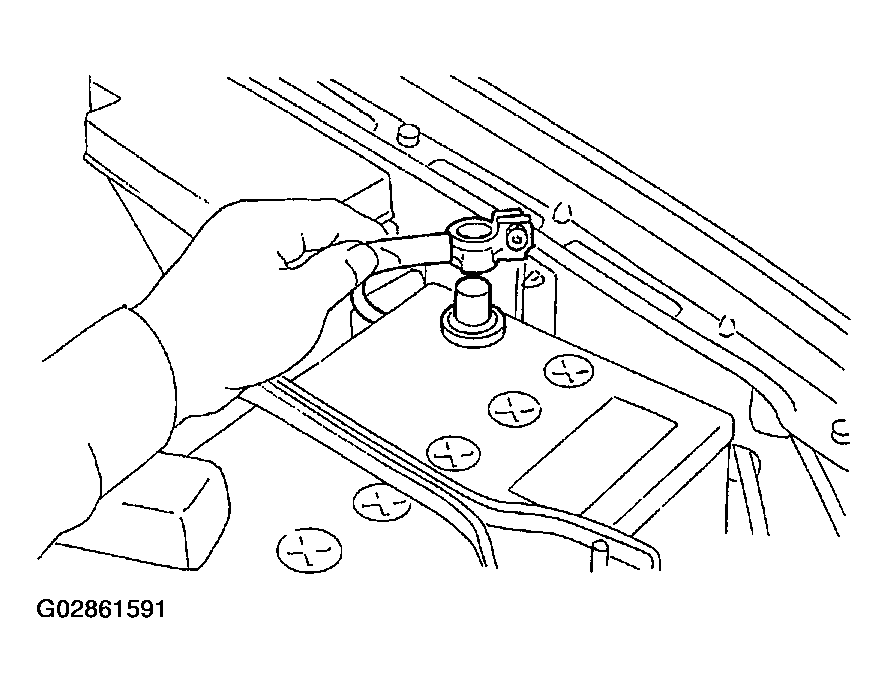

Disconnect battery ground cable

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove under cover.
Drain engine coolant completely.
Refer to DRAINING OF ENGINE COOLANT .
Disconnect connectors from radiator main fan (A) and sub fan (B) motors.

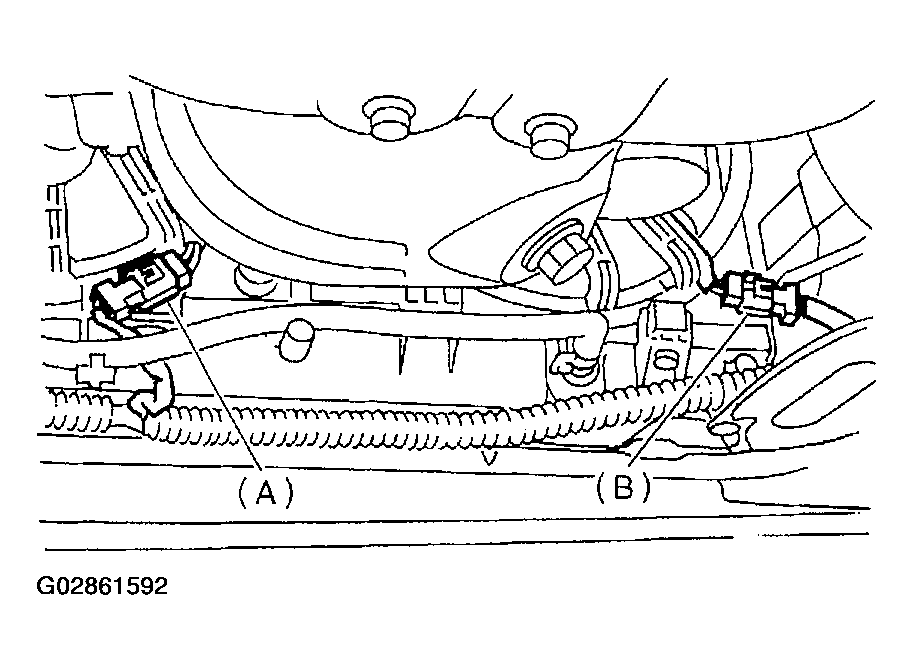

Fig 2: Disconnecting Connectors From Radiator Fan Motors
Courtesy of SUBARU OF AMERICA, INC.

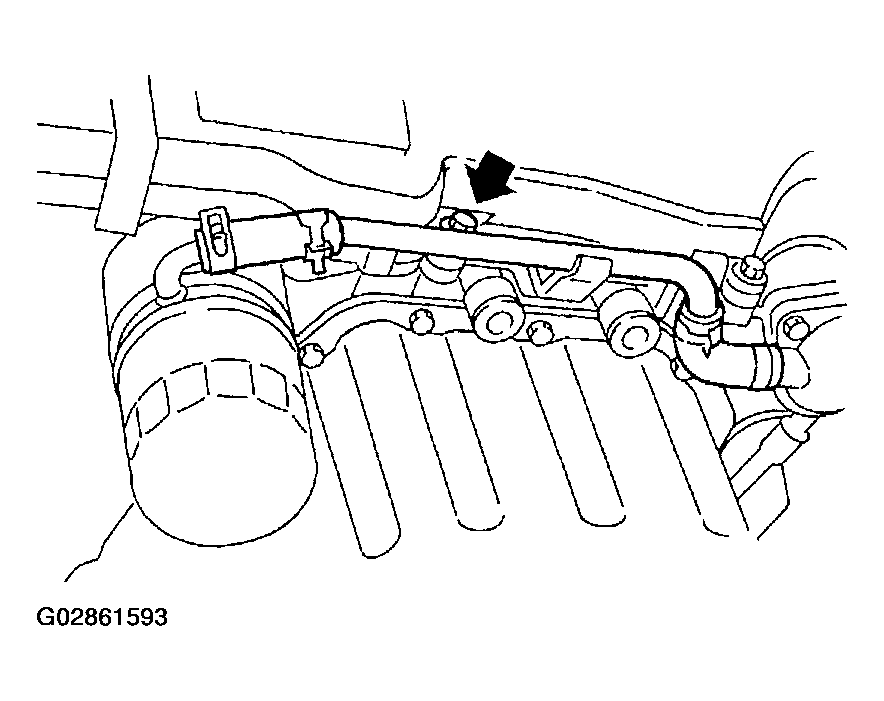

Remove bolt which installs water by-pass pipe of oil cooler onto oil pump. (AT vehicles only)

Fig 3: Removing Bolt Which Installs Water By-Pass Pipe Of Oil Cooler Onto Oil Pump
Courtesy of SUBARU OF AMERICA, INC.
Disconnect radiator outlet hose (A) and heater hose (B) from water pump.

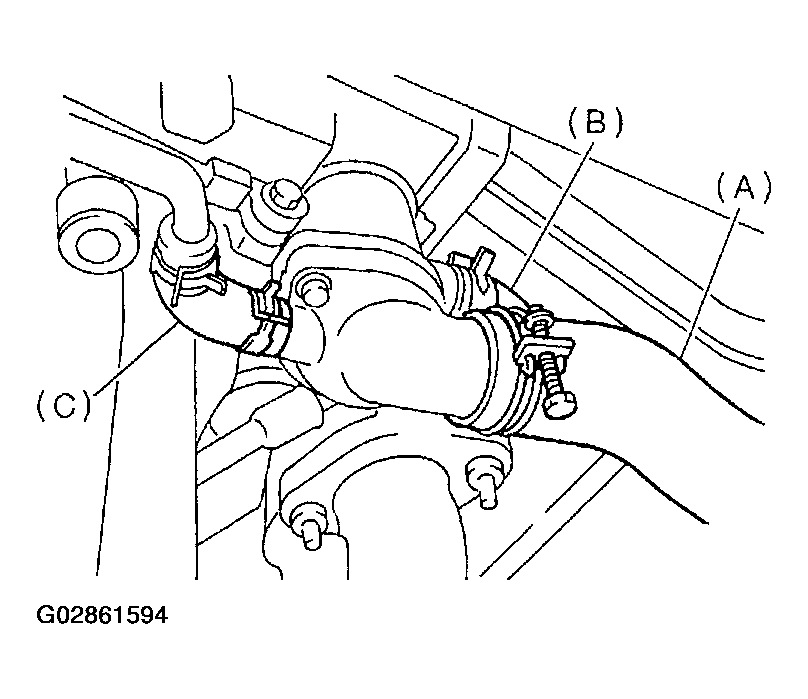

Fig 4: Disconnecting Radiator Outlet Hose And Heater Hose From Water Pump
Courtesy of SUBARU OF AMERICA, INC.
Disconnect water by-pass hose (C). (AT vehicles only)
Lower the vehicle.
Disconnect over flow hose.

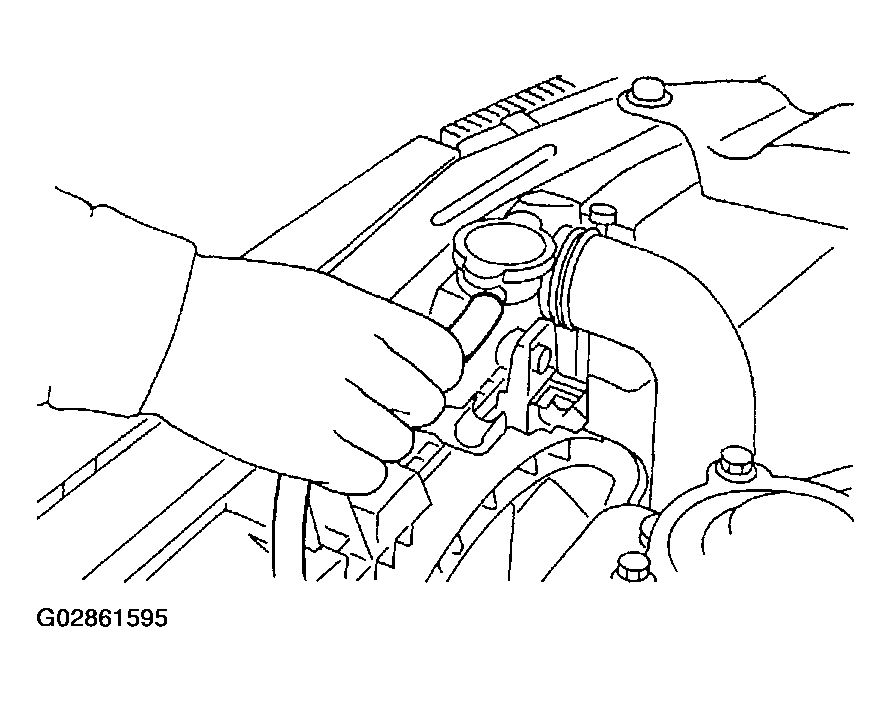

Fig 5: Disconnecting Over Flow Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove reservoir tank

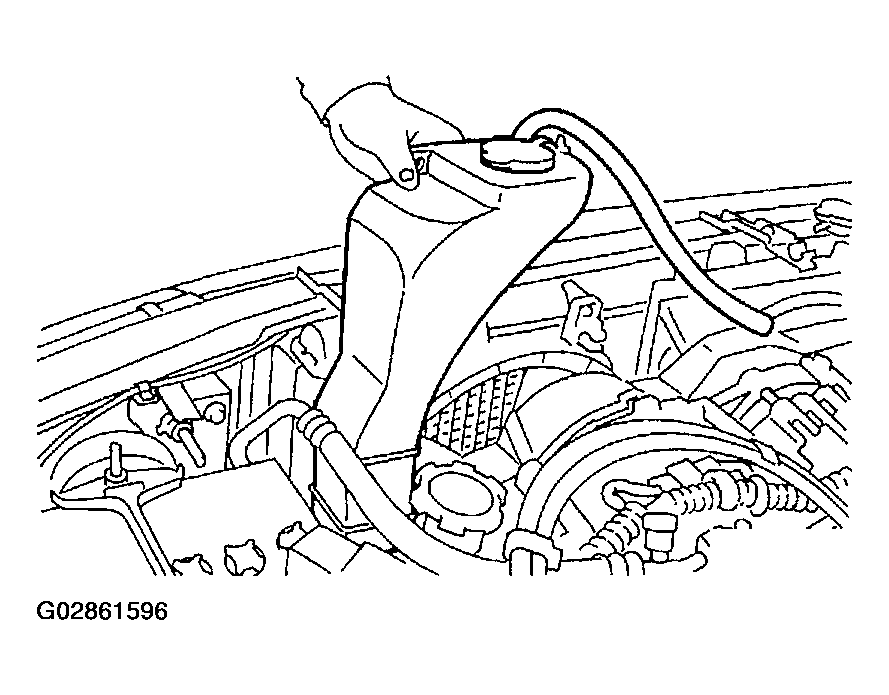

Fig 6: Removing Reservoir Tank
Courtesy of SUBARU OF AMERICA, INC.
Remove radiator main fan and sub fan assemblies. Refer to RADIATOR MAIN FAN AND FAN MOTOR and RADIATOR SUB FAN AND FAN MOTOR .
Remove V-belts. Refer to V-BELT .
Remove timing belt. Refer to TIMING BELT ASSEMBLY .
Remove automatic belt tension adjuster.

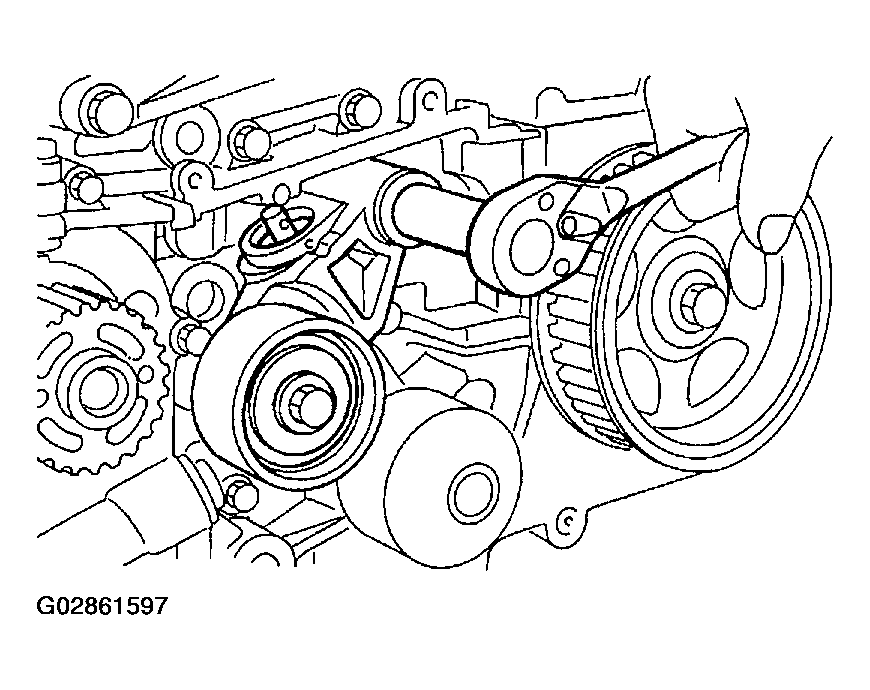

Fig 7: Removing Automatic Belt Tension Adjuster
Courtesy of SUBARU OF AMERICA, INC.
Remove belt idler No. 2.

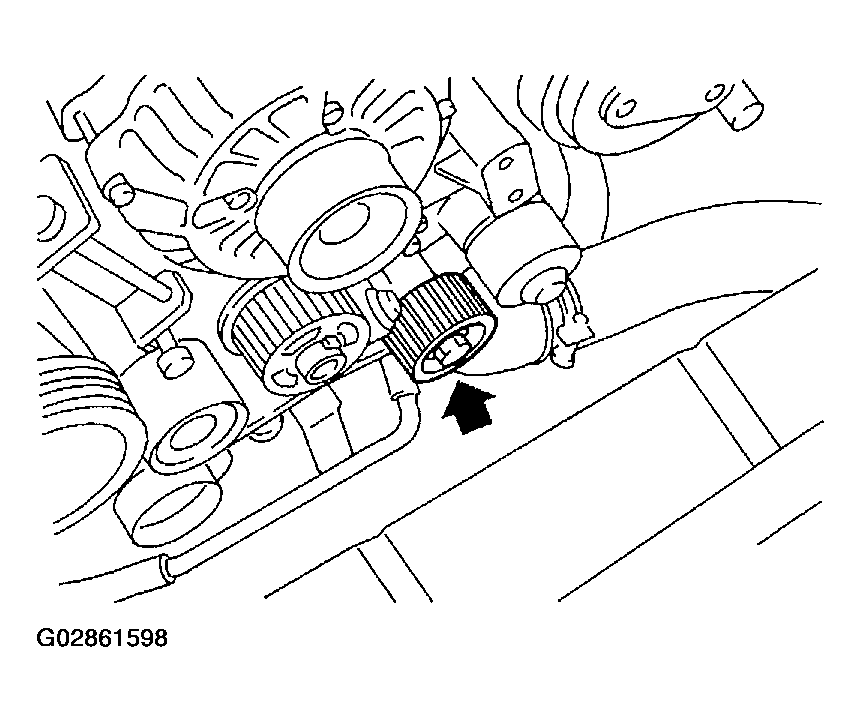

Fig 8: Removing Belt Idler No. 2
Courtesy of SUBARU OF AMERICA, INC.
Remove camshaft position sensor. Refer to CAMSHAFT POSITION SENSOR .
Remove left-hand camshaft sprocket by using ST.
ST 499207100: CAMSHAFT SPROCKET WRENCH

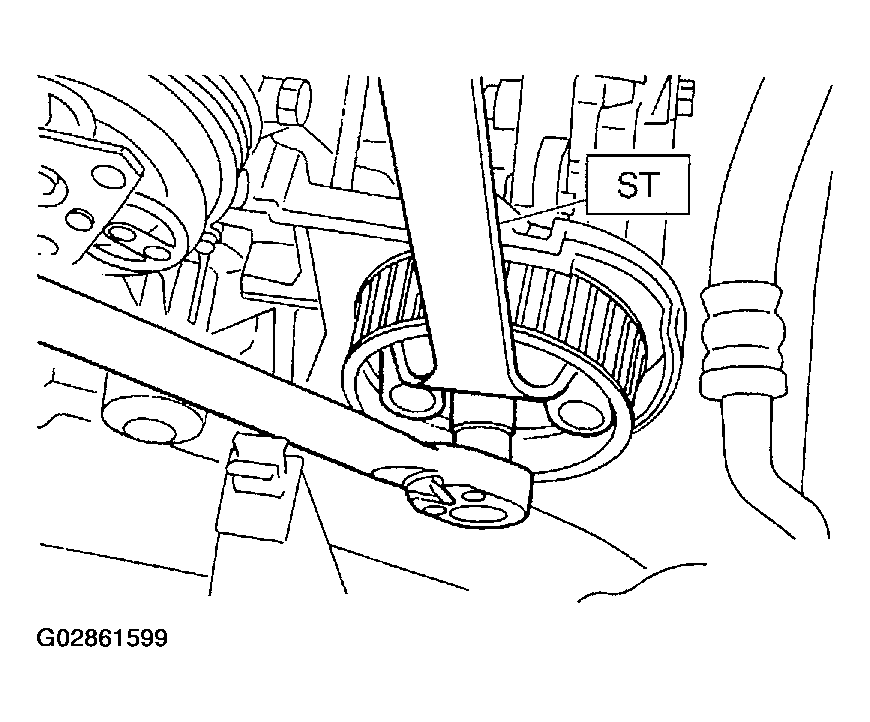

Fig 9: Removing Left-Hand Camshaft Sprocket
Courtesy of SUBARU OF AMERICA, INC.

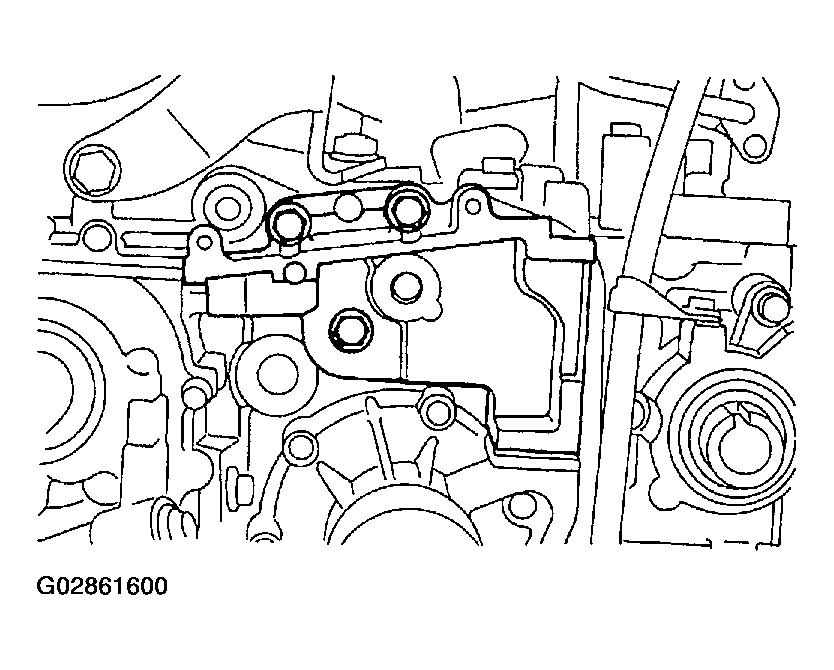

Remove tensioner bracket.

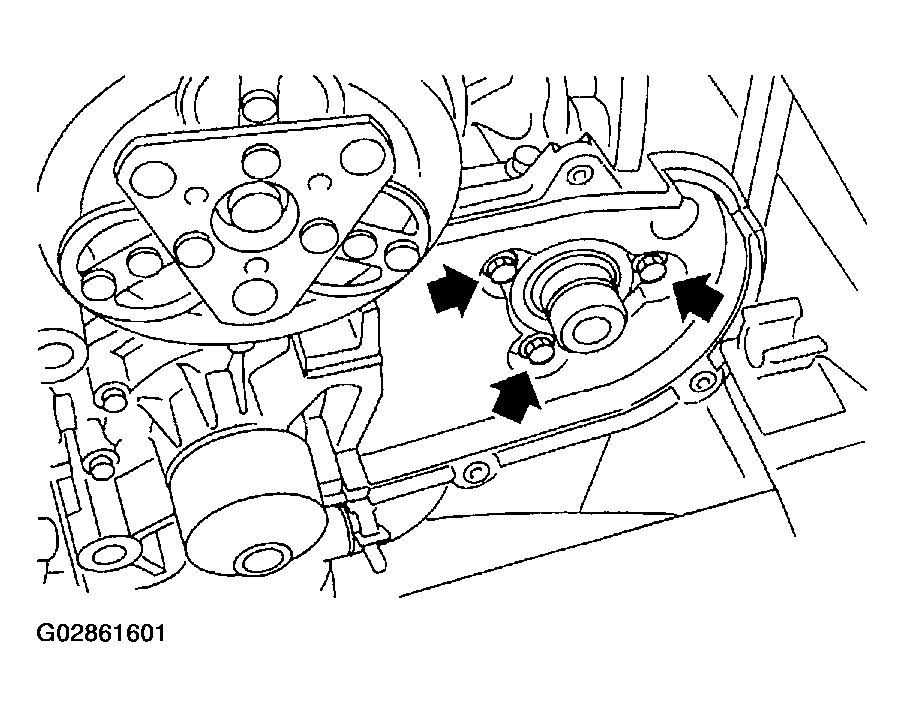

Fig 10: Removing Tensioner Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove left-hand belt cover No. 2.

Fig 11: Removing Left-Hand Belt Cover No. 2
Courtesy of SUBARU OF AMERICA, INC.
Remove water pump.

Fig 12: Removing Water Pump
Courtesy of SUBARU OF AMERICA, INC.
