Cooling Fan: Cooling: Thermostat: Installation

Install the thermostat in the water pump, and install the thermostat cover together with a gasket,
CAUTION:
- When reinstalling the thermostat, use a new gasket.
- The thermostat must be installed with the jiggle pin (A) facing to front side.
- At this time, set the jiggle pin of thermostat for front side.
Tightening torque: 6.4 N.m (0.65 kgf-m, 4.7 ft-lb)

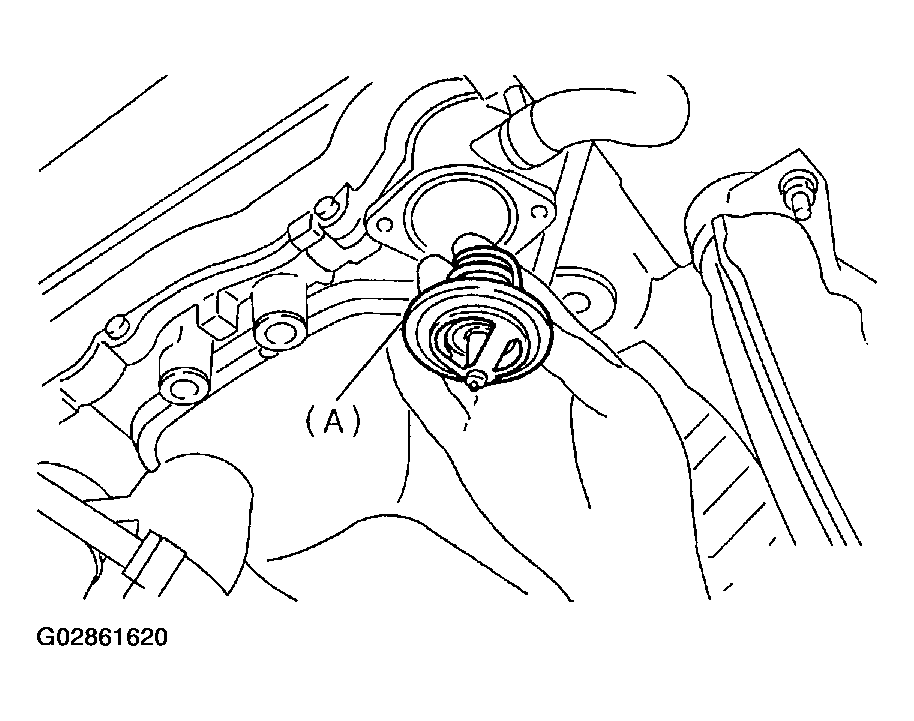

Fig 1: Installing Thermostat
Courtesy of SUBARU OF AMERICA, INC.
Fill coolant. Refer to FILLING OF ENGINE COOLANT .
