Home >> Subaru >> 2002 >> Forester Base >> Repair and Diagnosis >> Engine Mechanical >> Cooling Fan >> Cooling >> Reservoir Tank >> Removal

Reservoir Tank: Removal

  1. Disconnect over flow hose from radiator filler neck position.
  2. Remove bolts which install reservoir tank onto radiator main fan shroud.
  3. Remove reservoir tank.

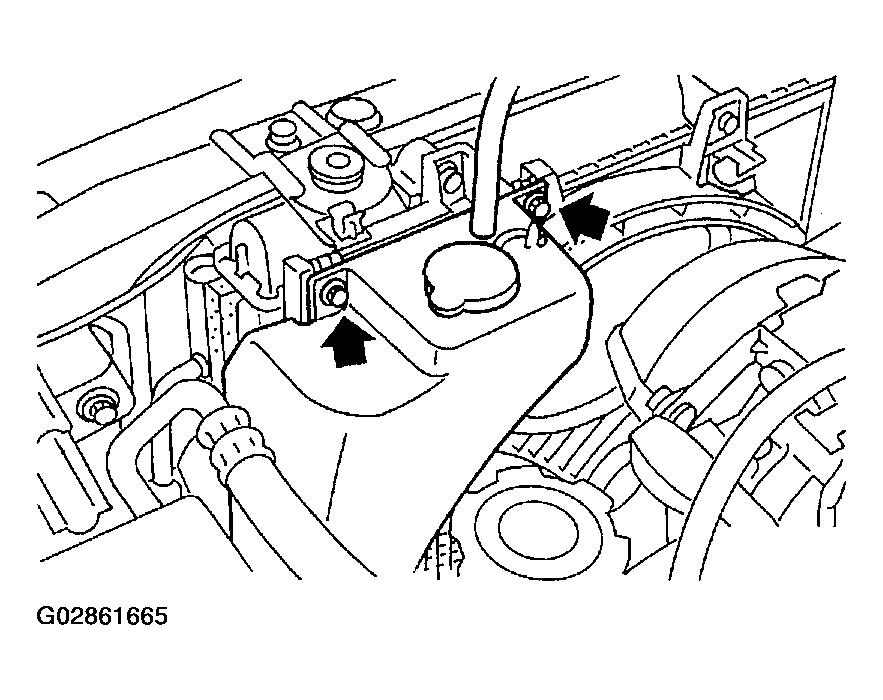

    Fig 1: Removing Reservoir Tank
    G02861665Courtesy of SUBARU OF AMERICA, INC.
