Home >> Subaru >> 2002 >> Forester Base >> Repair and Diagnosis >> Engine Mechanical >> Cooling Fan >> Cooling >> Engine Cooling System Trouble in General >> Inspection

Engine Cooling System Trouble in General: Inspection

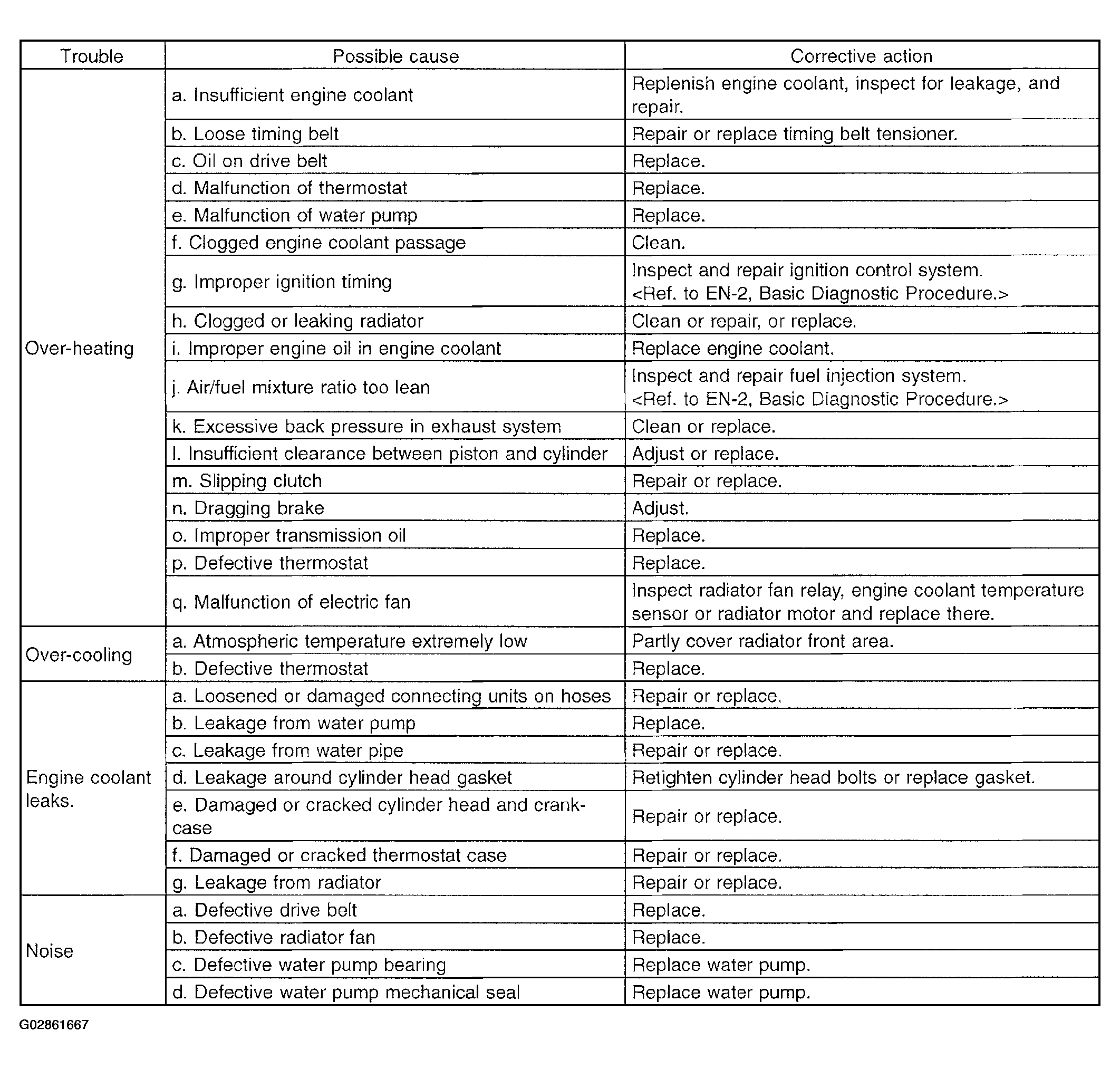

Fig 1: Engine Cooling System Trouble Symptoms Diagnostic Chart

G02861667

Courtesy of SUBARU OF AMERICA, INC.
