Home >> Subaru >> 2002 >> Forester Base >> Repair and Diagnosis >> Electrical >> Horns >> Horn System >> Horn >> Removal

Horn System: Horn: Removal

  1. Disconnect ground cable from battery.
  2. Remove horn bracket mounting bolt (A).
  3. Disconnect harness connector and remove horn assembly (B).

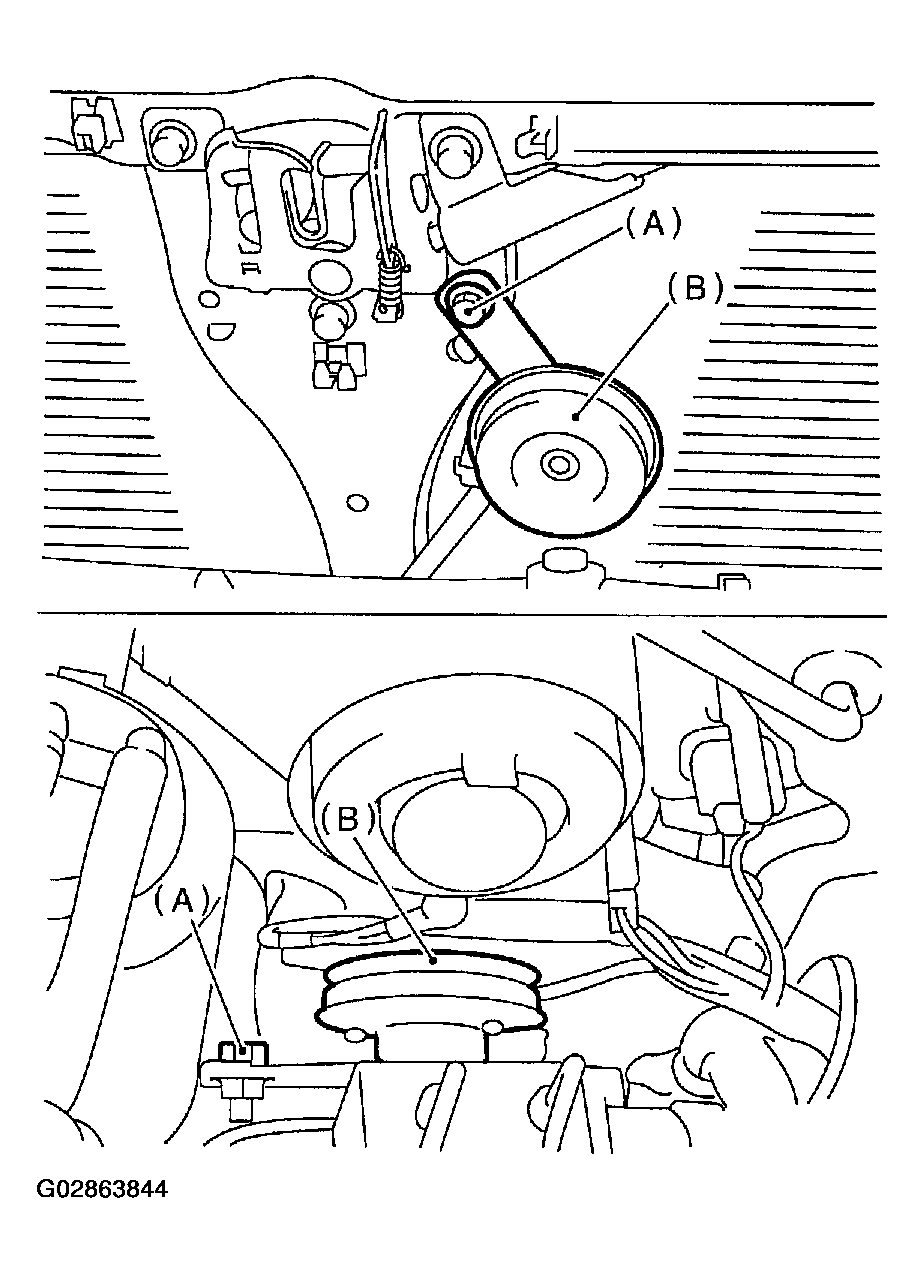

    Fig 1: Removing Horn Assembly
    G02863844Courtesy of SUBARU OF AMERICA, INC.
