Horn Switch: Removal

WARNING: Before servicing, be sure to read the notes in the AB section for proper handling of the driver airbag module. Refer to AIR BAG RESTRAINT SYSTEMS .
  1. Disconnect ground cable from battery.
  2. Remove the driver's airbag module. Refer to REMOVAL & INSTALLATION , Driver's Airbag Module.
  3. Remove horn switch from the steering wheel as shown.

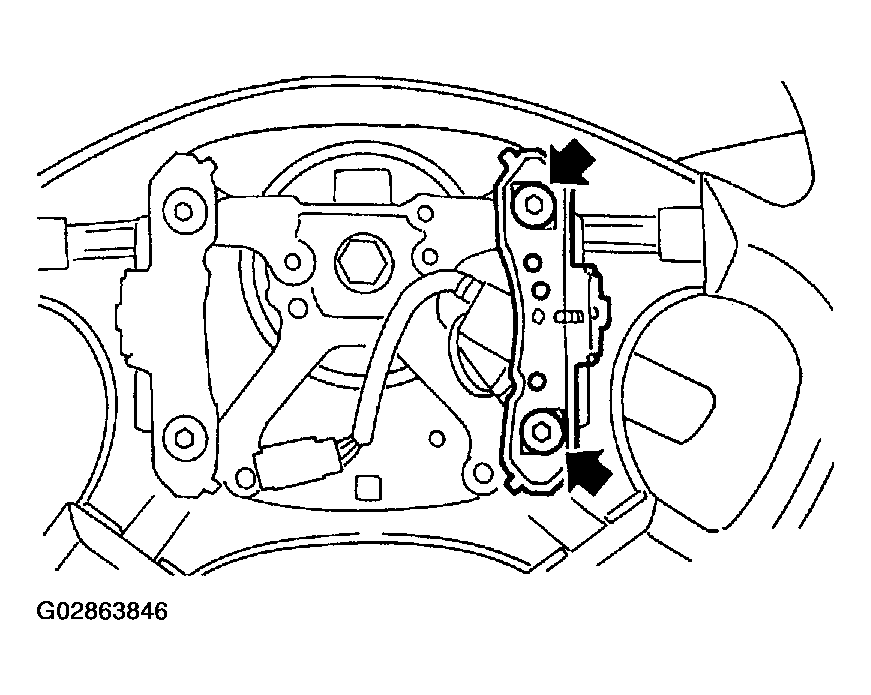

    Fig 1: Removing Horn Switch
    G02863846Courtesy of SUBARU OF AMERICA, INC.
