Circuit Diagram

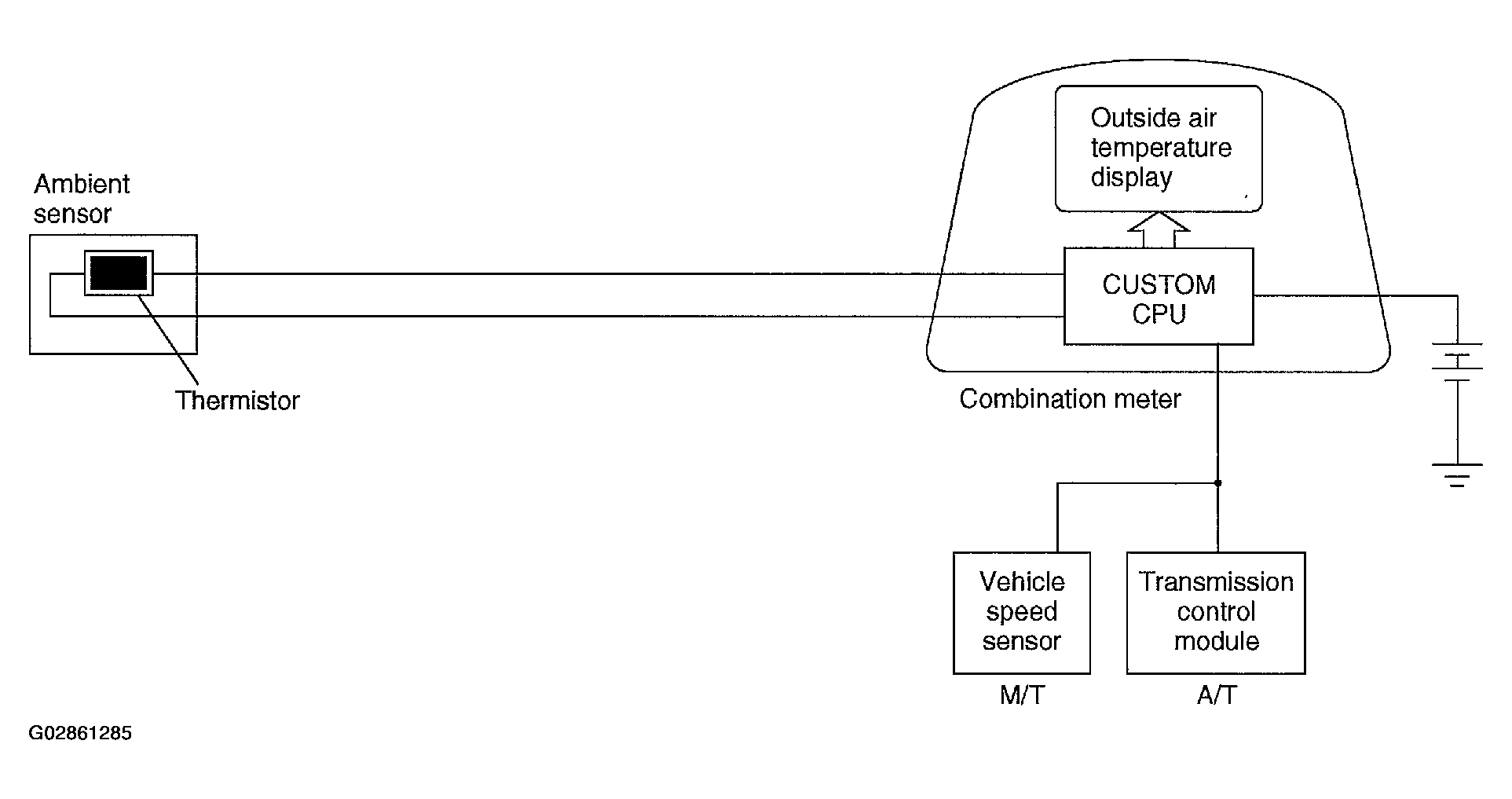

Fig 1: Outside Air Temperature Display System Schematic

G02861285

Courtesy of SUBARU OF AMERICA, INC.
