Rear Differential: Installation

To install, reverse the removal sequence.

1. Install the air breather cap tapping with a plastic hammer.
   CAUTION: Be sure to install new air breather cap.
2. Position front member on body by passing it under parking brake cable and securing to rear differential.
   NOTE: When installing rear differential front member, do not confuse the installation sequence of the upper and lower stoppers.
3. Install DOJ of rear drive shaft into rear differential.

   ST 28099PA090 SIDE OIL SEAL PROTECTOR

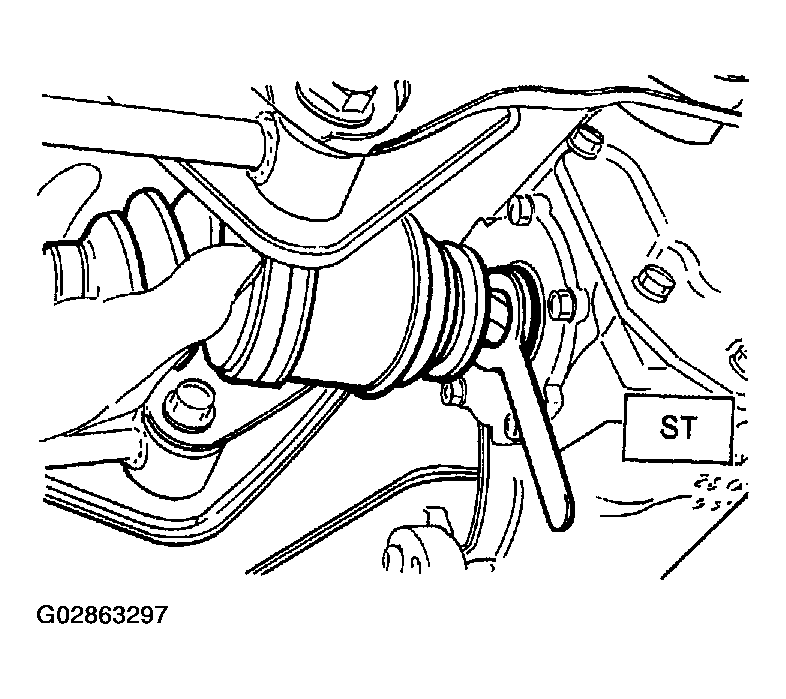

   Fig 1: Installing DOJ Of Rear Drive Shaft Into Rear Differential

   Courtesy of SUBARU OF AMERICA, INC.
4. Install in the reverse order of removal.
5. After installing rear differential carrier on vehicle, remove filler plug and replenish gear oil up. Refer to DIFFERENTIAL GEAR OIL .
