Home >> Subaru >> 2002 >> Forester Base >> Repair and Diagnosis >> Drivelines & Axles >> Differentials & Drive Axles >> Differentials >> General Diagnostic Table >> Inspection

General Diagnostic Table: Inspection

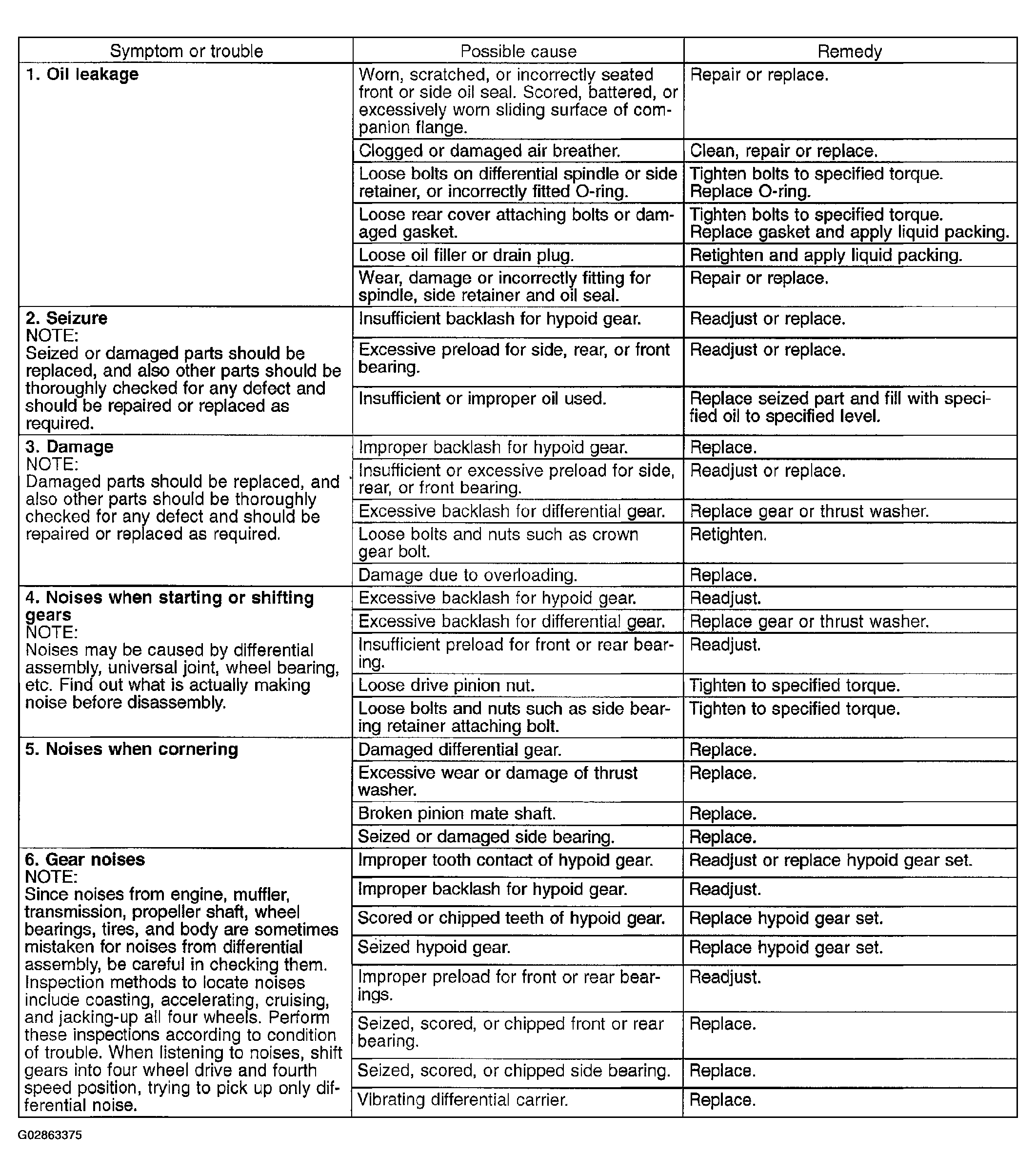

Fig 1: Identifying Symptom Chart

G02863375

Courtesy of SUBARU OF AMERICA, INC.
