Axle Shafts - Front: Description

For exploded view of axle shaft assembly, see Fig 1.

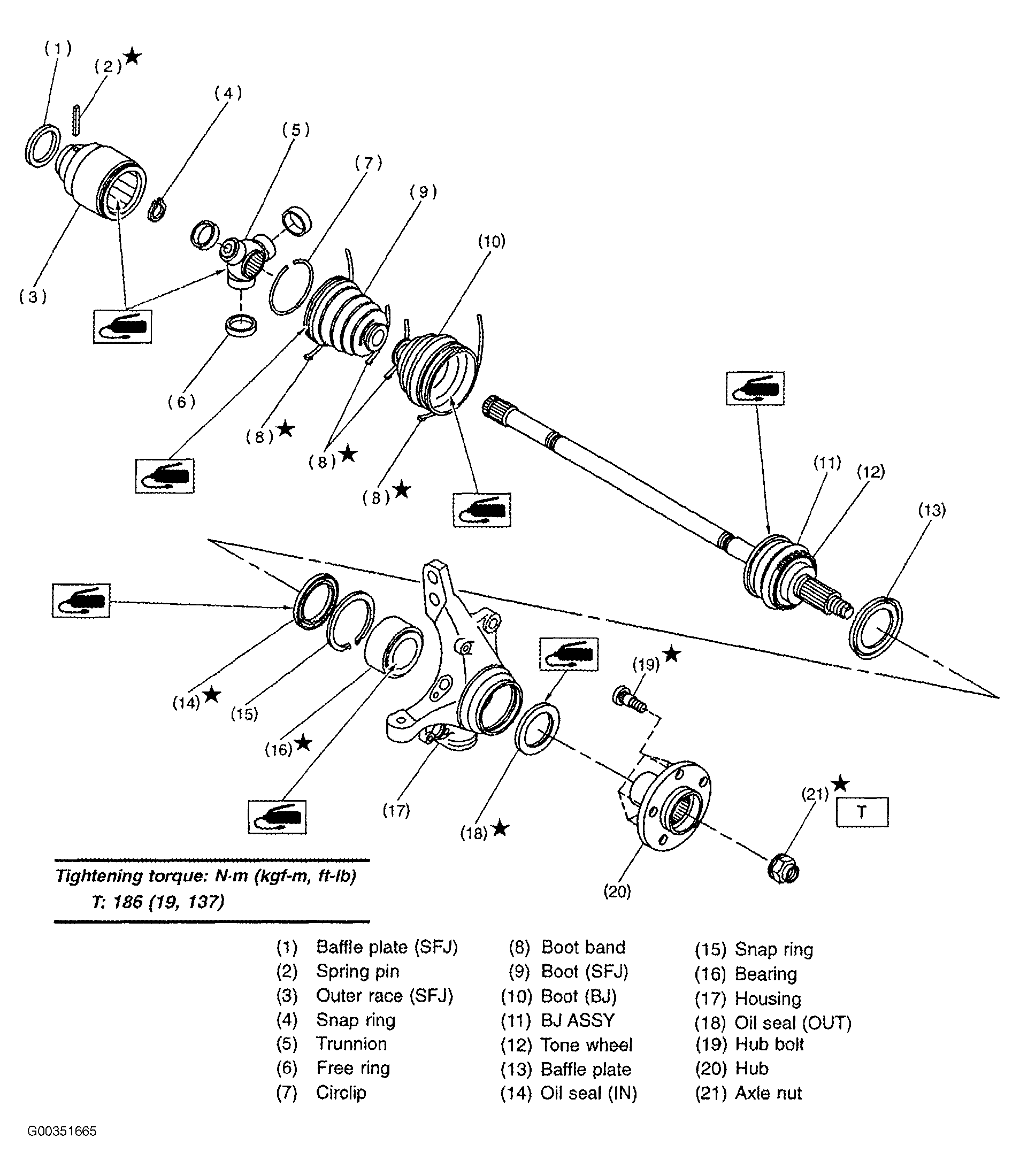

Fig 1: Identifying Front Axle Shaft
G00351665Courtesy of SUBARU OF AMERICA, INC.
