Abs Control Module And Hydraulic Control Unit (ABSCM & H/U)

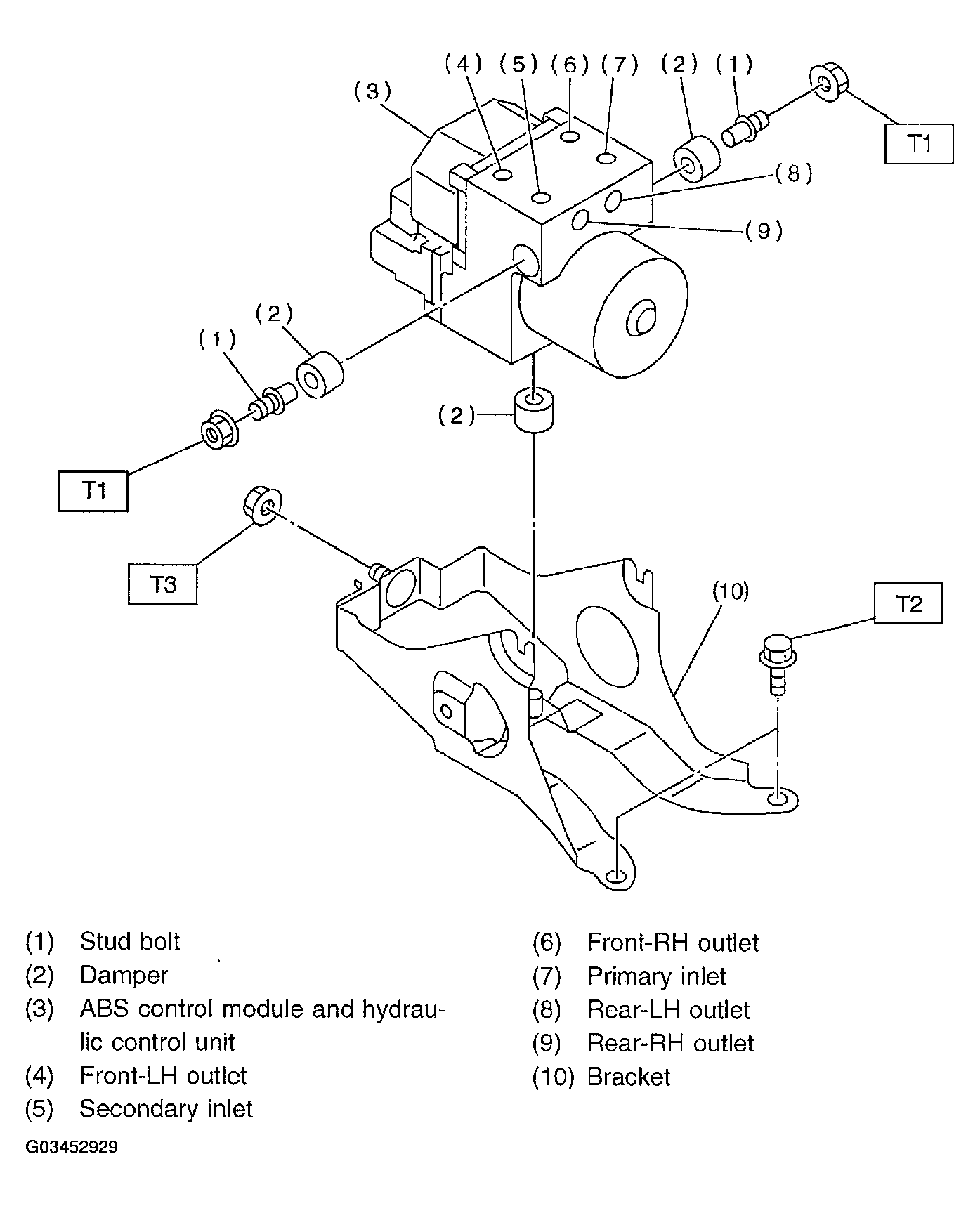

Fig 1: Identifying ABS Control Module And Hydraulic Control Unit (ABSCM & H/U) Components

G03452929

Courtesy of SUBARU OF AMERICA, INC.
