Without SUBARU Select Monitor

  1. Take out diagnosis connector from side of driver's seat heater unit.
  2. Turn ignition switch OFF.
  3. Connect diagnosis connector terminal 6 to diagnosis terminal.
  4. Turn ignition switch ON.
  5. ABS warning light is set in the diagnostic mode and blinks to identify trouble code.
    Fig 1: Removing Diagnosis Connector From Side Of Driver's Seat Heater Unit
    G02891414Courtesy of SUBARU OF AMERICA, INC.
  6. After the start code (11) is shown, the diagnostic trouble codes (DTC) will be shown in order of the last information first.

    These repeat for a maximum of 3 minutes.

    NOTE:
    • When there are no diagnostic trouble codes (DTCs) in memory, only the start code (11) is shown.
    • When on-board diagnosis of the ABS control module detects a problem, the information (up to a maximum of three) will be stored in the EEPROM as a diagnostic trouble code (DTC). When there are more than three, the most recent three will be stored. (Stored codes will stay in memory until they are cleared.)

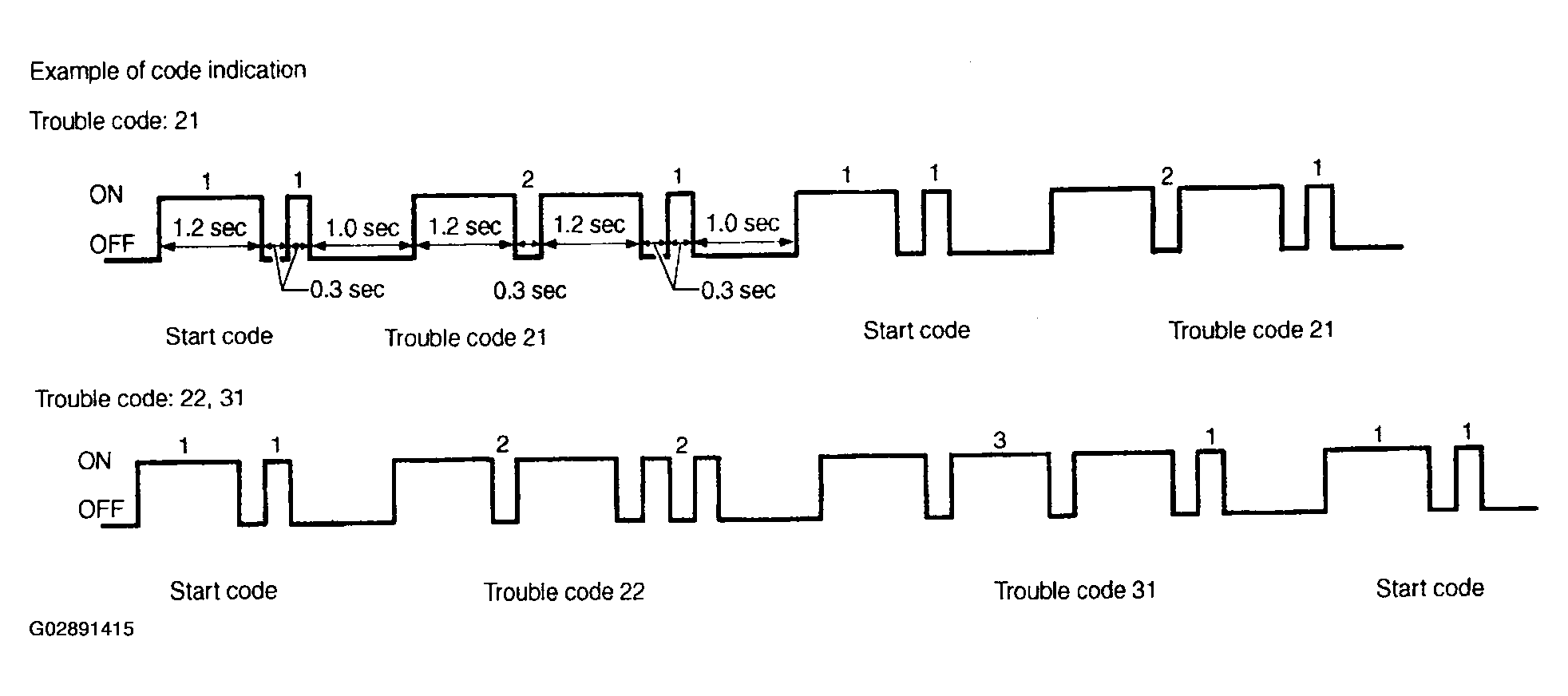

    Fig 2: Example Of Code Indication
    G02891415Courtesy of SUBARU OF AMERICA, INC.
