Diagnostic Procedures:

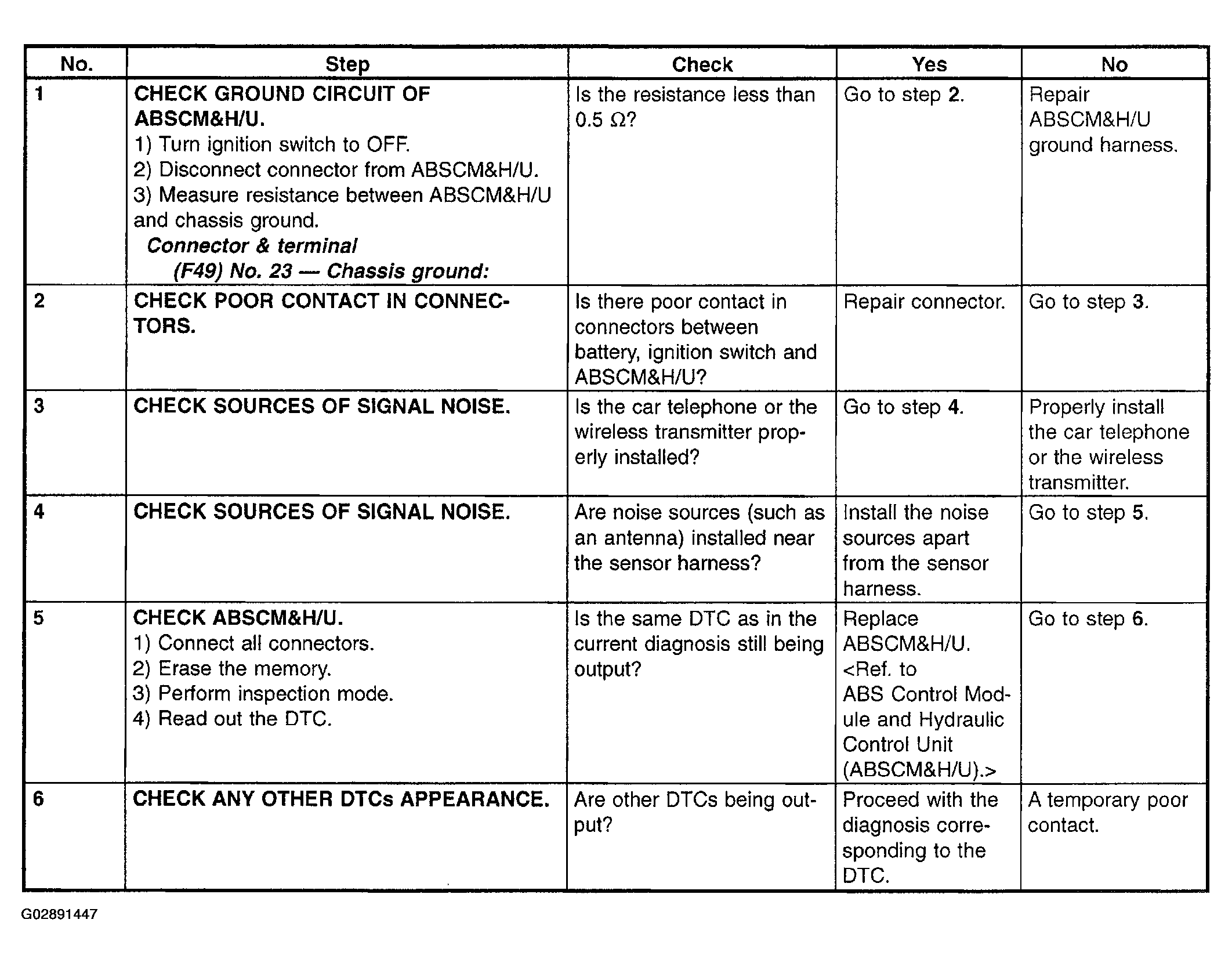

Fig 1: Abnormal ABS Control Module Wiring Diagram Diagnostic Procedure Chart

G02891447

Courtesy of SUBARU OF AMERICA, INC.
