Roof Trim: Removal

CAUTION: When removing clip, use great care not to damage the roof trim.

Disconnect ground cable from battery.
Remove head console.

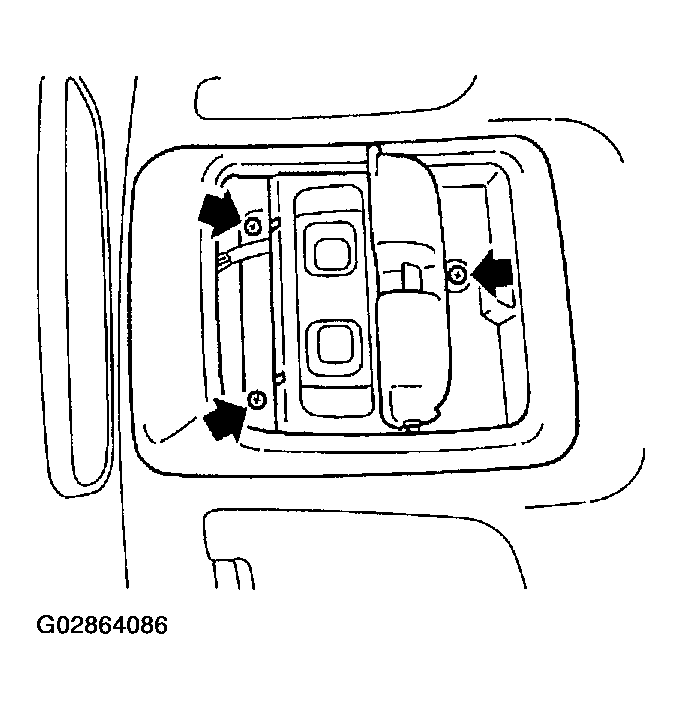

Fig 1: Removing Head Console
Courtesy of SUBARU OF AMERICA, INC.
Remove sun visor and hook of both sides. Refer to REMOVAL , Sun Visor.
Remove assist grips (A).

Fig 2: Removing Assist Grips
Courtesy of SUBARU OF AMERICA, INC.
Remove upper inner trim. Refer to REMOVAL , Upper Inner Trim.
Remove rear quarter trim. Refer to REMOVAL , Rear Quarter Trim.
Detach sunroof garnish (A). (Sunroof equipped model)

Fig 3: Detaching Sunroof Garnish (Sunroof Equipped Model)
Courtesy of SUBARU OF AMERICA, INC.
Remove cover (B) while detaching snap lock carefully. Put the rear seat belt tongue (A) out to the other side of the trim through the hole.

Fig 4: Putting Rear Seat Belt Tongue Out To Other Side Of Trim
Courtesy of SUBARU OF AMERICA, INC.
Remove clips and then remove roof trim.

Fig 5: Removing Clips & Roof Trim
Courtesy of SUBARU OF AMERICA, INC.
