Front Door Trim: Removal

CAUTION: Do not apply excessive force to clip. Otherwise the clip may be broken.
  1. Remove gusset cover (A), power window switch assembly (B) and pocket (C).
  2. Remove screws, and then detach trim panel.

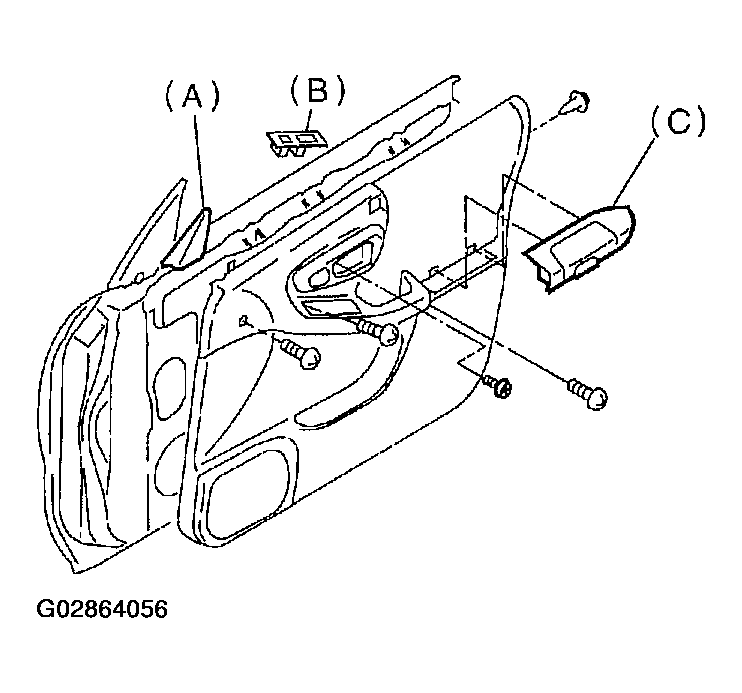

    Fig 1: Removing Front Door Trim
    G02864056Courtesy of SUBARU OF AMERICA, INC.
