Check Power Supply And Ground Circuit
Check Power Supply And Ground Circuit

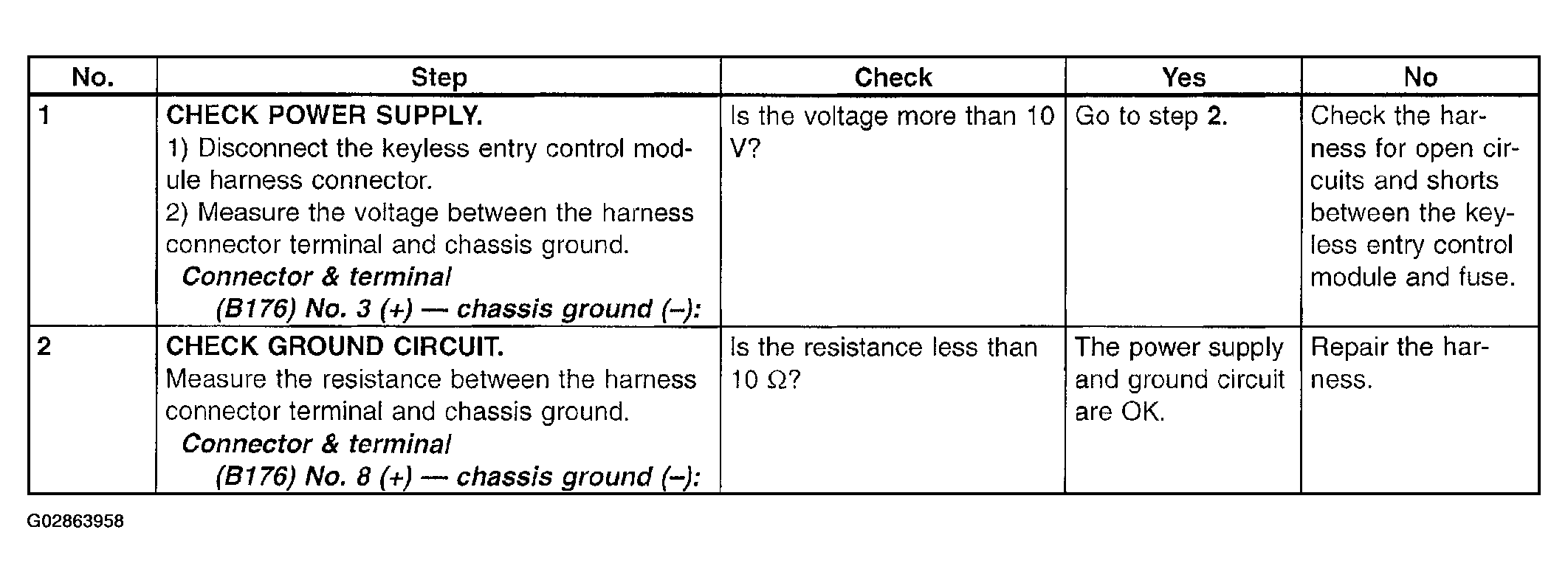

Fig 1: Checking Power Supply & Ground Circuit Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
