Check Key Warning Switch
Check Key Warning Switch

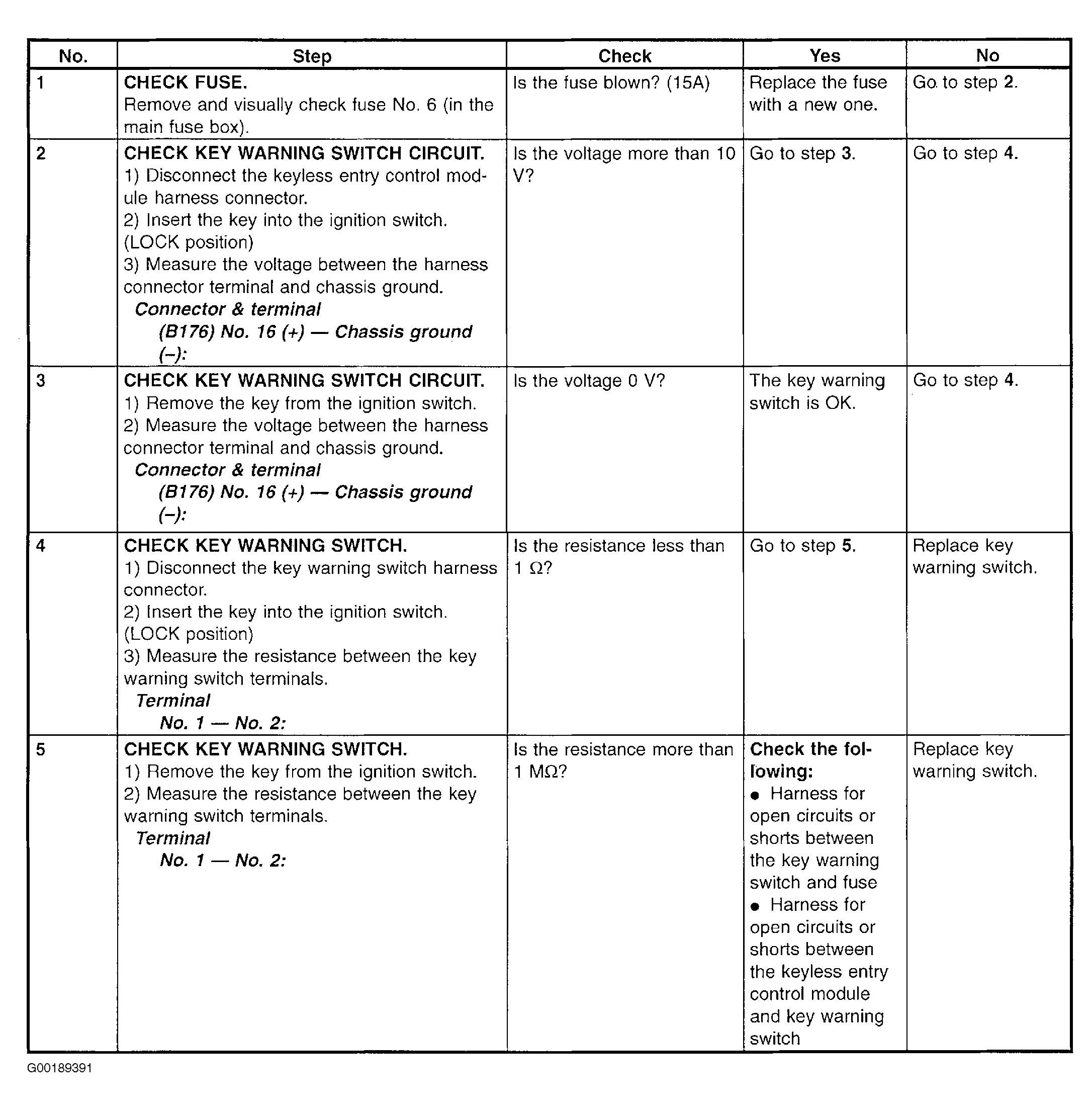

Fig 1: Check Key Warning Switch (Testing Procedure)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
