Check Horn Operation
Check Horn Operation

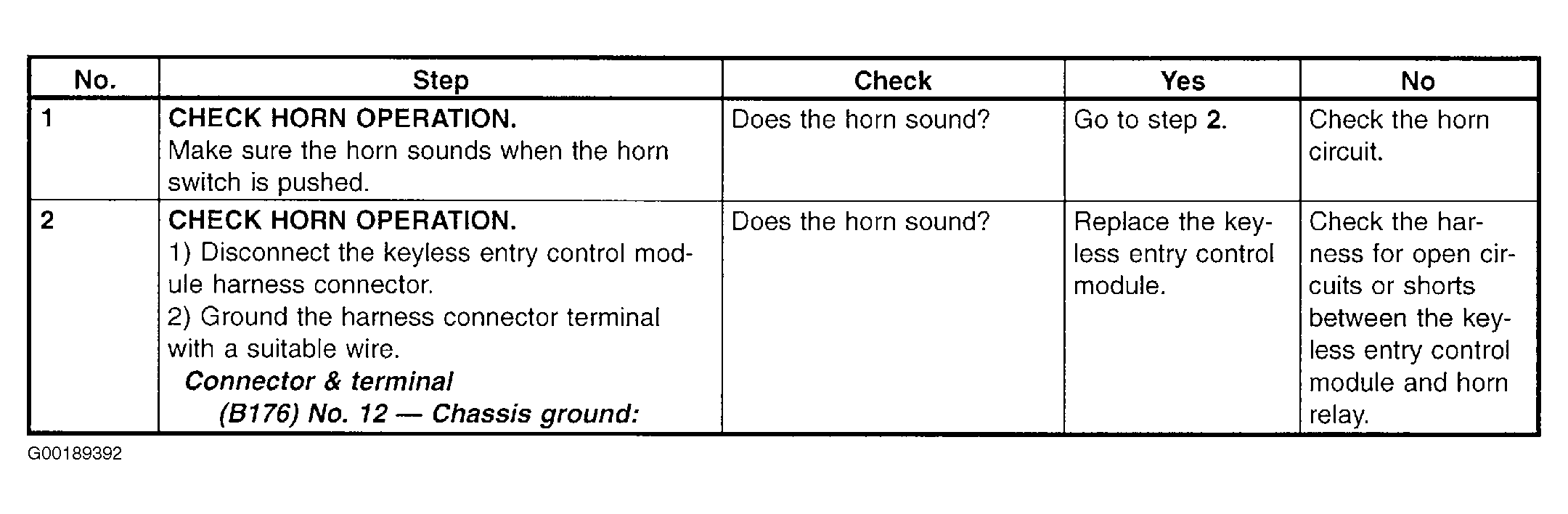

Fig 1: Check Horn Operation (Testing Procedure)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
