Check Horn Chirp Setting
Check Horn Chirp Setting

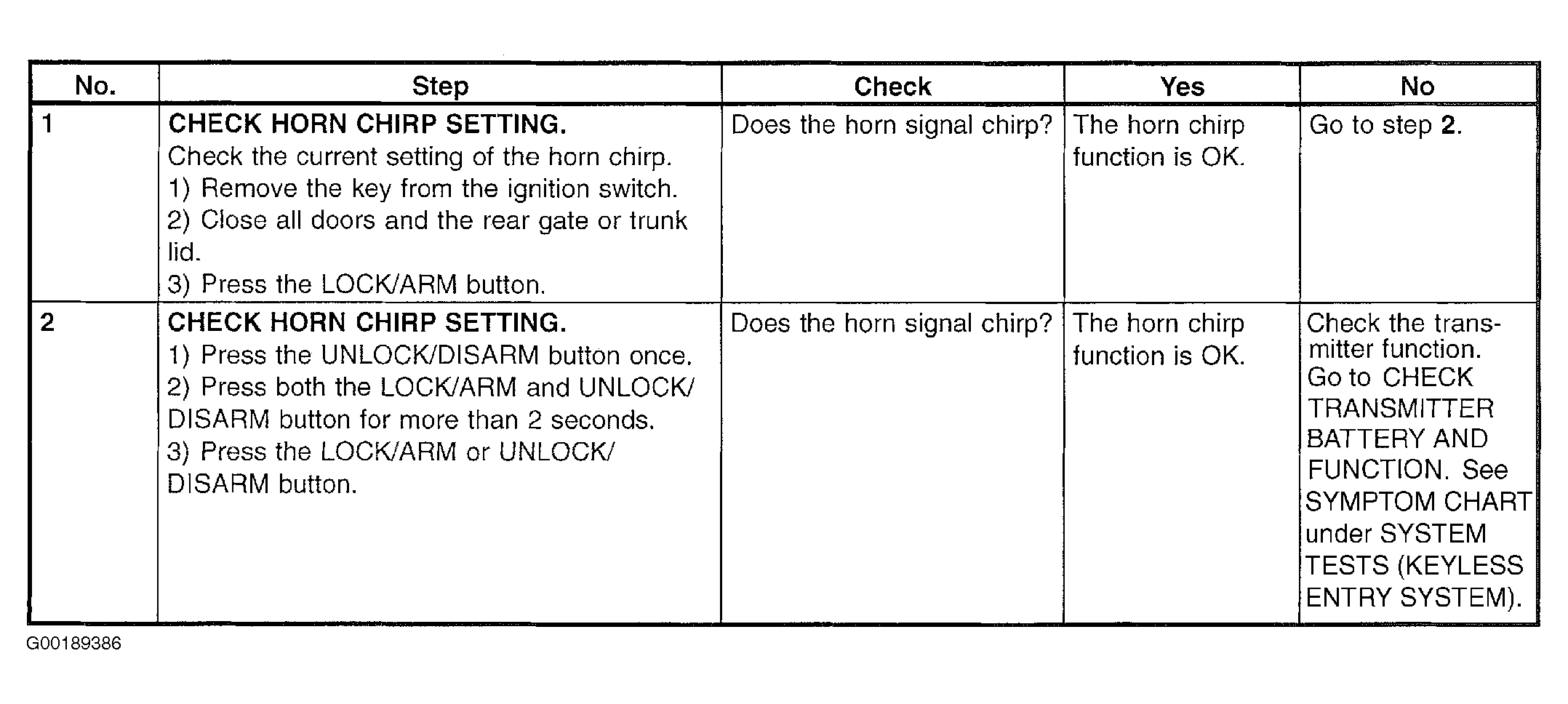

Fig 1: Check Horn Chirp Setting (Testing Procedure) - Legacy/Outback Is Shown; Forester Is Similar
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
