Check Door Switch
Check Door Switch

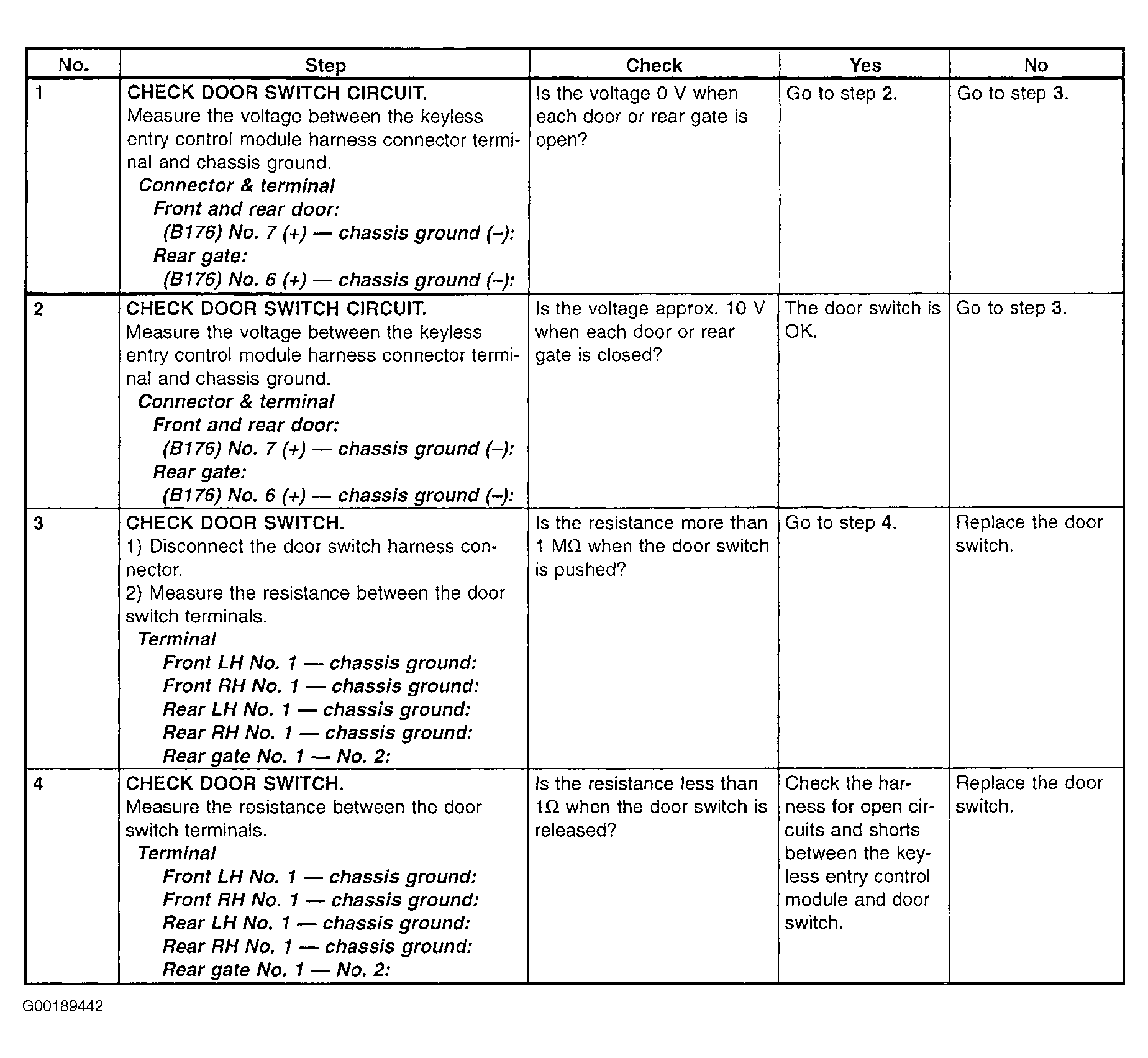

Fig 1: Check Door Switch (Testing Procedure)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
