Component Locations

COMPONENT LOCATIONS

Component Location
Door Lock Actuators Inside door
Door Lock Switch Inside compartment door panels
Horn Relay Fig 3 In main fuse box under hood
Interrupt Relay Fig 3 Behind the fuse box, left side of engine compartment
Keyless Entry Control Module Fig 3 Below left side of dash
Main Fuse Box Behind dash, left of steering column
Passive Arm Connector Fig 3 On driver side front lower pillar, near wheel
Rear Gate Latch Switch In rear gate
Security Control Module Fig 3 Below left side of dash
Security Indicator Light Fig 3 In combination meter

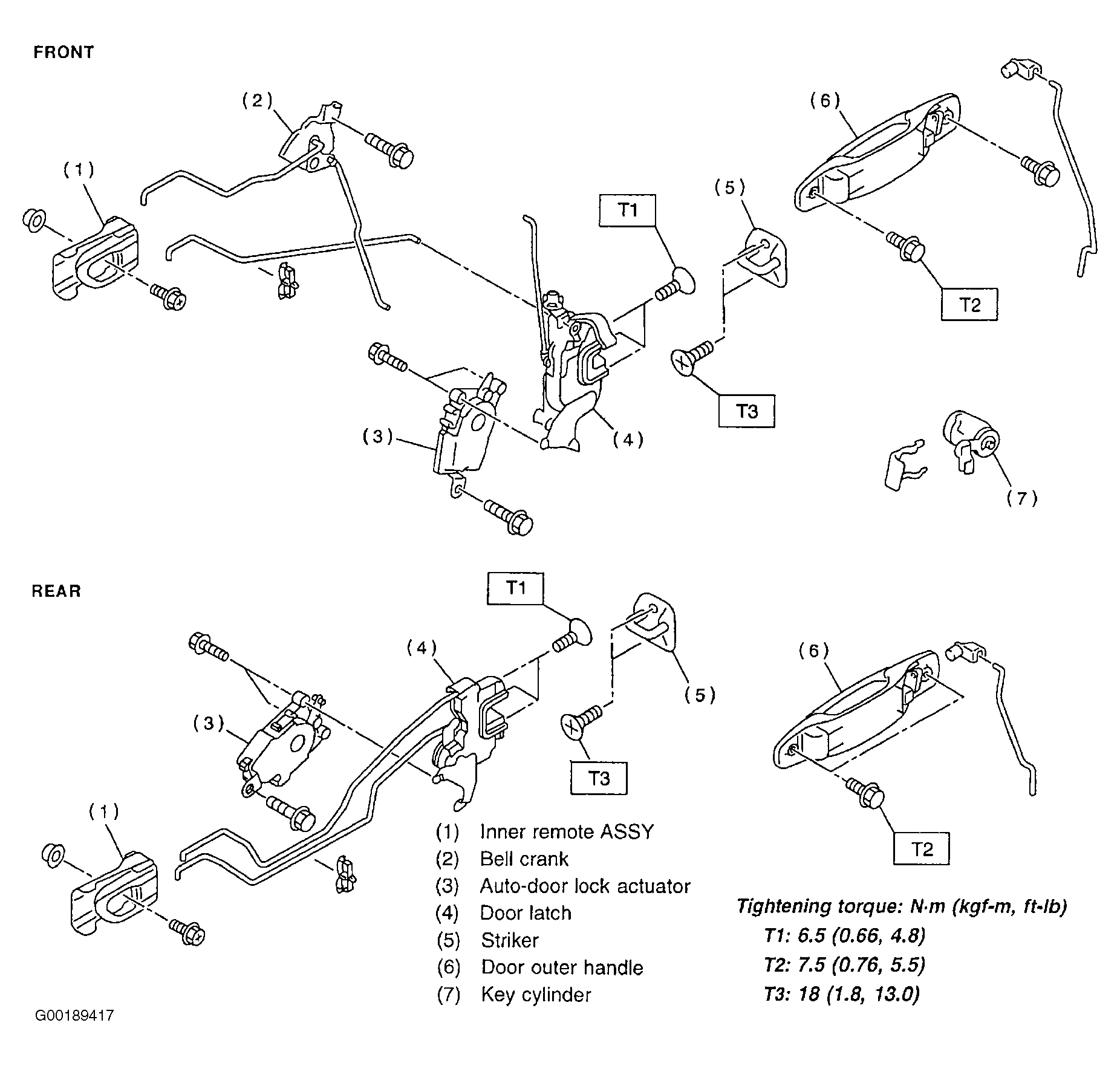

Fig 1: Locating Door Lock Assembly Components
G00189417Courtesy of SUBARU OF AMERICA, INC.

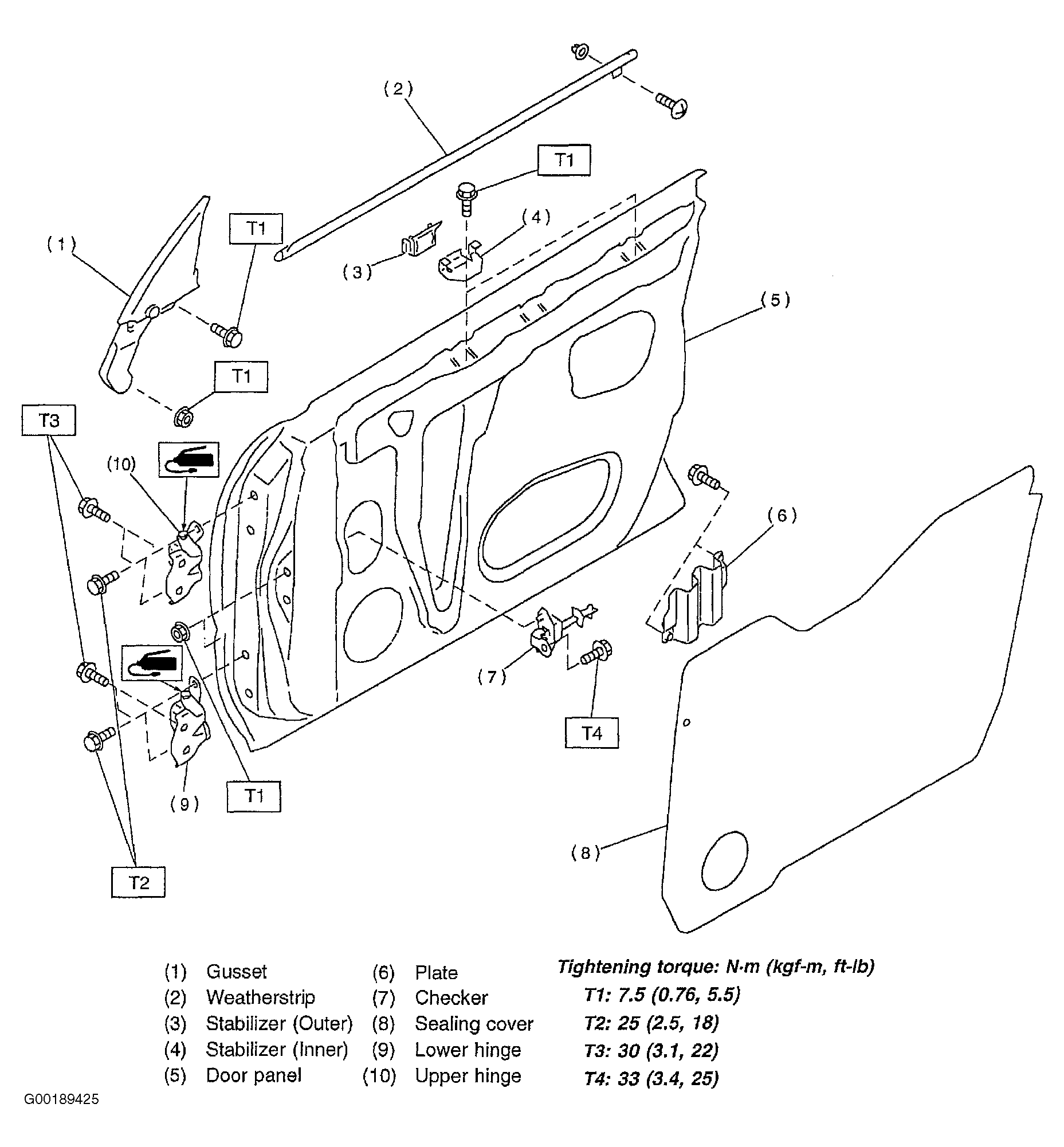

Fig 2: Locating Front Door Panel Components
G00189425Courtesy of SUBARU OF AMERICA, INC.
Fig 3: Locating Keyless Entry & Security System Components
G00189419Courtesy of SUBARU OF AMERICA, INC.

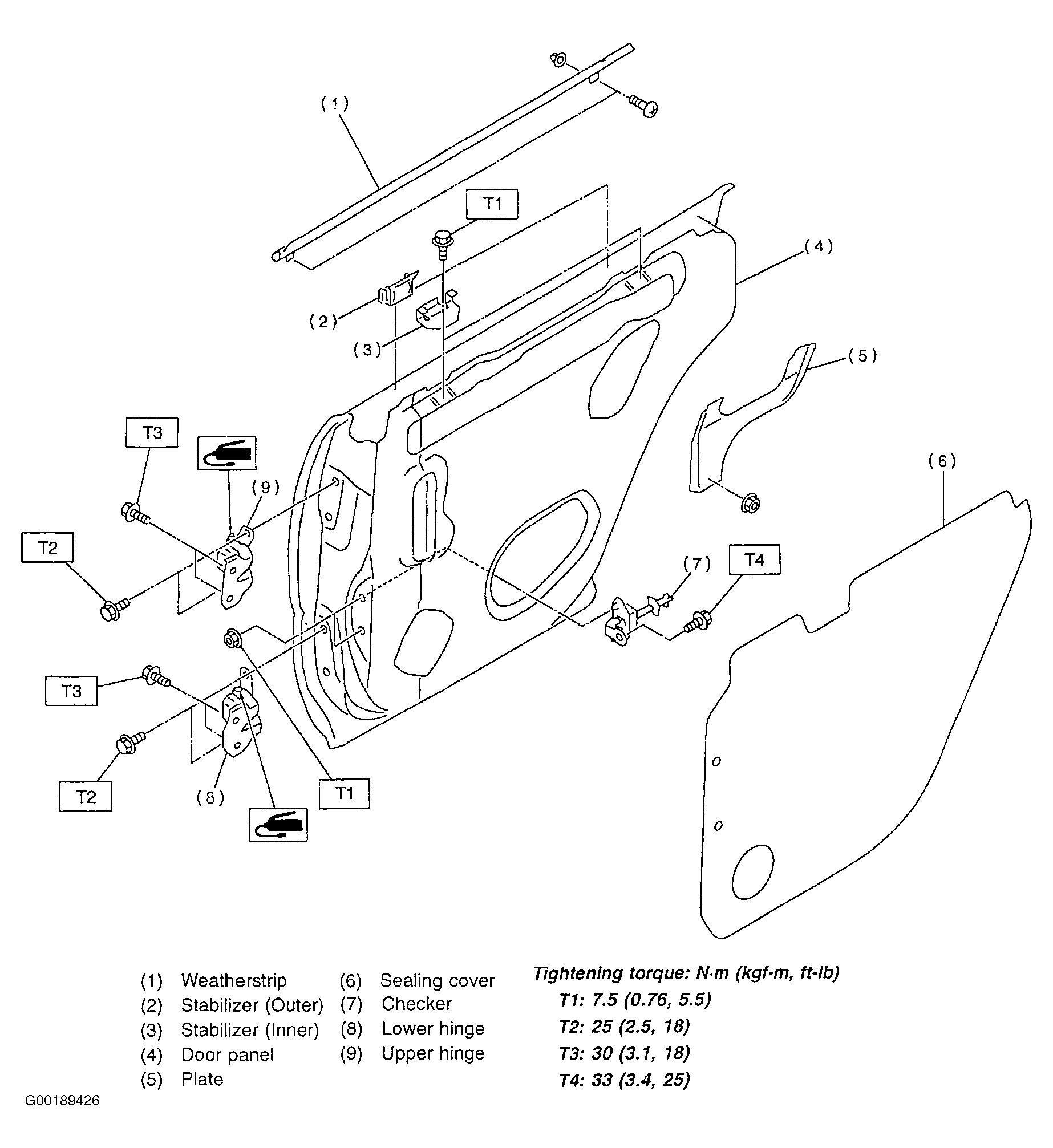

Fig 4: Locating Rear Door Panel Components
G00189426Courtesy of SUBARU OF AMERICA, INC.

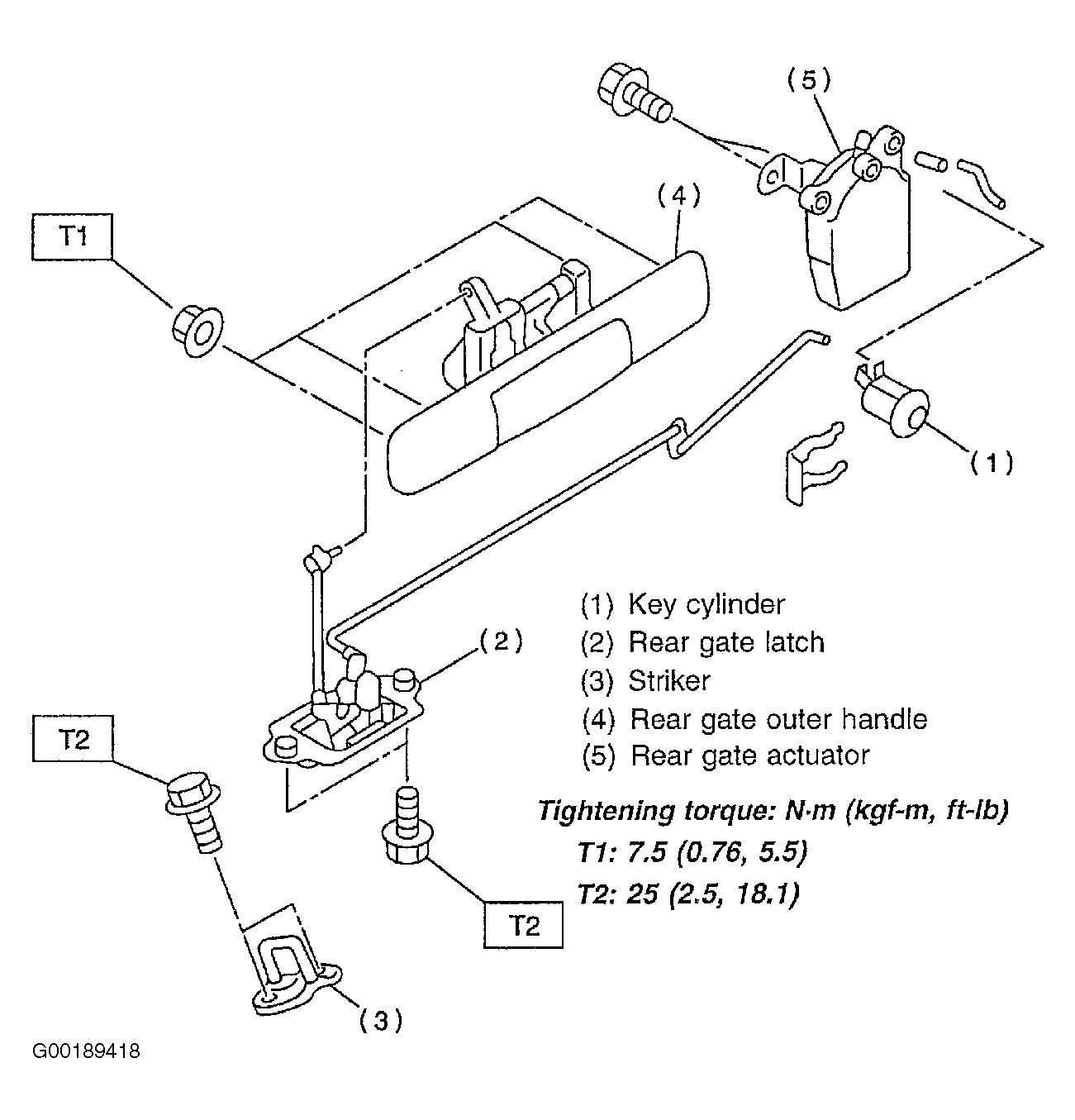

Fig 5: Locating Rear Gate Lock Components
G00189418Courtesy of SUBARU OF AMERICA, INC.

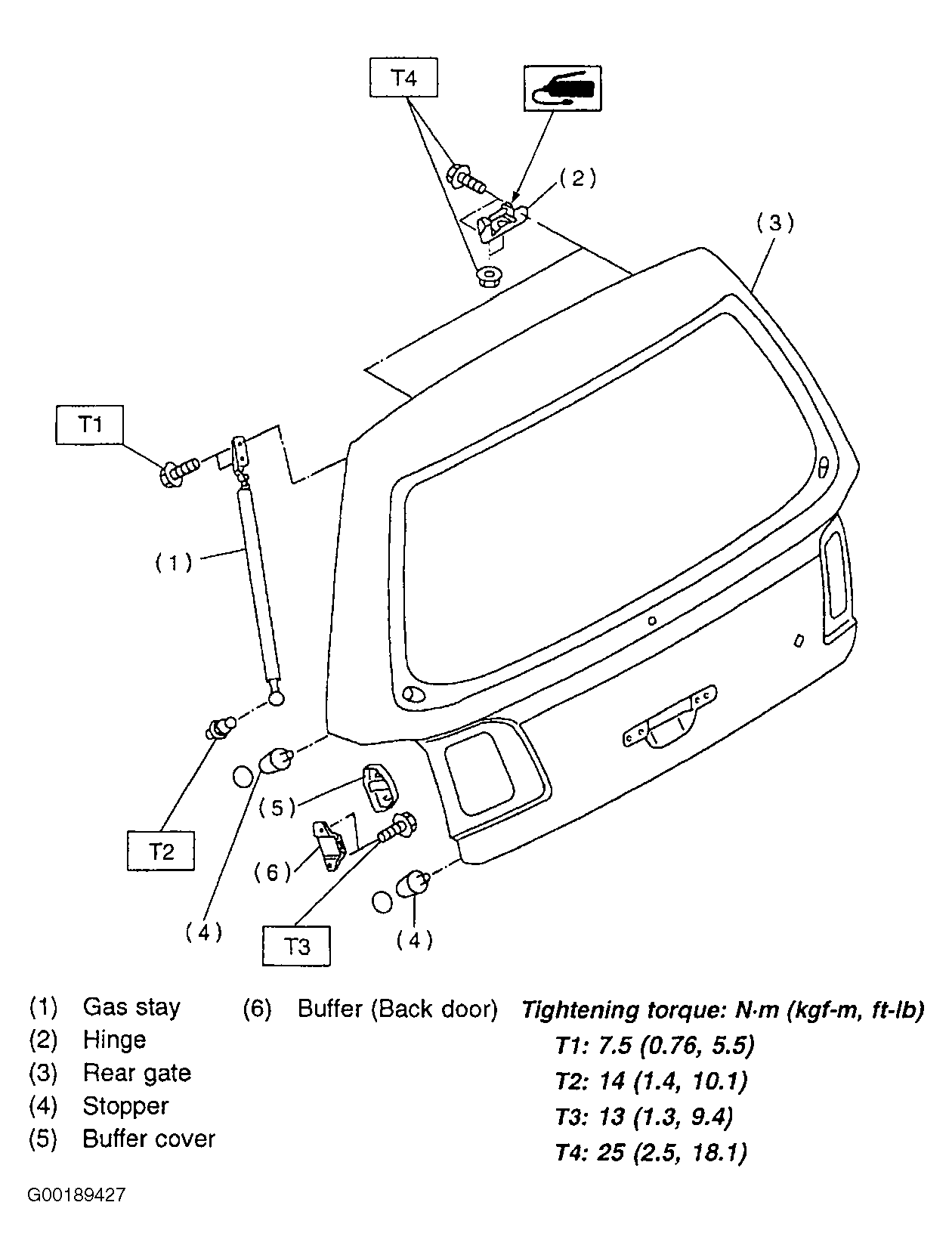

Fig 6: Locating Rear Gate Panel Components
G00189427Courtesy of SUBARU OF AMERICA, INC.
