Horn Operation Test

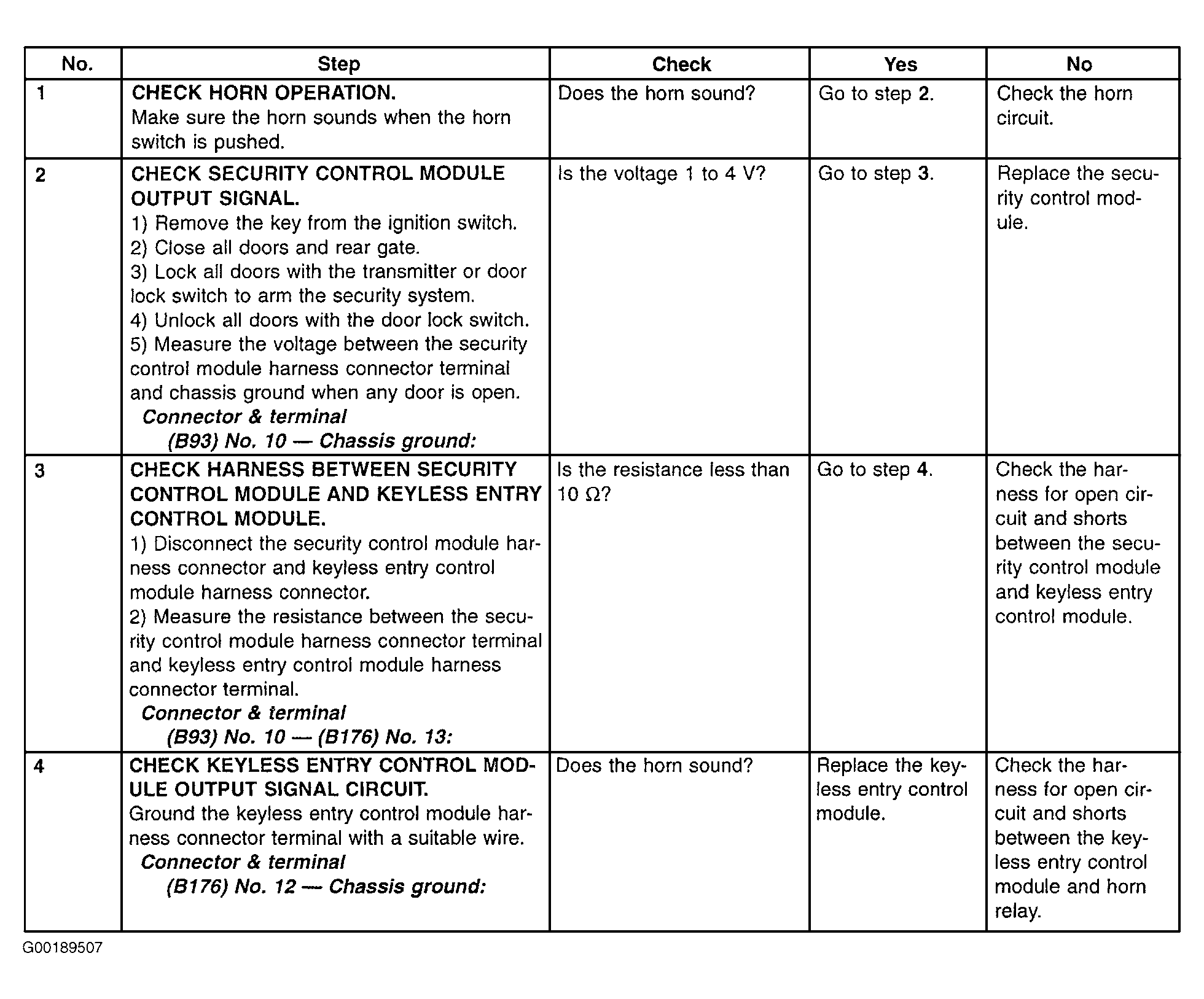

Fig 1: Horn Operation Testing Procedure
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
