Stop and Brake Switch: Inspection

Measure the brake switch (A) and stop light switch (B) resistance.

Fig 1: Measuring Stop Light Switch Resistance

Courtesy of SUBARU OF AMERICA, INC.

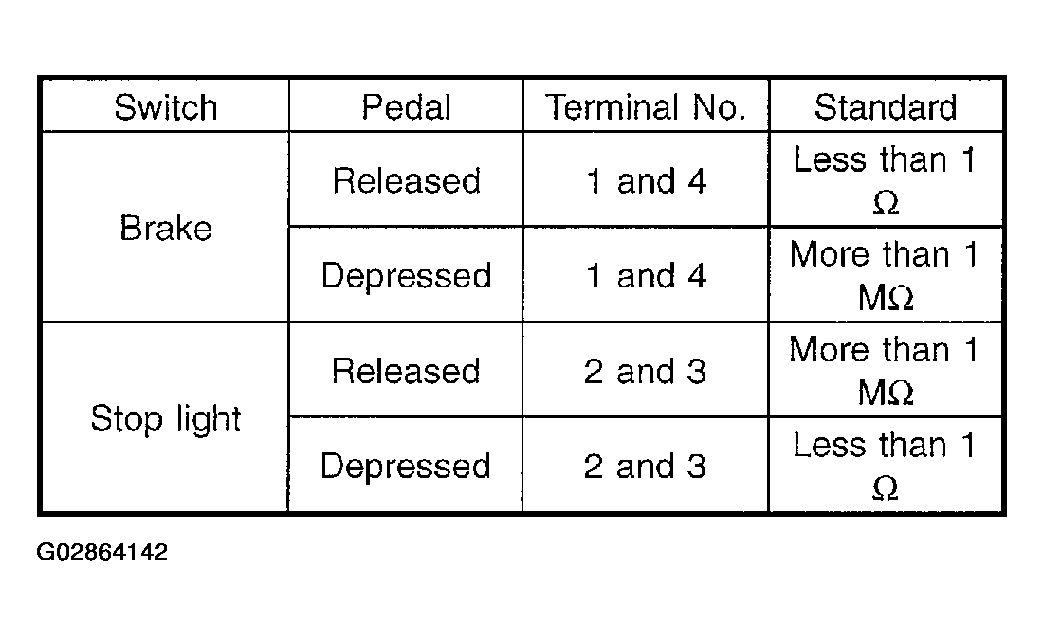

Fig 2: Stop Light Switch Resistance Chart

Courtesy of SUBARU OF AMERICA, INC.

If NG, replace stop and brake switch.
