Cruise Control Main Switch: Removal

  1. Disconnect ground cable from battery.
  2. Remove screws and clip from instrument panel lower cover.
  3. Remove panel lower cover.

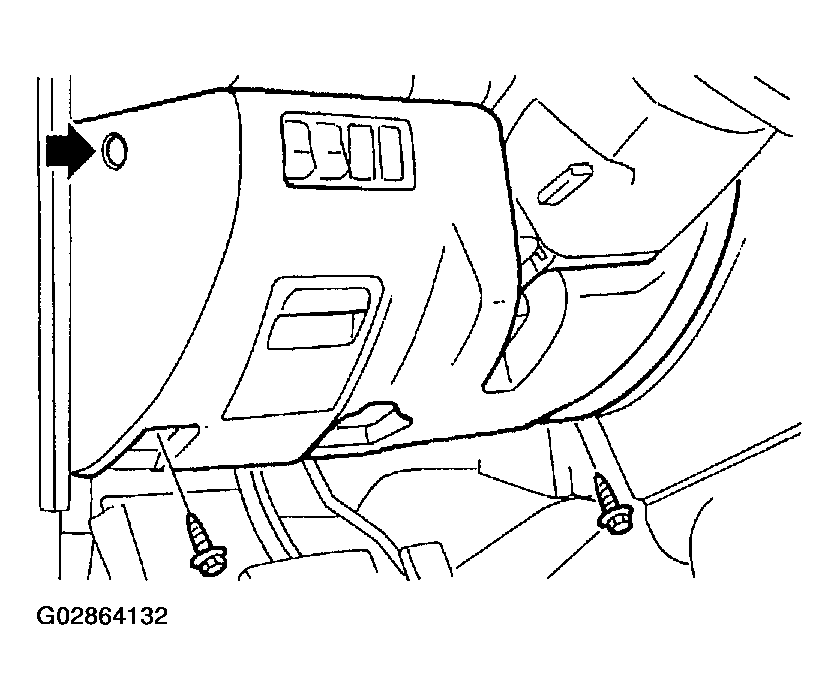

    Fig 1: Removing Panel Lower Cover
    G02864132Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect connector from cruise control main switch (A).

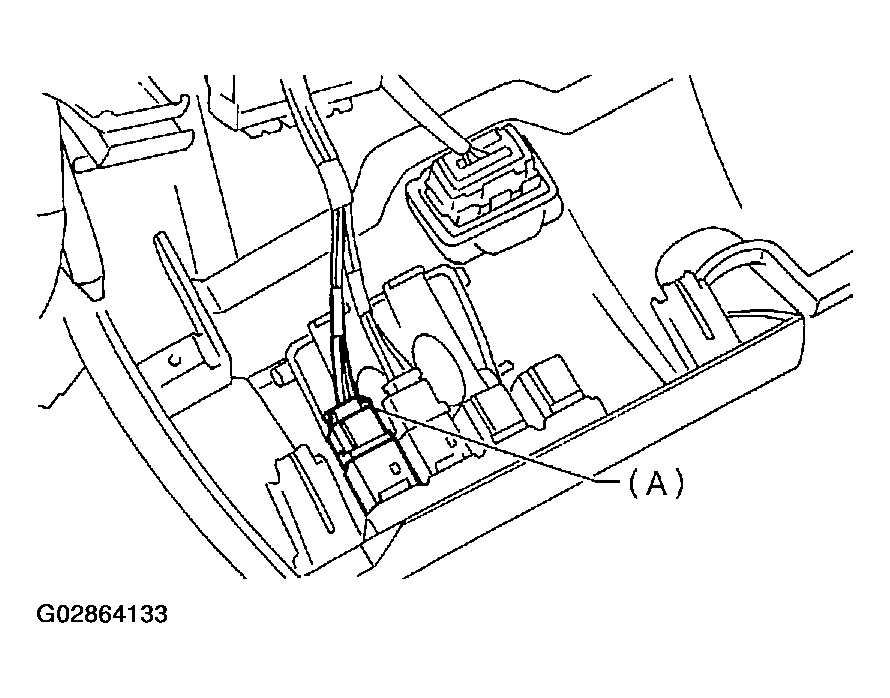

    Fig 2: Disconnecting Connector From Cruise Control Main Switch
    G02864133Courtesy of SUBARU OF AMERICA, INC.
  5. Remove main switch by pushing it outward.
    Fig 3: Removing Main Switch
    G02864134Courtesy of SUBARU OF AMERICA, INC.
