Clutch Switch: Inspection

Measure clutch switch resistance.

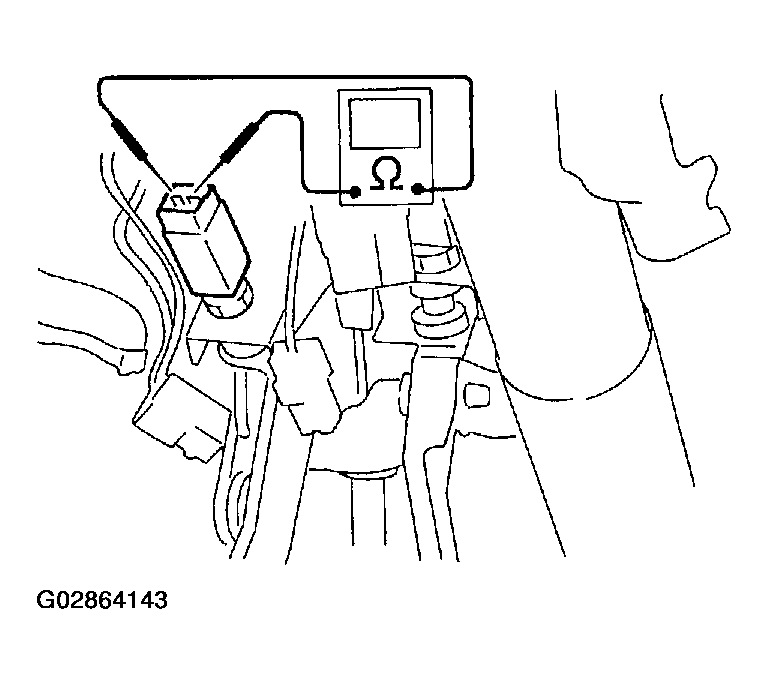

Fig 1: Measuring Clutch Switch Resistance

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Clutch Switch Resistance Chart

Courtesy of SUBARU OF AMERICA, INC.

If NG, replace clutch switch.
