Cruise Control System: Actuator: Removal

CAUTION:

Be careful not to apply excessive load to the wire cable when adjusting and/or installing; otherwise, the actuator may be deformed or damaged.
Do not bend cable sharply with a radius less than 100 mm (3.94 in); otherwise, cable may bend permanently, resulting in poor performance.
When installing cable, be careful not to sharply bend or pinch the inner cable; otherwise, the cable may break.

Disconnect ground cable from battery.

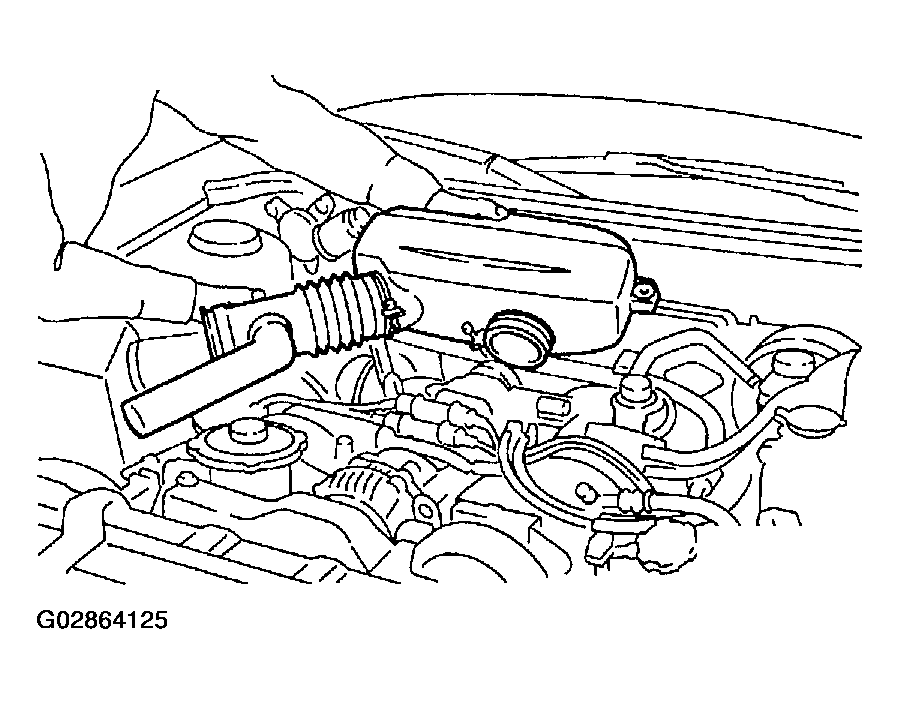

Remove air intake chamber.

Fig 1: Removing Air Intake Chamber
Courtesy of SUBARU OF AMERICA, INC.

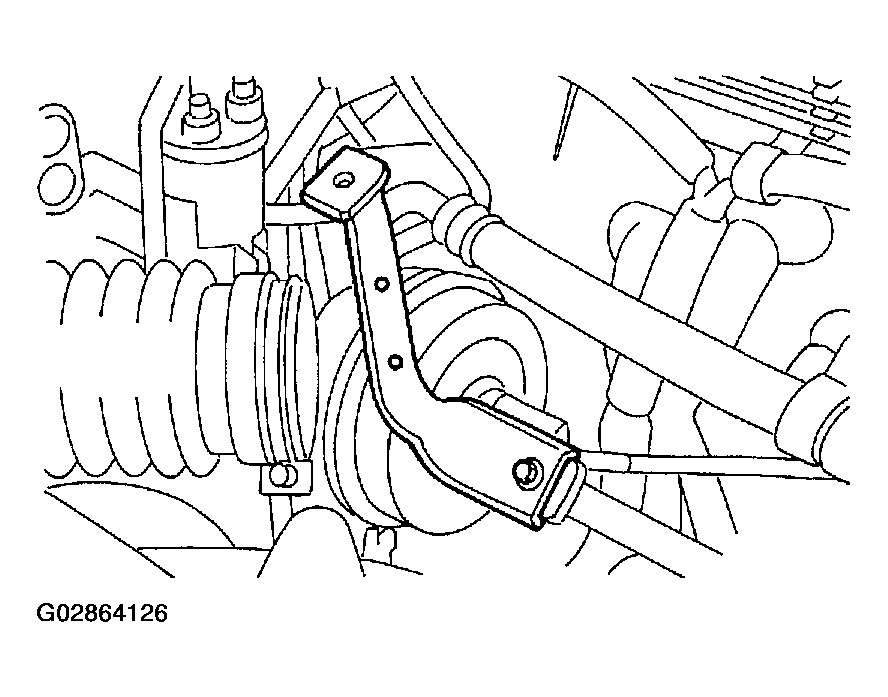

Remove air intake chamber stay.

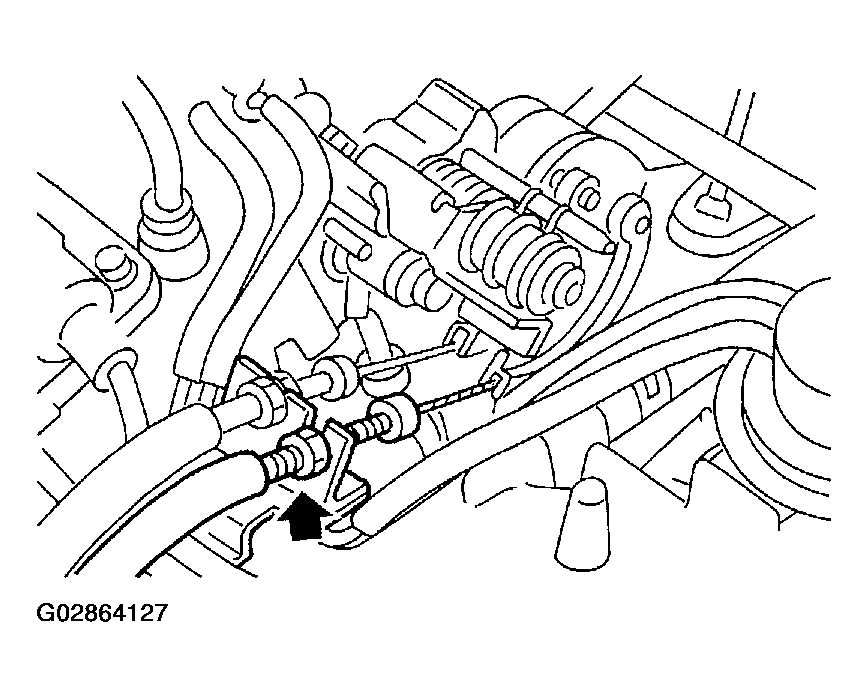

Remove clip bands from cruise control cable.

Fig 2: Removing Clip Bands From Cruise Control Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove cruise control cable end from throttle cam.

Fig 3: Removing Cruise Control Cable End From Throttle Cam
Courtesy of SUBARU OF AMERICA, INC.

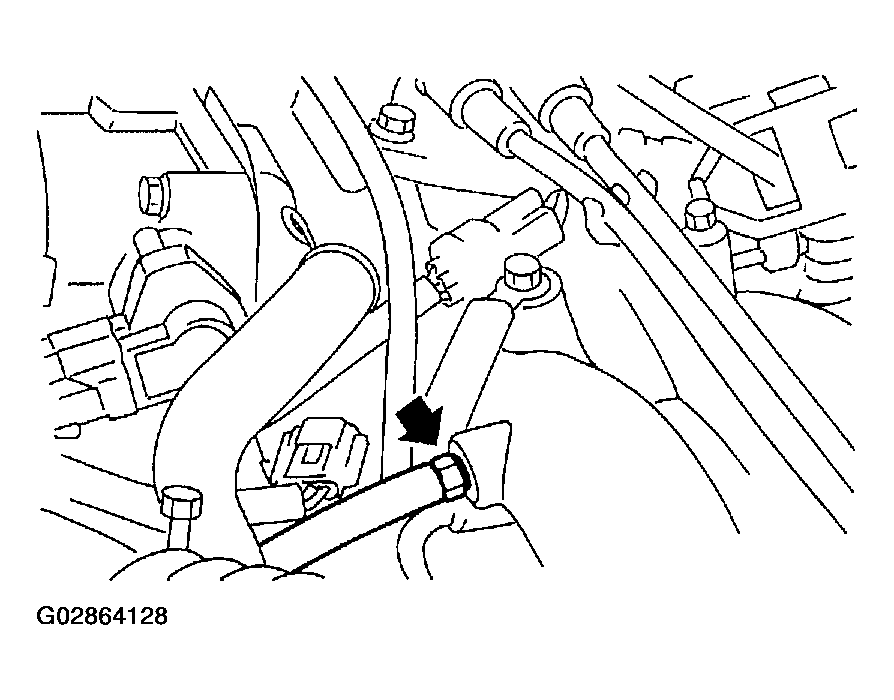

Disconnect cruise control vacuum hose from intake manifold.

Fig 4: Disconnecting Cruise Control Vacuum Hose From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.

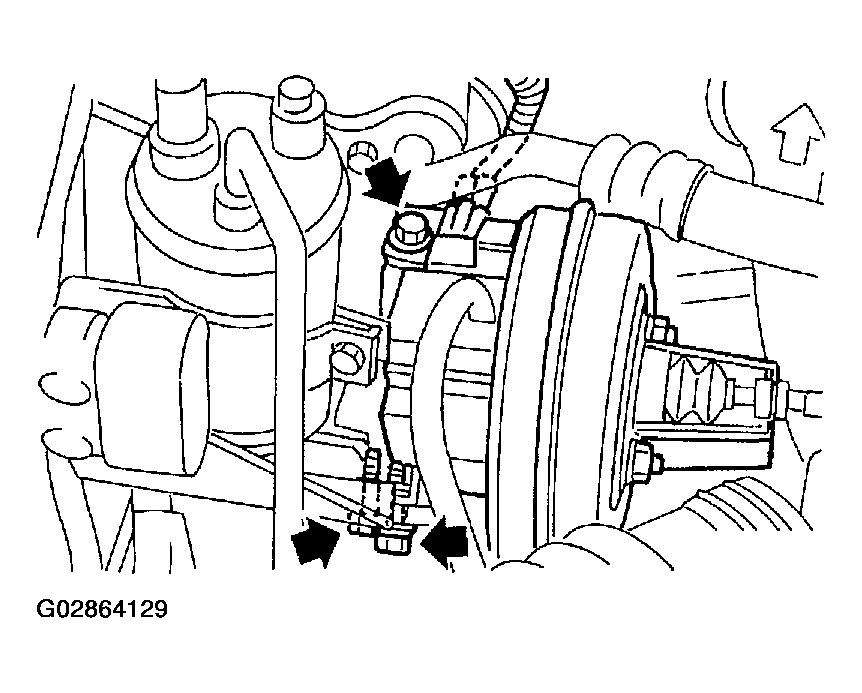

Remove actuator attaching bolts.
Disconnect the connector from the actuator, then remove the actuator.

Fig 5: Removing Actuator Attaching Bolts
Courtesy of SUBARU OF AMERICA, INC.
