Cruise Control System - Mechanism & Function: Schematic

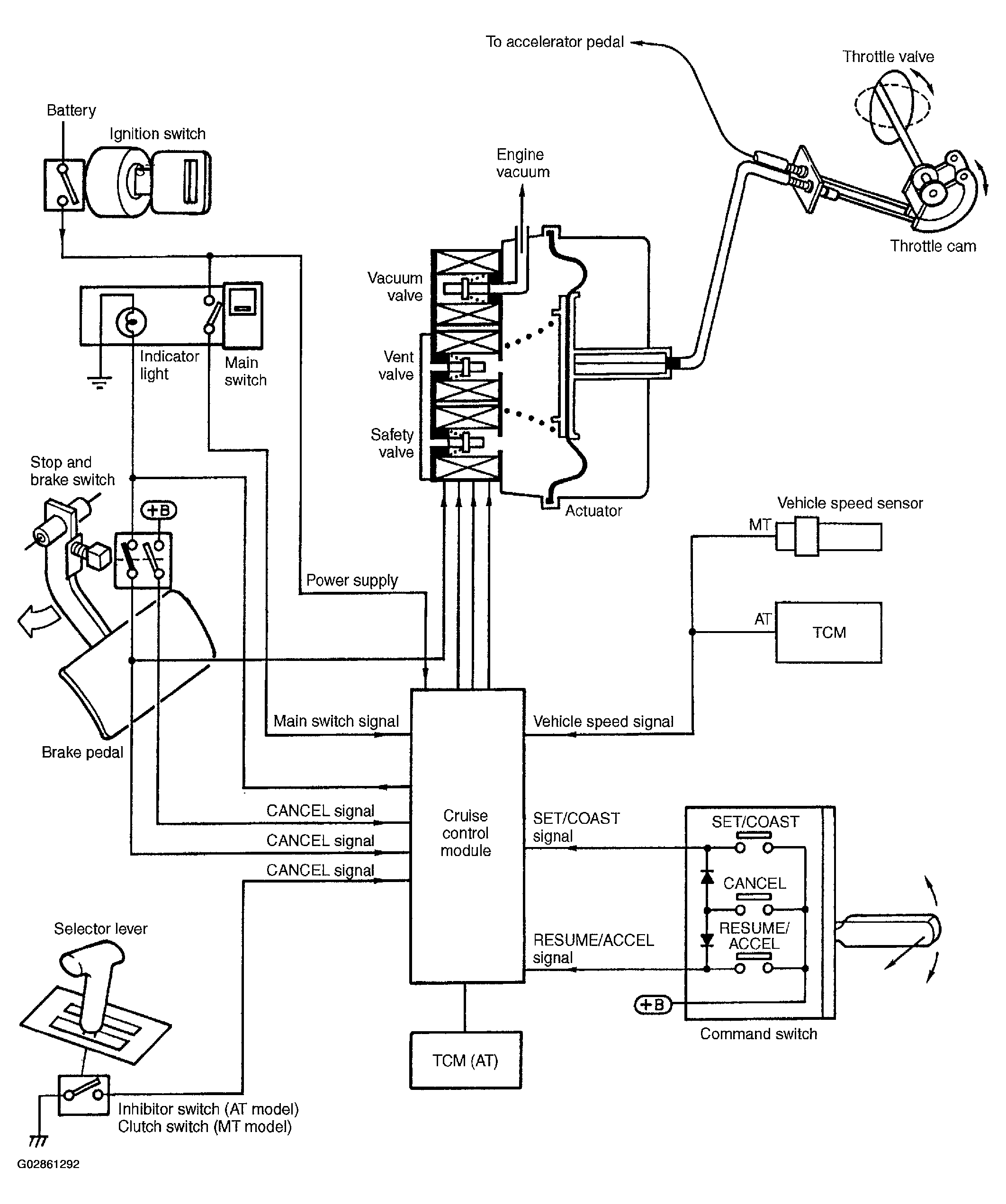

Fig 1: Cruise Control Schematic

G02861292

Courtesy of SUBARU OF AMERICA, INC.
