AT Shift Lock System: Schematic

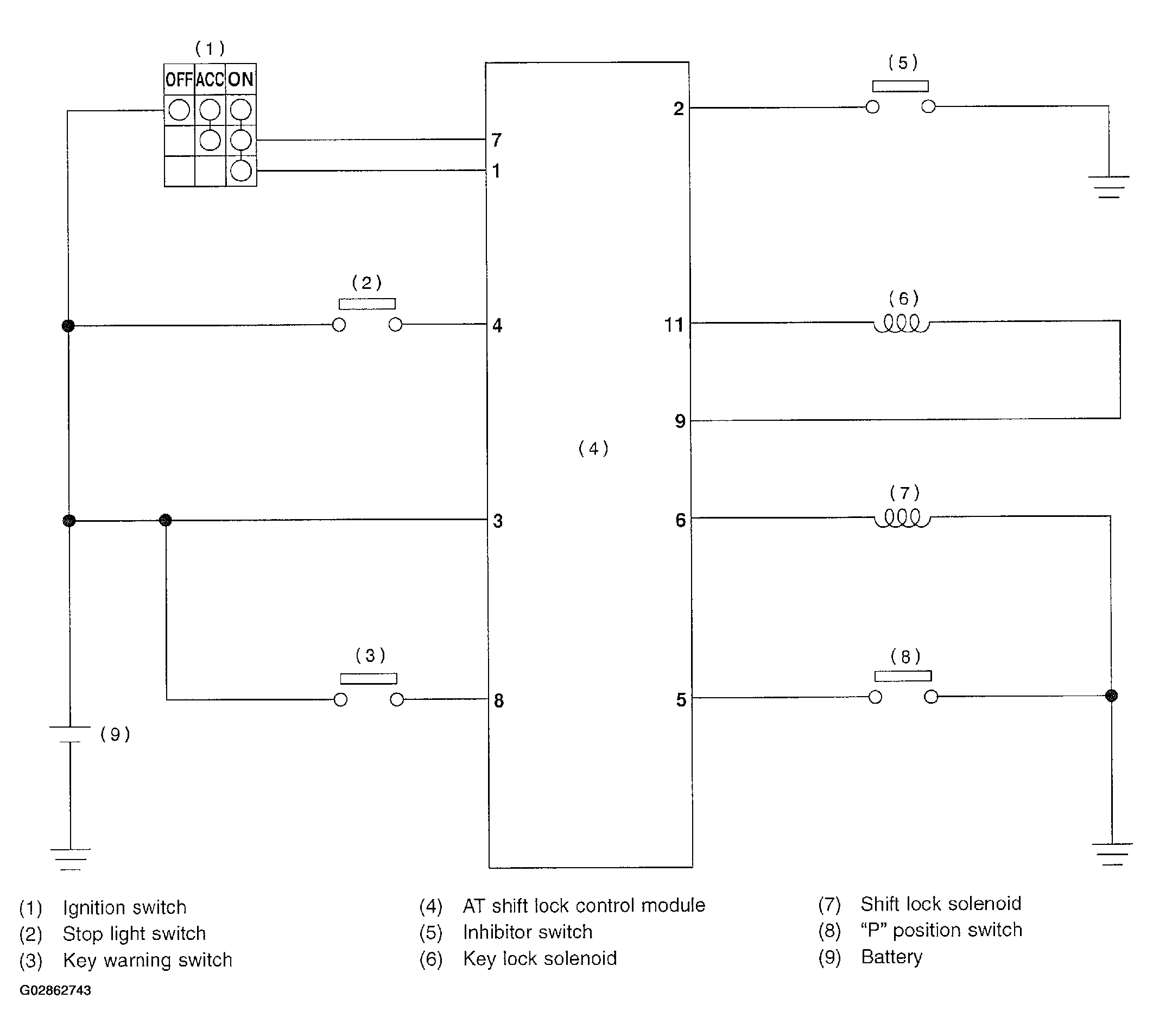

Fig 1: AT Shift Lock System Schematic Diagram

G02862743

Courtesy of SUBARU OF AMERICA, INC.
