Input Signals

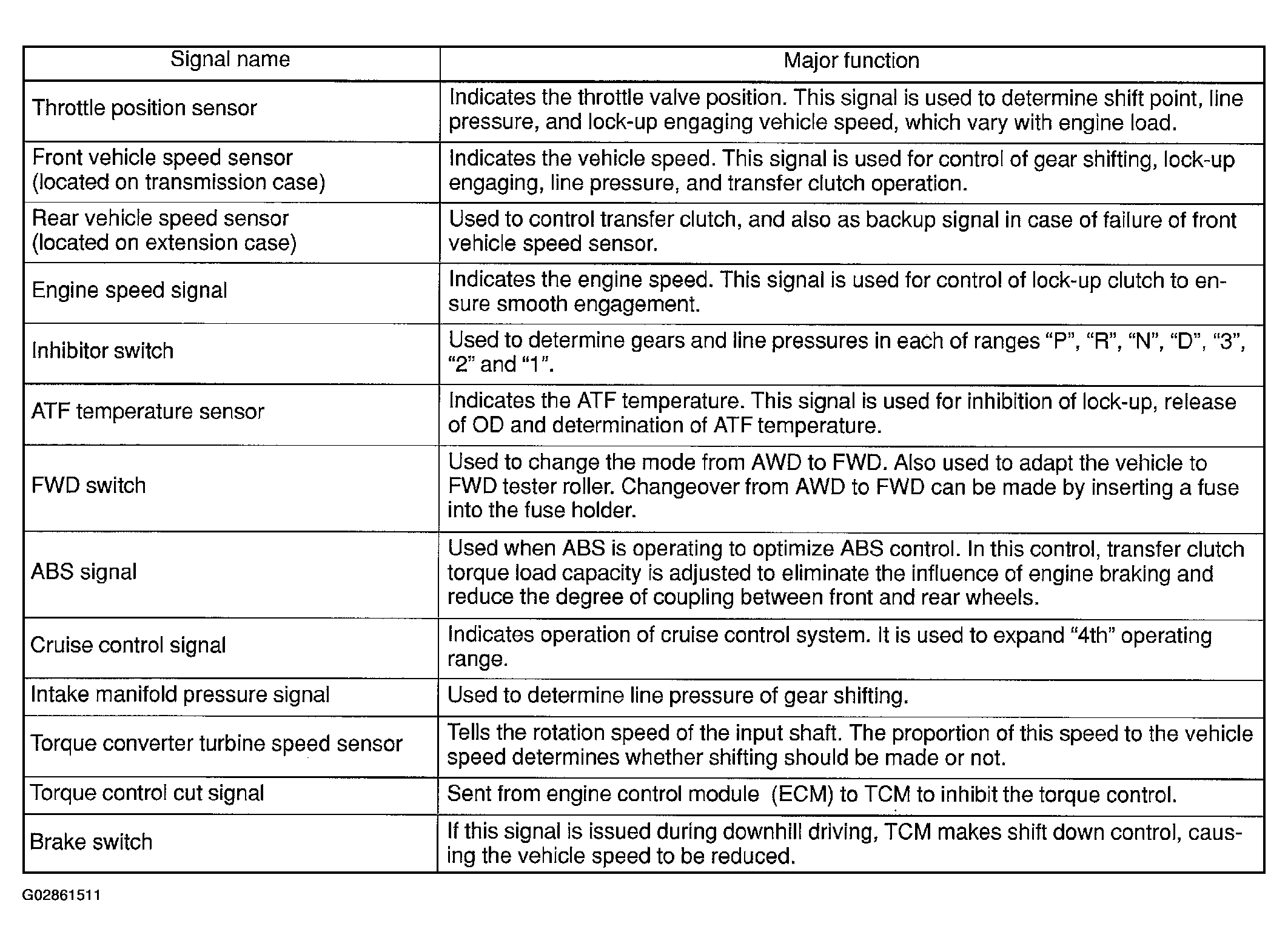

Fig 1: Electrohydraulic Control System Input Signals Chart
G02861511Courtesy of SUBARU OF AMERICA, INC.
