Transmission Control Module (TCM) I/O Signal: Schematic

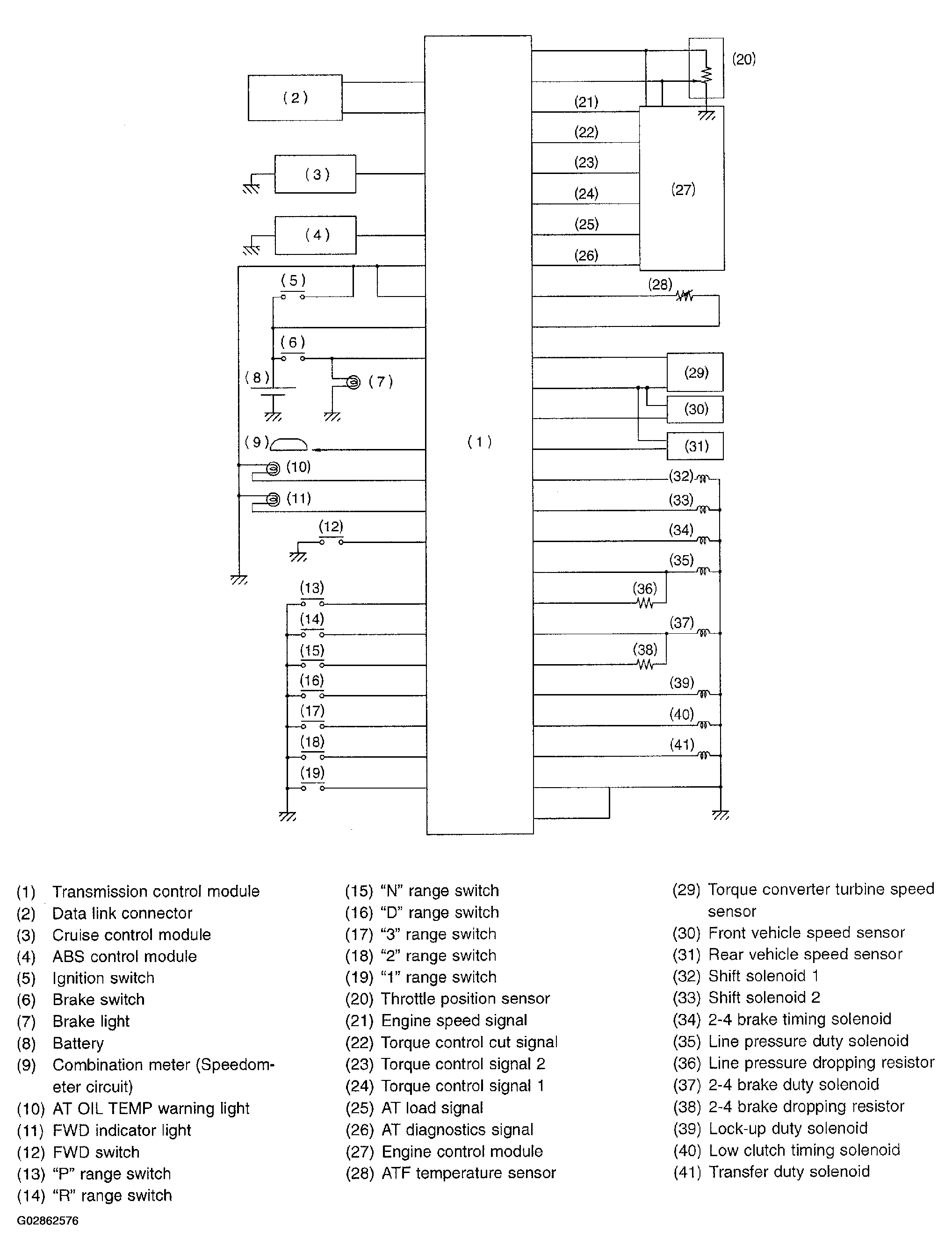

Fig 1: Transmission Control Module (TCM) I/O Signal Schematic Diagram

G02862576

Courtesy of SUBARU OF AMERICA, INC.
