Transmission Control Module (TCM) I/O Signal
>>
Electrical Specification
Electrical Specification

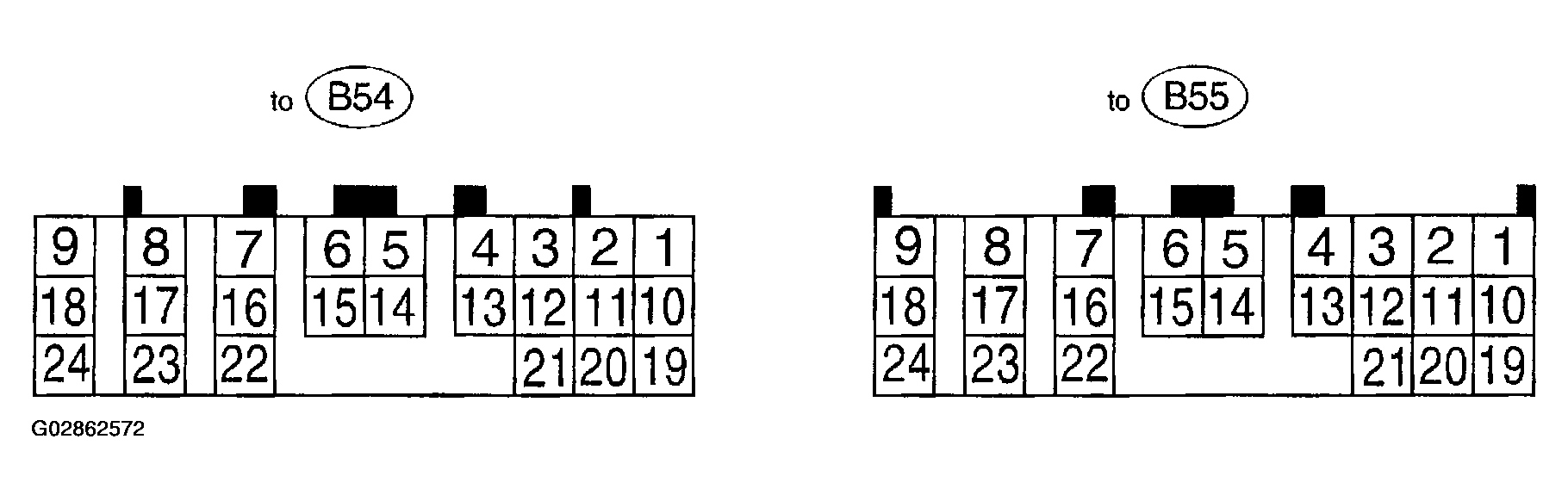

Fig 1: Identifying Transmission Control Module (TCM) I/O Signal Connector Terminals
Courtesy of SUBARU OF AMERICA, INC.

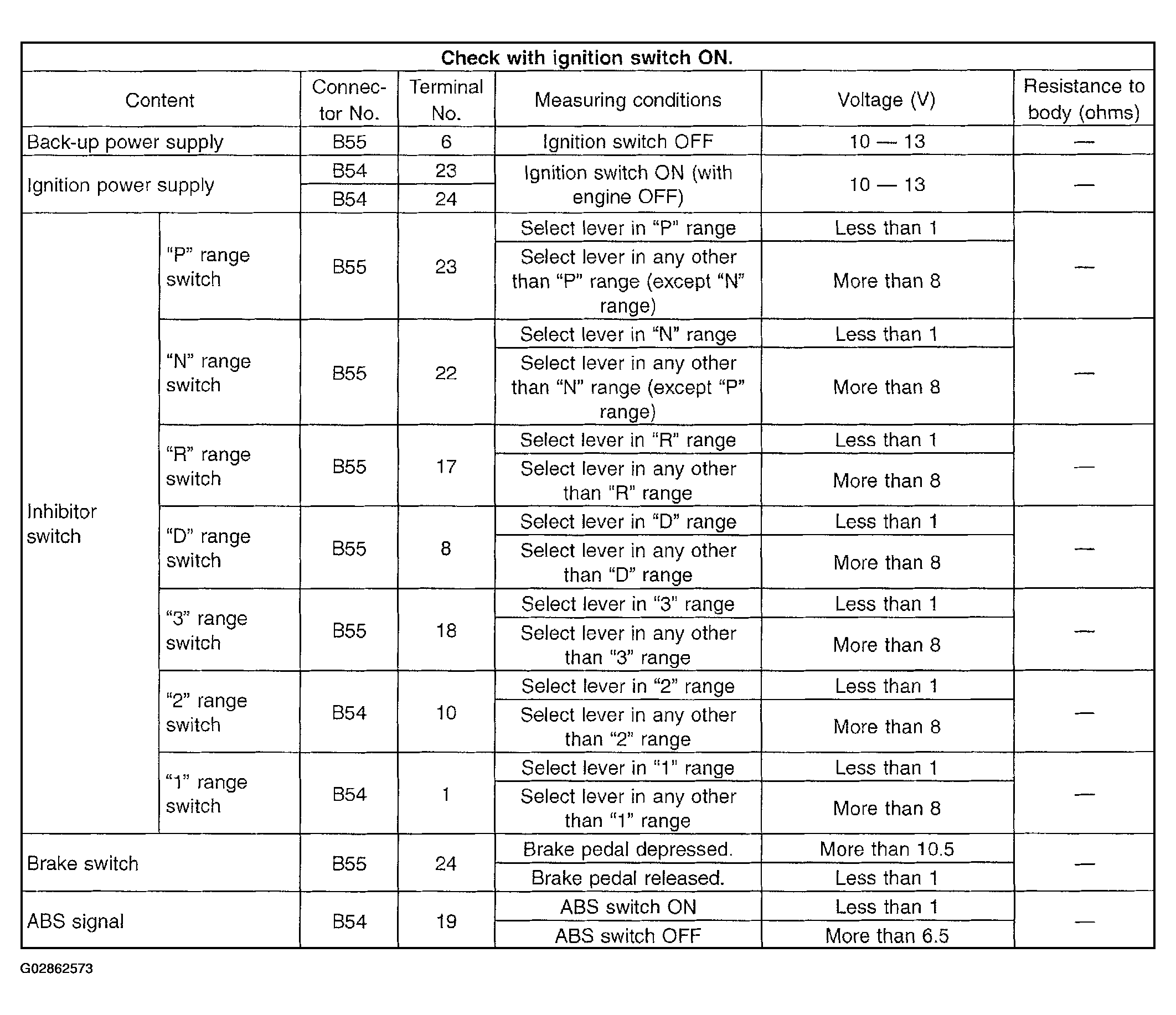

Fig 2: Transmission Control Module (TCM) I/O Signal Electrical Specification Chart (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

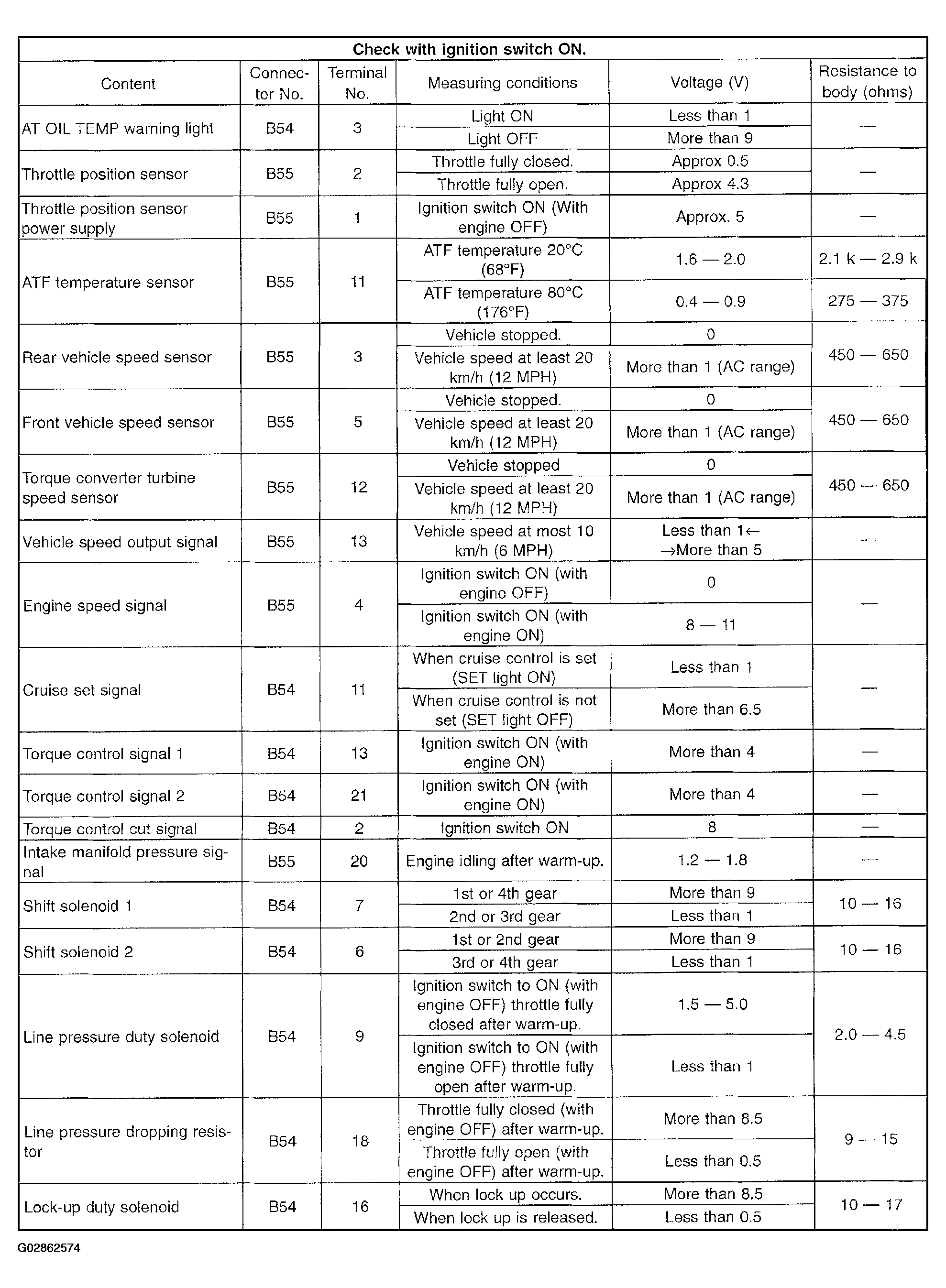

Fig 3: Transmission Control Module (TCM) I/O Signal Electrical Specification Chart (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

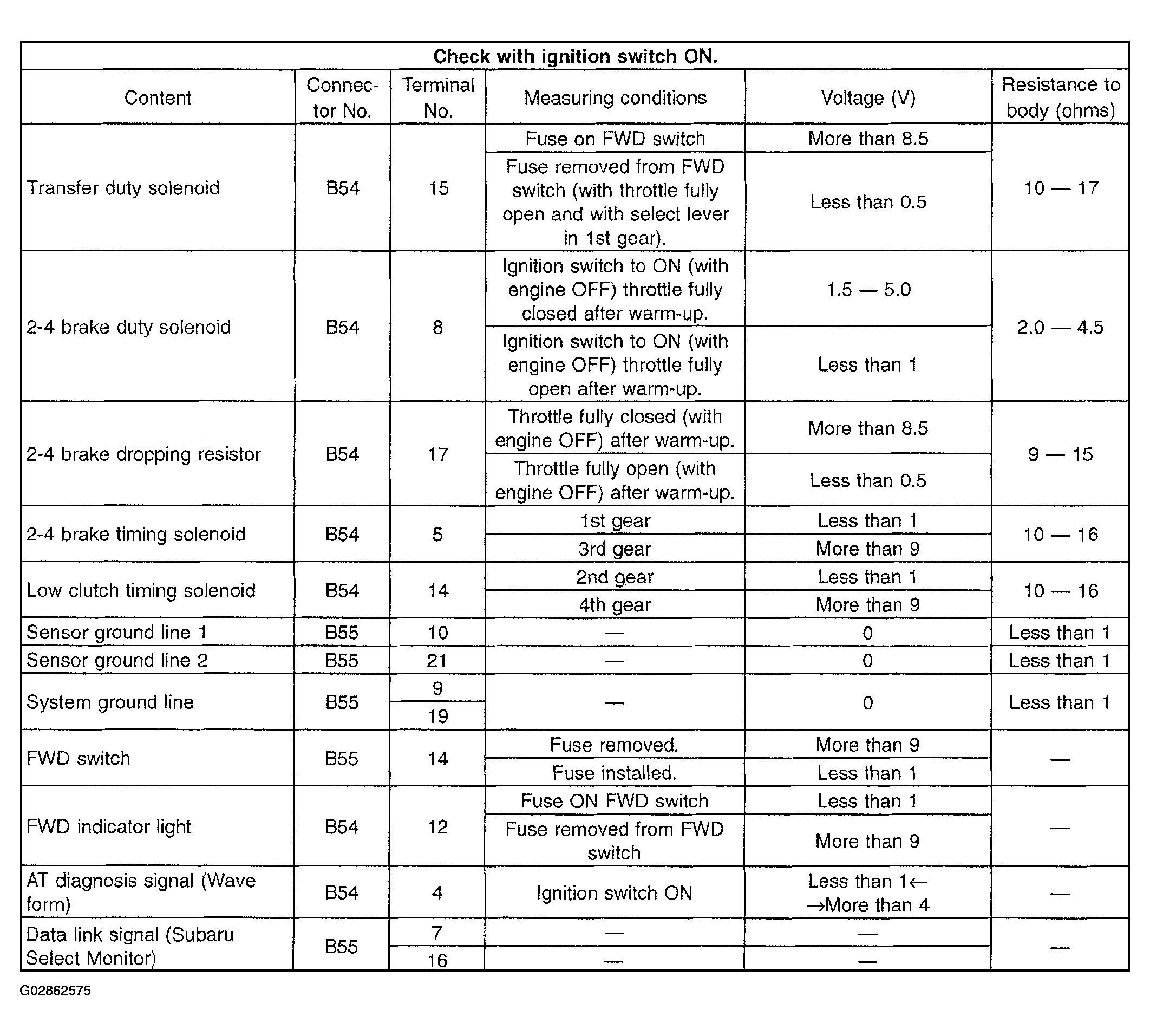

Fig 4: Transmission Control Module (TCM) I/O Signal Electrical Specification Chart (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
